Lubrication System Oil Pump With Drive

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Lubrication system Oil pump with drive

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11418623624 Oil pump $746.42 To Order
Photo Part No Description Price (each) Stock
7129905691 ISA screw $4.37 To Order
Photo Part No Description Price (each) Stock
11417549699 Hex nut $1.41 To Order
Photo Part No Description Price (each) Stock
11417583667 Oil pipe inlet $71.67 To Order
Photo Part No Description Price (each) Stock
11421741129 O-ring $4.87 To Order
Photo Part No Description Price (each) Stock
11417584785 O-ring $4.87 To Order
Photo Part No Description Price (each) Stock
11417583668 Oil pipe $57.35 To Order
Photo Part No Description Price (each) Stock
11421713597 O-ring $4.87 To Order
Photo Part No Description Price (each) Stock
11418623630 Suction pipe $172.82 To Order
Photo Part No Description Price (each) Stock
11418658512 O-ring $4.87 To Order
Photo Part No Description Price (each) Stock
11438635693 Control line $71.67 To Order
Photo Part No Description Price (each) Stock
7129904819 Torx-bolt with washer $1.23 IN STOCK
Photo Part No Description Price (each) Stock
11428627197 Hollow bolt $7.75 To Order
11429847270 Hollow bolt $12.59 To Order
Photo Part No Description Price (each) Stock
7119963072 Gasket ring $0.44 To Order
Photo Part No Description Price (each) Stock
11417568820 Sprocket $77.89 To Order
Photo Part No Description Price (each) Stock
11417555245 Hex nut $1.41 To Order
Photo Part No Description Price (each) Stock
11417572531 Chain Enquire To Order
11415A19C97 Chain $99.12 To Order
Photo Part No Description Price (each) Stock
11417641097 Hex Bolt $4.70 To Order
View All

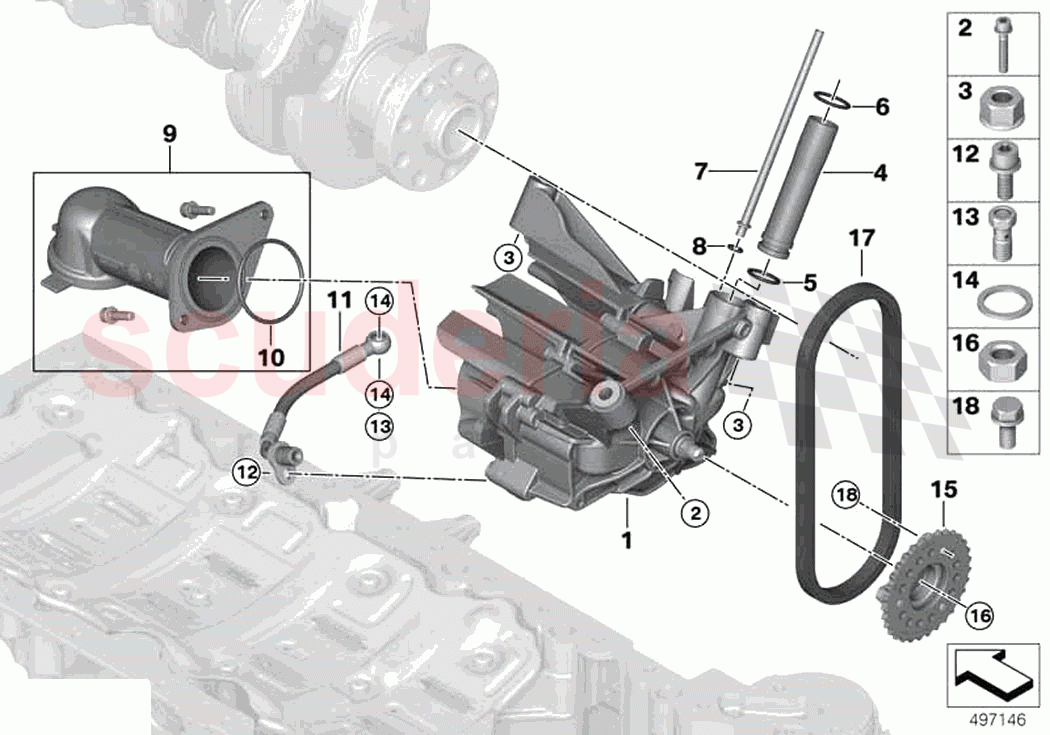

Lubrication system Oil pump with drive of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 11418623624
Oil pump 		$746.42 1
02 7129905691
ISA screw
M8X45 ZNNIV SI 		$4.37 1
03 11417549699
Hex nut 		$1.41 2
04 11417583667
Oil pipe inlet 		$71.67 1
05 11421741129
O-ring
18,0X2,5MM 		$4.87 1
06 11417584785
O-ring
20,5X2,5MM 		$4.87 1
07 11417583668
Oil pipe 		$57.35 1
08 11421713597
O-ring
6,0X2,5 		$4.87 1
09 11418623630
Suction pipe 		$172.82 1
10 11418658512
O-ring 		$4.87 1
11 11438635693
Control line 		$71.67 1
12 7129904819
Torx-bolt with washer
M6X16-8.8-ZNNIV
IN STOCK 		$1.23 1
13 11428627197
Hollow bolt
M10; from 11.2020 		$7.75 1
13 11429847270
Hollow bolt
M10 		$12.59 1
14 7119963072
Gasket ring
A10X13,5-CU 		$0.44 2
15 11417568820
Sprocket 		$77.89 1
16 11417555245
Hex nut
M10 		$1.41 1
17 11417572531
Chain
from 02.2021 		- 1 Enquire
17 11415A19C97
Chain 		$99.12 1
18 11417641097
Hex Bolt 		$4.70 3
