Main Wiring

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 08603

Find Your Part

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - MAIN WIRING (08603)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053842 CABLE SERVICE ENGINE $227.55 To Order
Photo Part No Description Price (each) Stock
670053322 BRACKET $48.71 To Order
Photo Part No Description Price (each) Stock
670053460 BRACKET $23.39 To Order
Photo Part No Description Price (each) Stock
670050339 CLIP $11.94 To Order
Photo Part No Description Price (each) Stock
670050338 CLIP $13.99 To Order
Photo Part No Description Price (each) Stock
670050339 CLIP $11.94 To Order
Photo Part No Description Price (each) Stock
670051106 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670173072 BRACKET $31.96 To Order
Photo Part No Description Price (each) Stock
670053863 BRACKET Enquire To Order
View All

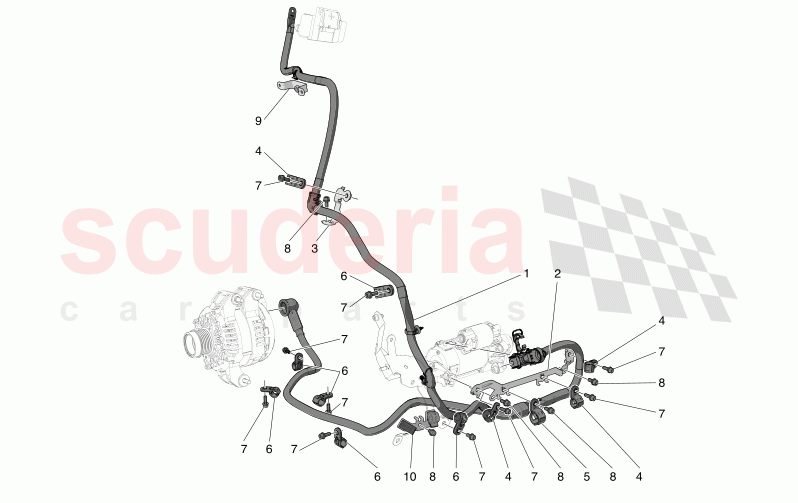

MAIN WIRING of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053842
CABLE SERVICE ENGINE 		$227.55 1
2 670053322
BRACKET 		$48.71 1
3 670053460
BRACKET 		$23.39 1
4 670050339
CLIP 		$11.94 4
5 670050338
CLIP 		$13.99 1
6 670050339
CLIP 		$11.94 6
7 670051106
SCREW 		$2.47 11
8 670051104
SCREW 		$2.47 5
9 670173072
BRACKET 		$31.96 1
10 670053863
BRACKET 		- 1 Enquire
