Cooling System: Nourice And Lines

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Find Your Part

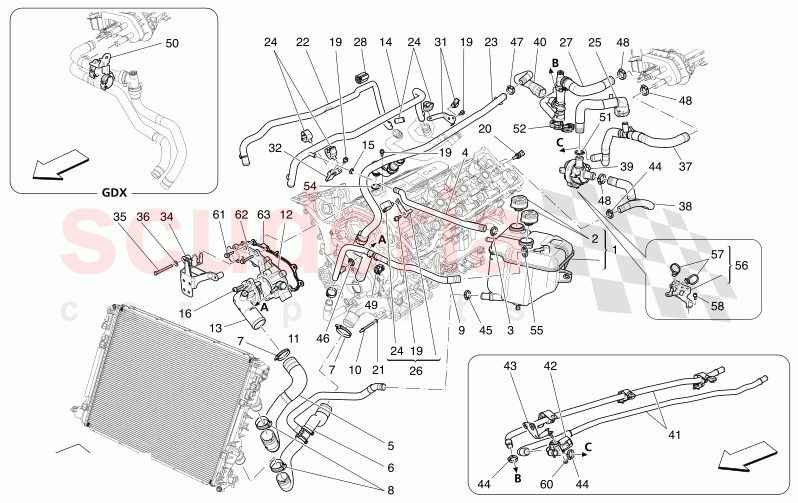

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - COOLING SYSTEM: NOURICE AND LINES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670031651 ENGINE COOLANT RESERVOIR $109.83 IN STOCK
Photo Part No Description Price (each) Stock
670003408 HEADER TANK CAP $15.73 IN STOCK
Photo Part No Description Price (each) Stock
675000344 STRAP COLLAR D.17 $2.75 To Order
Photo Part No Description Price (each) Stock
670031952 SECONDARY VENT PIPE $9.77 IN STOCK
Photo Part No Description Price (each) Stock
670031948 RADIATOR WATER INLET PIPE $36.02 To Order
Photo Part No Description Price (each) Stock
670104916 WATER OUTLET SLEEVE $68.83 IN STOCK
Photo Part No Description Price (each) Stock
11417670 HOSE SCREW COLLAR D.30-45 $11.15 IN STOCK
Photo Part No Description Price (each) Stock
675000345 SCREW COLLAR D.58 $4.31 IN STOCK
Photo Part No Description Price (each) Stock
670031951 MAIN VENT PIPE $44.99 IN STOCK
Photo Part No Description Price (each) Stock
227281 STUD $20.13 To Order
Photo Part No Description Price (each) Stock
262109 COLLAR $2.60 To Order
Photo Part No Description Price (each) Stock
326846 CPL. CROSSOVER $317.56 To Order
291773 CPL. CROSSOVER $593.51 To Order
Photo Part No Description Price (each) Stock
330424 THERMOSTAT $108.00 To Order
Photo Part No Description Price (each) Stock
882497 SECONDARY WATER PIPE $55.08 To Order
Photo Part No Description Price (each) Stock
675000373 STRAP COLLAR D.12.5 $2.19 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.88 IN STOCK
Photo Part No Description Price (each) Stock
231616 SCREWM6X14 $2.33 To Order
Photo Part No Description Price (each) Stock
180137 WATER TEMPERATURE SENSOR $42.92 IN STOCK
Photo Part No Description Price (each) Stock
675000106 WASHER $1.82 To Order
Photo Part No Description Price (each) Stock
296492 SECONDARY WATER PIPE $62.19 To Order
Photo Part No Description Price (each) Stock
333706 WATER RETURN PIPE FROM OIL EXCHANGER $295.50 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $1.92 To Order
Photo Part No Description Price (each) Stock
670035398 HEATER WATER DELIVERY SLEEVE $41.83 To Order
670101987 HEATER WATER DELIVERY SLEEVE $317.56 To Order
Photo Part No Description Price (each) Stock
292354 BRACKET ASSEMBLY $20.98 To Order
Photo Part No Description Price (each) Stock
670035535 WATER RETURN SLEEVE FROM HEATER $80.69 To Order
670101989 WATER RETURN SLEEVE FROM HEATER $250.77 To Order
Photo Part No Description Price (each) Stock
298362 RUBBER $7.37 To Order
Photo Part No Description Price (each) Stock
300867 BRACKET $226.76 To Order
Photo Part No Description Price (each) Stock
287986 BRACKET $99.74 To Order
Photo Part No Description Price (each) Stock
834094 BRACKET $75.14 To Order
Photo Part No Description Price (each) Stock
10903424 SCREWM6X45 $2.74 To Order
Photo Part No Description Price (each) Stock
14498824 WASHERD.6.4-16.3X1 $1.92 To Order
Photo Part No Description Price (each) Stock
670035399 WATER SLEEVE $186.16 To Order
670101988 WATER SLEEVE $160.97 To Order
Photo Part No Description Price (each) Stock
670030176 WATER PIPE $41.51 To Order
Photo Part No Description Price (each) Stock
670002071 WATER RECYCLING PUMP $199.29 To Order
Photo Part No Description Price (each) Stock
670101984 WATER SLEEVE $39.76 To Order
670101990 WATER SLEEVE $160.97 To Order
Photo Part No Description Price (each) Stock
670031850 REAR WATER PIPE $285.80 To Order
Photo Part No Description Price (each) Stock
670002070 ON/OFF SOLENOID VALVE $154.38 To Order
Photo Part No Description Price (each) Stock
670002637 SOLENOID VALVE BRACKET $18.56 To Order
Photo Part No Description Price (each) Stock
670030327 COLLAR $2.74 To Order
Photo Part No Description Price (each) Stock
675000658 SNAP HOSE CLAMP $6.32 IN STOCK
Photo Part No Description Price (each) Stock
675000757 COLLAR $1.36 IN STOCK
Photo Part No Description Price (each) Stock
675000352 HOSE ELASTIC COLLAR D.23 $3.92 IN STOCK
Photo Part No Description Price (each) Stock
675000334 COLLAR D.23,5 $2.90 IN STOCK
Photo Part No Description Price (each) Stock
675000019 RETAINING CLIP $1.35 IN STOCK
Photo Part No Description Price (each) Stock
670101991 BRACKET ASSEMBLY $23.75 To Order
Photo Part No Description Price (each) Stock
670030325 COLLAR $2.42 To Order
Photo Part No Description Price (each) Stock
670005922 RETAINING CLIP $3.43 To Order
Photo Part No Description Price (each) Stock
282370 O.R. GASKET $2.81 IN STOCK
Photo Part No Description Price (each) Stock
675001916 COLLAR $1.98 IN STOCK
Photo Part No Description Price (each) Stock
303269 BRACKET ASSEMBLY $24.11 To Order
Photo Part No Description Price (each) Stock
10901087 CLAMP $4.08 To Order
Photo Part No Description Price (each) Stock
231616 SCREWM6X14 $2.33 To Order
Photo Part No Description Price (each) Stock
670006983 NUT $1.92 To Order
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.88 IN STOCK
291776 SCREWM6X25 $4.39 To Order
Photo Part No Description Price (each) Stock
231624 SCREWM6X45 $3.15 To Order
291771 SCREW M6 X 45 $22.68 IN STOCK
Photo Part No Description Price (each) Stock
280912 GASKET $21.92 IN STOCK
COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670031651
ENGINE COOLANT RESERVOIR
IN STOCK 		$109.83 1
IN
2 670003408
HEADER TANK CAP
IN STOCK 		$15.73 2
IN
3 675000344
STRAP COLLAR D.17 		$2.75 1
TO
4 670031952
SECONDARY VENT PIPE
IN STOCK 		$9.77 1
IN
5 670031948
RADIATOR WATER INLET PIPE 		$36.02 1
TO
6 670104916
WATER OUTLET SLEEVE
Bespoke Assembly Number 6053787 - 99999999;
IN STOCK 		$68.83 1
IN
7 11417670
HOSE SCREW COLLAR D.30-45
IN STOCK 		$11.15 2
IN
8 675000345
SCREW COLLAR D.58
IN STOCK 		$4.31 2
IN
9 670031951
MAIN VENT PIPE
FOR ENGINE SERIAL NUMBER INCLUDED BETWEEN 441894 AND 473146 RANGE, PLEASE ORDER PN 670001322; Bespoke Assembly Number 6079400 - 99999999;
IN STOCK 		$44.99 1
IN
10 227281
STUD 		$20.13 1
TO
11 262109
COLLAR 		$2.60 1
TO
12 326846
CPL. CROSSOVER
PLASTIC - NOT INCLUDED WITH CPL TIMING COVER  321255 AND 878658, PLEASE ORDER SEPARATELY; Bespoke Engine Number 441894 - 473146; 		$317.56 1
TO
12 291773
CPL. CROSSOVER
ALUMINUM - INCLUDED WITH THE TIMING COVER, TABLE 1.24; Bespoke Engine Number 0 - 441893; 		$593.51 1
TO
13 330424
THERMOSTAT 		$108.00 1
TO
14 882497
SECONDARY WATER PIPE
Bespoke Engine Number 553174 - ZZZZZZZZ; 		$55.08 1
TO
15 675000373
STRAP COLLAR D.12.5
IN STOCK 		$2.19 1
IN

231620

SCREW M6 X 25

from $1.88

231616

SCREWM6X14

from $2.33

20 180137
WATER TEMPERATURE SENSOR
IN STOCK 		$42.92 1
IN
21 675000106
WASHER 		$1.82 1
TO
22 296492
SECONDARY WATER PIPE 		$62.19 1
TO
23 333706
WATER RETURN PIPE FROM OIL EXCHANGER
Bespoke Assembly Number 6035538 - 99999999; 		$295.50 1
TO
24 259508
CLIP 		$1.92 5
TO
25 670035398
HEATER WATER DELIVERY SLEEVE
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; EU CN US CD JP ME KO; 		$41.83 1
TO
25 670101987
HEATER WATER DELIVERY SLEEVE
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$317.56 1
TO
26 292354
BRACKET ASSEMBLY 		$20.98 1
TO
27 670035535
WATER RETURN SLEEVE FROM HEATER
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; EU CN US CD JP ME KO; 		$80.69 1
TO
27 670101989
WATER RETURN SLEEVE FROM HEATER
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$250.77 1
TO
28 298362
RUBBER 		$7.37 1
TO
31 300867
BRACKET 		$226.76 1
TO
32 287986
BRACKET 		$99.74 1
TO
34 834094
BRACKET 		$75.14 1
TO
35 10903424
SCREWM6X45 		$2.74 2
TO
36 14498824
WASHERD.6.4-16.3X1 		$1.92 2
TO
37 670035399
WATER SLEEVE
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; EU CN US CD JP ME KO; 		$186.16 1
TO
37 670101988
WATER SLEEVE
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$160.97 1
TO
38 670030176
WATER PIPE
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$41.51 1
TO
39 670002071
WATER RECYCLING PUMP
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$199.29 1
TO
40 670101984
WATER SLEEVE
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; EU CN US CD JP ME KO; 		$39.76 1
TO
40 670101990
WATER SLEEVE
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$160.97 1
TO
41 670031850
REAR WATER PIPE
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$285.80 1
TO
42 670002070
ON/OFF SOLENOID VALVE
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$154.38 1
TO
43 670002637
SOLENOID VALVE BRACKET 		$18.56 1
TO
44 670030327
COLLAR
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$2.74 3
TO
45 675000658
SNAP HOSE CLAMP
IN STOCK 		$6.32 1
IN
46 675000757
COLLAR
IN STOCK 		$1.36 1
IN
47 675000352
HOSE ELASTIC COLLAR D.23
Available with: FOUR-ZONE AUTOMATIC CLIMA ;
IN STOCK 		$3.92 1
IN
48 675000334
COLLAR D.23,5
Available with: FOUR-ZONE AUTOMATIC CLIMA ;
IN STOCK 		$2.90 2
IN
49 675000019
RETAINING CLIP
Available with: FOUR-ZONE AUTOMATIC CLIMA ;
IN STOCK 		$1.35 1
IN
50 670101991
BRACKET ASSEMBLY
Bespoke Assembly Number 6035538 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$23.75 1
TO
51 670030325
COLLAR
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$2.42 1
TO
52 670005922
RETAINING CLIP
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$3.43 1
TO
54 282370
O.R. GASKET
IN STOCK 		$2.81 1
IN
55 675001916
COLLAR
IN STOCK 		$1.98 1
IN
56 303269
BRACKET ASSEMBLY 		$24.11 1
TO
57 10901087
CLAMP 		$4.08 2
TO
60 670006983
NUT
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$1.92 4
TO
61 291776
SCREWM6X25
NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773; 		$4.39 4
TO
62 231624
SCREWM6X45
INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER); Bespoke Engine Number 441894 - 473146; 		$3.15 7
TO
62 291771
SCREW M6 X 45
NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773;
IN STOCK 		$22.68 7
IN
63 280912
GASKET
ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 - NOT INCLUDED, ORDER SEPARATELY;
IN STOCK 		$21.92 1
IN
