Front Structural Frames And Sheet Panels

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 09031

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - FRONT STRUCTURAL FRAMES AND SHEET PANELS (09031)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673007200 FRONT CROSS MEMBER $613.22 To Order
Photo Part No Description Price (each) Stock
670175518 RH BRACKET $41.25 IN STOCK
Photo Part No Description Price (each) Stock
673009228 R.H. COMPLETE FRONT STRUT $2,771.56 To Order
673010951 RH COMPLETE FRONT STRUT $2,479.19 To Order
Photo Part No Description Price (each) Stock
673005729 COMPLETE RH UPPER STRUT BOX SECTION $187.25 IN STOCK
Photo Part No Description Price (each) Stock
675000469 SCREWM8 $1.41 IN STOCK
Photo Part No Description Price (each) Stock
673010873 RH UPPER STRUT $201.48 To Order
Photo Part No Description Price (each) Stock
670034098 DIAPHRAGM Enquire To Order
Photo Part No Description Price (each) Stock
670104471 FUSE BOX MOUNTING BRACKET $39.80 To Order
Photo Part No Description Price (each) Stock
673009229 L.H. COMPLETE FRONT STRUT $2,354.36 To Order
673014099 LH COMPLETE FRONT STRUT $2,648.92 To Order
673014099 LH COMPLETE FRONT STRUT $2,648.92 To Order
Photo Part No Description Price (each) Stock
673005658 COMPLETE LH UPPER STRUT BOX SECTION $201.48 To Order
Photo Part No Description Price (each) Stock
670175519 LH BRACKET $38.83 To Order
Photo Part No Description Price (each) Stock
673009450 LOWER INSTRUMENT PANEL $480.87 To Order
673009451 LOWER INSTRUMENT PANEL $748.68 To Order
Photo Part No Description Price (each) Stock
670034251 REINFORCEMENT BRACKET $31.96 To Order
Photo Part No Description Price (each) Stock
673005662 WINDSCREEN LOWER CROSS MEMBER $92.20 To Order
673005663 WINDSCREEN LOWER CROSS MEMBER $54.22 To Order
Photo Part No Description Price (each) Stock
670175522 CROSS MEMBER $453.36 IN STOCK
Photo Part No Description Price (each) Stock
670106490 SUSPENSION STRUT CONNECTING CROSS MEMBER ASS. $99.98 To Order
670222382 SUSPENSION STRUT CONNECTING CROSS MEMBER ASS. $99.98 To Order
670222383 SUSPENSION STRUT CONNECTING CROSS MEMBER ASS. $137.96 To Order
Photo Part No Description Price (each) Stock
670034858 FIXING BRACKET $3.43 To Order
Photo Part No Description Price (each) Stock
670036974 SCREW $5.61 To Order
Photo Part No Description Price (each) Stock
675000105 WASHER D.12X24 $2.56 IN STOCK
Photo Part No Description Price (each) Stock
670035227 SCREW AND WASHER $2.74 IN STOCK
Photo Part No Description Price (each) Stock
670004843 PLUG $4.08 To Order
Photo Part No Description Price (each) Stock
670004844 PLUG $3.43 To Order
Photo Part No Description Price (each) Stock
675000470 SCREW $1.48 To Order
Photo Part No Description Price (each) Stock
675000382 SCREWM6X16 $2.74 To Order
Photo Part No Description Price (each) Stock
675000421 SCREW $2.33 To Order
Photo Part No Description Price (each) Stock
675000095 NUT M6 $0.88 IN STOCK
Photo Part No Description Price (each) Stock
673010874 LH UPPER STRUT $198.20 To Order
Photo Part No Description Price (each) Stock
675000469 SCREWM8 $1.41 IN STOCK
Photo Part No Description Price (each) Stock
675000469 SCREWM8 $1.41 IN STOCK
Photo Part No Description Price (each) Stock
670002185 THREADED RIVET $3.28 IN STOCK
Photo Part No Description Price (each) Stock
670005395 THREADED RIVET $4.08 IN STOCK
Photo Part No Description Price (each) Stock
670006571 THREADED RIVET $3.28 IN STOCK
Photo Part No Description Price (each) Stock
670034982 BRACKET $5.05 To Order
Photo Part No Description Price (each) Stock
675000623 WELDED STUDM5X14 $1.92 To Order
Photo Part No Description Price (each) Stock
670030073 PLUG $1.92 To Order
Photo Part No Description Price (each) Stock
673008198 LONGITUDINAL MEMBER CONNECTING CROSS MEMBER $251.86 To Order
673008200 LONGITUDINAL MEMBER CONNECTING CROSS MEMBER $551.91 To Order
Photo Part No Description Price (each) Stock
670039124 BRACKET $4.78 To Order
Photo Part No Description Price (each) Stock
675000662 SCREW $1.98 To Order
Photo Part No Description Price (each) Stock
670038157 BRACKET $254.49 To Order
Photo Part No Description Price (each) Stock
675000404 RIVET $1.68 IN STOCK
View All

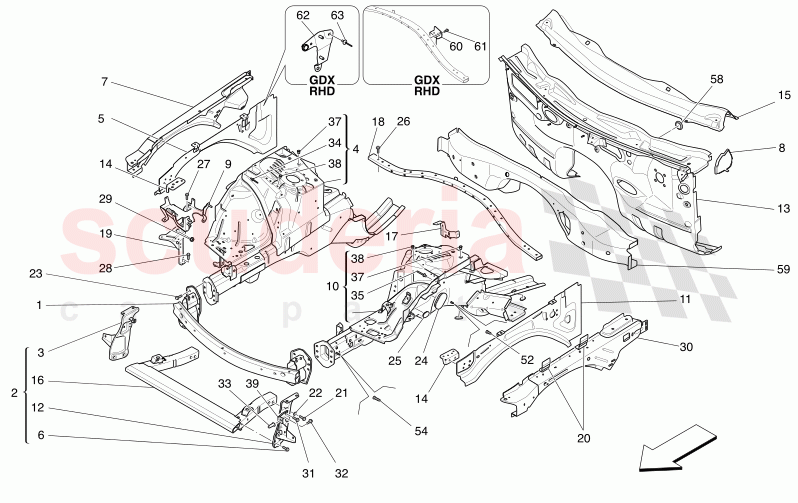

FRONT STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673007200
FRONT CROSS MEMBER 		$613.22 1
3 670175518
RH BRACKET
IN STOCK 		$41.25 1
4 673009228
R.H. COMPLETE FRONT STRUT
Bespoke Assembly Number 6035700 - 99999999; 		$2,771.56 1
4 673010951
RH COMPLETE FRONT STRUT
Bespoke Assembly Number 6079467 - 99999999; 		$2,479.19 1
5 673005729
COMPLETE RH UPPER STRUT BOX SECTION
IN STOCK 		$187.25 1
6 675000469
SCREWM8
IN STOCK 		$1.41 12
7 673010873
RH UPPER STRUT
Bespoke Assembly Number 6074124 - 99999999; 		$201.48 1
8 670034098
DIAPHRAGM
AU UK JRH IN SA; 		- 1 Enquire
9 670104471
FUSE BOX MOUNTING BRACKET
Bespoke Assembly Number 6041783 - 99999999; 		$39.80 1
10 673009229
L.H. COMPLETE FRONT STRUT
Bespoke Assembly Number 6045352 - 99999999; 		$2,354.36 1
10 673014099
LH COMPLETE FRONT STRUT
Bespoke Assembly Number 6086728 - 6102651; 		$2,648.92 1
10 673014099
LH COMPLETE FRONT STRUT
Bespoke Assembly Number 6086728 - 99999999; 		$2,648.92 1
11 673005658
COMPLETE LH UPPER STRUT BOX SECTION 		$201.48 1
12 670175519
LH BRACKET
Bespoke Assembly Number 6087717 - 99999999; 		$38.83 1
13 673009450
LOWER INSTRUMENT PANEL
Bespoke Assembly Number 6053787 - 99999999; EU CN US CD JP ME KO; 		$480.87 1
13 673009451
LOWER INSTRUMENT PANEL
Bespoke Assembly Number 6053787 - 99999999; AU UK JRH IN SA; 		$748.68 1
14 670034251
REINFORCEMENT BRACKET 		$31.96 2
15 673005662
WINDSCREEN LOWER CROSS MEMBER
EU CN US CD JP ME KO; 		$92.20 1
15 673005663
WINDSCREEN LOWER CROSS MEMBER
AU UK JRH IN SA; 		$54.22 1
16 670175522
CROSS MEMBER
IN STOCK 		$453.36 1
18 670106490
SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.
Bespoke Assembly Number 0 - 6102979; EU CN US CD JP ME KO; 		$99.98 1
18 670222382
SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.
Bespoke Assembly Number 6102980 - 99999999; EU CN US CD JP ME KO; 		$99.98 1
18 670222383
SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.
Bespoke Assembly Number 6102980 - 99999999; AU UK JRH IN SA; 		$137.96 1
20 670034858
FIXING BRACKET 		$3.43 2
21 670036974
SCREW 		$5.61 4
22 675000105
WASHER D.12X24
IN STOCK 		$2.56 4
23 670035227
SCREW AND WASHER
IN STOCK 		$2.74 8
24 670004843
PLUG 		$4.08 2
25 670004844
PLUG 		$3.43 2
26 675000470
SCREW 		$1.48 4
27 675000382
SCREWM6X16 		$2.74 1
28 675000421
SCREW 		$2.33 1
29 675000095
NUT M6
IN STOCK 		$0.88 1
30 673010874
LH UPPER STRUT
Bespoke Assembly Number 6074124 - 99999999; 		$198.20 1
31 675000469
SCREWM8
IN STOCK 		$1.41 2
32 675000469
SCREWM8
IN STOCK 		$1.41 2
33 670002185
THREADED RIVET
IN STOCK 		$3.28 2
37 670005395
THREADED RIVET
IN STOCK 		$4.08 4
38 670006571
THREADED RIVET
IN STOCK 		$3.28 8
39 670034982
BRACKET 		$5.05 2
52 675000623
WELDED STUDM5X14 		$1.92 28
58 670030073
PLUG 		$1.92 1
59 673008198
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER
EU CN US CD JP ME KO; 		$251.86 1
59 673008200
LONGITUDINAL MEMBER CONNECTING CROSS MEMBER
AU UK JRH IN SA; 		$551.91 1
60 670039124
BRACKET
AU UK JRH IN SA; 		$4.78 1
61 675000662
SCREW
AU UK JRH IN SA; 		$1.98 1
62 670038157
BRACKET
AU UK JRH IN SA; 		$254.49 1
63 675000404
RIVET
AU UK JRH IN SA;
IN STOCK 		$1.68 3
