Braking Devices On Rear Wheels

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - BRAKING DEVICES ON REAR WHEELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670219581 REAR BRAKE DISC $143.83 To Order
670298244 REAR BRAKE DISC $147.72 IN STOCK
Photo Part No Description Price (each) Stock
675000081 SCREW M10 $5.76 To Order
Photo Part No Description Price (each) Stock
675001525 LH REAR BRAKE DISC SHIELD $9.42 To Order
675001524 RH. REAR BRAKE DISC SHIELD $9.42 To Order
Photo Part No Description Price (each) Stock
675001032 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
673013270 LH REAR CALIPER ASSEMBLY $804.50 To Order
673013271 LH REAR CALIPER ASSEMBLY $804.50 To Order
673013272 LH REAR CALIPER ASSEMBLY $832.24 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675001840 SCREW $4.25 To Order
Photo Part No Description Price (each) Stock
670175125 FLEXIBLE PIPE TO REAR CALIPERS $9.42 To Order
670156895 FLEXIBLE PIPE TO REAR CALIPERS $9.21 To Order
Photo Part No Description Price (each) Stock
675001529 LH BRACKET $4.78 To Order
670292923 LH BRACKET $7.84 To Order
675001530 RH BRACKET $4.78 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675001036 SCREW $1.57 To Order
Photo Part No Description Price (each) Stock
675000276 SPRING PLATE $1.10 IN STOCK
Photo Part No Description Price (each) Stock
673012304 REAR PADS KIT $148.64 IN STOCK
Photo Part No Description Price (each) Stock
675001590 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL $8.76 To Order
670292926 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL $8.86 To Order
675001589 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL $8.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673005441 CENTERING PIN $20.27 To Order
Photo Part No Description Price (each) Stock
675001527 LH BRACKET $6.76 To Order
675001526 RH BRACKET $6.76 To Order
Photo Part No Description Price (each) Stock
675001036 SCREW $1.57 To Order
Photo Part No Description Price (each) Stock
673005434 REAR BRAKE CALIPER GUIDE $19.42 To Order
Photo Part No Description Price (each) Stock
673011638 PLATE KIT $126.65 To Order
673011639 PLATE KIT $126.65 To Order
673011641 PLATE KIT $126.65 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673005435 BRACKET $197.10 To Order
673005437 BRACKET $182.88 To Order
673005436 BRACKET $182.88 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673005421 LH REAR CALIPER $579.16 To Order
673005425 LH REAR CALIPER $579.16 To Order
673005423 LH REAR CALIPER $502.96 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673004422 BLEEDER SCREW $32.69 To Order
Photo Part No Description Price (each) Stock
673004423 DUST SEAL $22.45 To Order
Photo Part No Description Price (each) Stock
673005442 CLIP $26.93 To Order

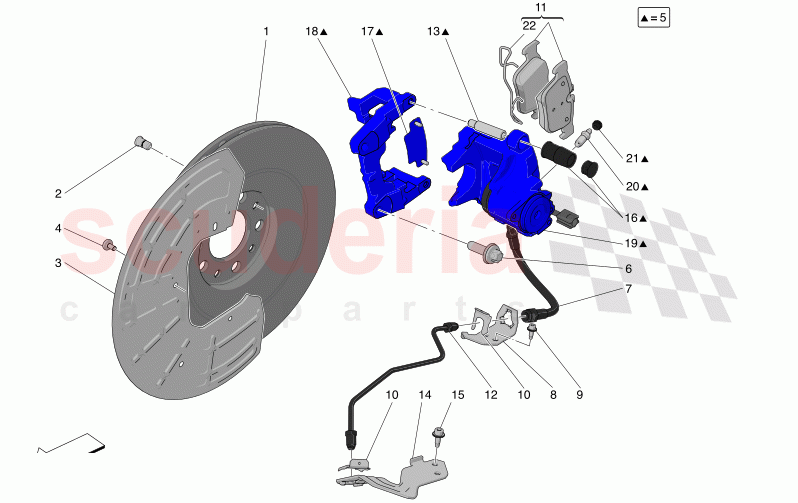

BRAKING DEVICES ON REAR WHEELS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670219581
REAR BRAKE DISC
Bespoke Assembly Number 0 - 2005614; 		$143.83 2
TO
1 670298244
REAR BRAKE DISC
Bespoke Assembly Number 2005615 - 99999999;
IN STOCK 		$147.72 2
IN
2 675000081
SCREW M10 		$5.76 2
TO
3 675001525
LH REAR BRAKE DISC SHIELD 		$9.42 1
TO
3 675001524
RH. REAR BRAKE DISC SHIELD 		$9.42 1
TO
4 675001032
SCREW 		$1.42 6
TO
5 673013270
LH REAR CALIPER ASSEMBLY
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$804.50 1
TO
5 673013271
LH REAR CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$804.50 1
TO

673013272

LH REAR CALIPER ASSEMBLY

from $832.24

5 673013273
LH REAR CALIPER ASSEMBLY
Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$804.50 1
TO
5 673006262
LH REAR CALIPER ASSEMBLY
Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS;
IN STOCK 		$480.47 1
IN
5 673013275
RH REAR CALIPER ASSEMBLY
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$804.50 1
TO
5 673013276
RH REAR CALIPER ASSEMBLY
Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$832.24 1
TO
5 673013277
RH REAR CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$804.50 1
TO

673013278

RH REAR CALIPER ASSEMBLY

from $970.95

5 673006268
RH REAR CALIPER ASSEMBLY
Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$700.77 1
TO
6 675001840
SCREW 		$4.25 4
TO
7 670175125
FLEXIBLE PIPE TO REAR CALIPERS
Not available with: AIR SUSPENSION WITH SKYHOOK; 		$9.42 2
TO
7 670156895
FLEXIBLE PIPE TO REAR CALIPERS
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$9.21 2
TO
8 675001529
LH BRACKET
Not available with: AIR SUSPENSION WITH SKYHOOK; 		$4.78 1
TO
8 670292923
LH BRACKET
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$7.84 1
TO
8 675001530
RH BRACKET
Not available with: AIR SUSPENSION WITH SKYHOOK; 		$4.78 1
TO
8 670292922
RH BRACKET
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$7.84 1
TO

675001036

SCREW

from $1.57

10 675000276
SPRING PLATE
IN STOCK 		$1.10 6
IN
11 673012304
REAR PADS KIT
IN STOCK 		$148.64 1
IN
12 675001590
RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
Not available with: AIR SUSPENSION WITH SKYHOOK; 		$8.76 1
TO
12 670292926
RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$8.86 1
TO
12 675001589
RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
Not available with: AIR SUSPENSION WITH SKYHOOK; 		$8.76 1
TO
12 670292927
RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$8.86 1
TO
13 673005441
CENTERING PIN 		$20.27 1
TO
14 675001527
LH BRACKET 		$6.76 1
TO
14 675001526
RH BRACKET 		$6.76 1
TO
16 673005434
REAR BRAKE CALIPER GUIDE 		$19.42 1
TO
17 673011638
PLATE KIT
Available with: BLACK BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$126.65 1
TO
17 673011639
PLATE KIT
Available with: RED BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$126.65 1
TO

673011641

PLATE KIT

from $126.65

17 673013284
PLATE KIT
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$162.83 1
TO
18 673005435
BRACKET
Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$197.10 1
TO
18 673005437
BRACKET
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$182.88 1
TO
18 673005436
BRACKET
Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$182.88 1
TO

673005438

BRACKET

from $182.88

18 673013283
BRACKET
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		- 1
PE
 Enquire
19 673005421
LH REAR CALIPER
Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$579.16 1
TO
19 673005425
LH REAR CALIPER
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$579.16 1
TO
19 673005423
LH REAR CALIPER
Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$502.96 1
TO

673005427

LH REAR CALIPER

from $538.60

19 673013281
LH REAR CALIPER
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		- 1
PE
 Enquire
19 673005422
RH REAR CALIPER
Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$579.16 1
TO
19 673005426
RH REAR CALIPER
Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$579.16 1
TO
19 673005424
RH REAR CALIPER
Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		$502.96 1
TO

673005428

RH REAR CALIPER

from $538.60

19 673013282
RH REAR CALIPER
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; 		- 1
PE
 Enquire
20 673004422
BLEEDER SCREW 		$32.69 1
TO
21 673004423
DUST SEAL 		$22.45 1
TO
22 673005442
CLIP 		$26.93 1
TO
