Crank Mechanism

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675000863 CRANKSHAFT $1,525.41 To Order
Photo Part No Description Price (each) Stock
675001169 UPPER HALF-BEARING $22.66 To Order
675001171 UPPER HALF-BEARING $17.96 To Order
675001170 UPPER HALF-BEARING $17.96 To Order
Photo Part No Description Price (each) Stock
675001176 LOWER HALF-BEARING $8.00 To Order
675001175 LOWER HALF-BEARING $8.64 To Order
675001174 LOWER HALF-BEARING $8.00 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000845 UPPER HALF-BEARING $17.96 To Order
675000847 UPPER HALF-BEARING $17.96 To Order
675000846 UPPER HALF-BEARING $17.96 To Order
Photo Part No Description Price (each) Stock
675001288 LOWER HALF-BEARING $17.96 To Order
675001287 LOWER HALF-BEARING $17.96 To Order
675001285 LOWER HALF-BEARING $17.96 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000862 THRUST RING $4.18 To Order
Photo Part No Description Price (each) Stock
675000921 TAB $2.51 To Order
Photo Part No Description Price (each) Stock
670052962 TORSION DAMPER $133.88 To Order
Photo Part No Description Price (each) Stock
675000922 SCREW FOR DAMPER FIXING $4.45 To Order
Photo Part No Description Price (each) Stock
670054383 ENGINE PISTON WITH RINGS $104.03 To Order
670054091 ENGINE PISTON WITH RINGS $104.03 To Order
670054383 ENGINE PISTON WITH RINGS $104.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000864 LOCK RING $1.23 To Order
Photo Part No Description Price (each) Stock
675000865 CONNECTING ROD SHAFT AND CAP ASSEMBLY $235.51 To Order
Photo Part No Description Price (each) Stock
675000866 CONNECTING ROD TIGHTENING SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
675001184 CONNECTING ROD HALF-BEARING $7.34 To Order
675001185 CONNECTING ROD HALF-BEARING $8.86 To Order
675001183 CONNECTING ROD HALF-BEARING $7.13 To Order
Photo Part No Description Price (each) Stock
675000842 PISTONS COOLING NOZZLE $14.84 To Order
Photo Part No Description Price (each) Stock
675000844 SCREW $3.10 To Order
Photo Part No Description Price (each) Stock
675001993 RH BALANCE SHAFT $405.89 To Order
Photo Part No Description Price (each) Stock
675000873 SCREW $2.92 To Order
Photo Part No Description Price (each) Stock
675001992 LH BALANCE SHAFT $545.14 To Order

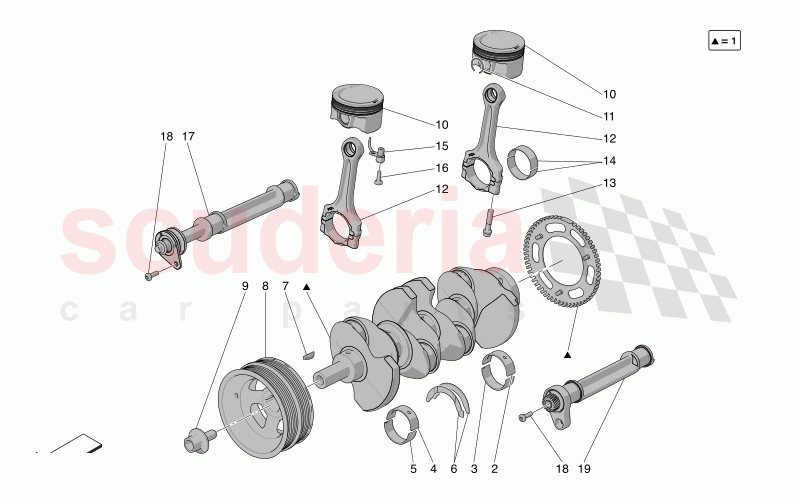

CRANK MECHANISM of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675000863
CRANKSHAFT 		$1,525.41 1
TO
2 675001169
UPPER HALF-BEARING
Yellow-Yellow; 		$22.66 4
TO
2 675001171
UPPER HALF-BEARING
PURPLE-PURPLE; 		$17.96 4
TO
2 675001170
UPPER HALF-BEARING
Green - Green; 		$17.96 4
TO
3 675001176
LOWER HALF-BEARING
Blue; 		$8.00 4
TO
3 675001175
LOWER HALF-BEARING
Black; 		$8.64 4
TO
3 675001174
LOWER HALF-BEARING
Brown; 		$8.00 4
TO
3 675001173
LOWER HALF-BEARING
Green; 		$8.53 4
TO
3 675001172
LOWER HALF-BEARING
Pink; 		$8.64 4
TO
4 675000845
UPPER HALF-BEARING
Yellow-Yellow; 		$17.96 1
TO
4 675000847
UPPER HALF-BEARING
PURPLE-PURPLE; 		$17.96 1
TO
4 675000846
UPPER HALF-BEARING
Green - Green; 		$17.96 1
TO
5 675001288
LOWER HALF-BEARING
Blue; 		$17.96 1
TO
5 675001287
LOWER HALF-BEARING
Black; 		$17.96 1
TO
5 675001285
LOWER HALF-BEARING
Green; 		$17.96 1
TO
5 675001284
LOWER HALF-BEARING
Pink; 		$17.96 1
TO

675000859

LOWER HALF-BEARING

from $17.96

6 675000862
THRUST RING 		$4.18 2
TO
7 675000921
TAB 		$2.51 1
TO
8 670052962
TORSION DAMPER 		$133.88 1
TO
9 675000922
SCREW FOR DAMPER FIXING 		$4.45 1
TO

670054383

ENGINE PISTON WITH RINGS

from $104.03

10 670054091
ENGINE PISTON WITH RINGS
Bespoke Engine Number 0 - 1814287; 		$104.03 4
TO
10 670054384
ENGINE PISTON WITH RINGS
Bespoke Engine Number 1814288 - ZZZZZZZZ; 		$104.03 4
TO
11 675000864
LOCK RING 		$1.23 8
TO
12 675000865
CONNECTING ROD SHAFT AND CAP ASSEMBLY 		$235.51 4
TO
13 675000866
CONNECTING ROD TIGHTENING SCREW 		$6.40 8
TO
14 675001184
CONNECTING ROD HALF-BEARING
Blue; 		$7.34 8
TO
14 675001185
CONNECTING ROD HALF-BEARING
Green; 		$8.86 8
TO
14 675001183
CONNECTING ROD HALF-BEARING
Purple; 		$7.13 8
TO
15 675000842
PISTONS COOLING NOZZLE 		$14.84 4
TO
16 675000844
SCREW 		$3.10 4
TO
17 675001993
RH BALANCE SHAFT 		$405.89 1
TO
18 675000873
SCREW 		$2.92 2
TO
19 675001992
LH BALANCE SHAFT 		$545.14 1
TO
