Bodywork And Front Outer Trim Panels

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Find Your Part

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - BODYWORK AND FRONT OUTER TRIM PANELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670293089 FRONT CROSS MEMBER $497.15 To Order
Photo Part No Description Price (each) Stock
673014263 LH MUDGUARD FRONT LOWER REINFORCEMENT $28.47 To Order
Photo Part No Description Price (each) Stock
670217114 LH FRONT FENDER BRACKET $12.80 To Order
Photo Part No Description Price (each) Stock
673016705 LH MUDGUARD SUPPORT BRACKET $31.96 To Order
Photo Part No Description Price (each) Stock
670157320 LH FRONT FENDER BRACKET $2.19 To Order
Photo Part No Description Price (each) Stock
670157342 LH MUDGUARD BRACKET FIXING $14.60 To Order
Photo Part No Description Price (each) Stock
670157318 LH UPPER REPORT $13.72 To Order
Photo Part No Description Price (each) Stock
670158066 RH FRONT FENDER BRACKET $1.77 To Order
Photo Part No Description Price (each) Stock
673014200 RH MUDGUARD FRONT LOWER REINFORCEMENT $28.47 To Order
Photo Part No Description Price (each) Stock
670217112 RH FRONT FENDER BRACKET $12.80 To Order
Photo Part No Description Price (each) Stock
673016704 RH MUDGUARD SUPPORT BRACKET $31.96 To Order
Photo Part No Description Price (each) Stock
673016588 FRONT RH MUDGUARD $360.37 IN STOCK
Photo Part No Description Price (each) Stock
673016589 FRONT LH MUDGUARD ASSEMBLY $350.88 To Order
Photo Part No Description Price (each) Stock
670157343 RH MUDGUARD BRACKET MUDGUARD FIXING $14.60 To Order
Photo Part No Description Price (each) Stock
670157317 RH UPPER REPORT $13.72 To Order
Photo Part No Description Price (each) Stock
675001750 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
675001317 SCREW $2.06 To Order
Photo Part No Description Price (each) Stock
675002108 RIVET $1.09 To Order
Photo Part No Description Price (each) Stock
675002124 SCREW $2.36 To Order
Photo Part No Description Price (each) Stock
670177870 RH ENGINE COVER BRACKET $49.32 To Order
Photo Part No Description Price (each) Stock
670182557 LH ENGINE COVER BRACKET $47.50 To Order
Photo Part No Description Price (each) Stock
675001933 SCREW $1.63 To Order
Photo Part No Description Price (each) Stock
670213767 BODYWORK ASSEMBLY Enquire To Order
670213768 BODYWORK ASSEMBLY Enquire To Order
670213769 BODYWORK ASSEMBLY Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670005535 BLOCK $8.43 IN STOCK

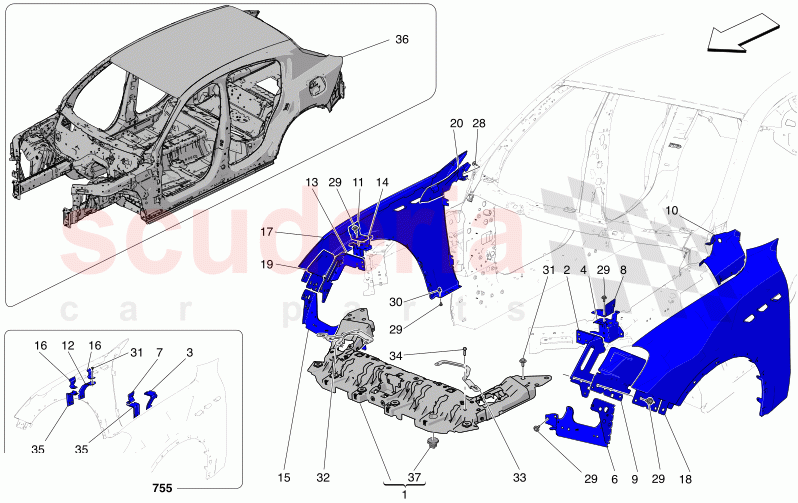

BODYWORK AND FRONT OUTER TRIM PANELS of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670293089
FRONT CROSS MEMBER 		$497.15 1
TO
2 673014263
LH MUDGUARD FRONT LOWER REINFORCEMENT 		$28.47 1
TO
4 670217114
LH FRONT FENDER BRACKET 		$12.80 1
TO
6 673016705
LH MUDGUARD SUPPORT BRACKET 		$31.96 1
TO
8 670157320
LH FRONT FENDER BRACKET 		$2.19 1
TO
9 670157342
LH MUDGUARD BRACKET FIXING 		$14.60 1
TO
10 670157318
LH UPPER REPORT 		$13.72 1
TO
11 670158066
RH FRONT FENDER BRACKET 		$1.77 1
TO
13 673014200
RH MUDGUARD FRONT LOWER REINFORCEMENT 		$28.47 1
TO
14 670217112
RH FRONT FENDER BRACKET 		$12.80 1
TO
15 673016704
RH MUDGUARD SUPPORT BRACKET 		$31.96 1
TO
17 673016588
FRONT RH MUDGUARD
IN STOCK 		$360.37 1
IN
18 673016589
FRONT LH MUDGUARD ASSEMBLY 		$350.88 1
TO
19 670157343
RH MUDGUARD BRACKET MUDGUARD FIXING 		$14.60 1
TO
20 670157317
RH UPPER REPORT 		$13.72 1
TO
28 675001750
SCREW 		$1.30 1
TO
29 675001317
SCREW
Bespoke Assembly Number 2031756 - 99999999; 		$2.06 30
TO
30 675002108
RIVET 		$1.09 2
TO
31 675002124
SCREW 		$2.36 6
TO
32 670177870
RH ENGINE COVER BRACKET 		$49.32 1
TO
33 670182557
LH ENGINE COVER BRACKET 		$47.50 1
TO
34 675001933
SCREW 		$1.63 6
TO
36 670213767
BODYWORK ASSEMBLY
Not available with: ROOF RAILS, PANORAMA SUNROOF; EU CN JP ME KO; 		- 1
PE
 Enquire
36 670213768
BODYWORK ASSEMBLY
Available with: ROOF RAILS Not available with: PANORAMA SUNROOF; EU CN JP ME KO; 		- 1
PE
 Enquire
36 670213769
BODYWORK ASSEMBLY
Available with: PANORAMA SUNROOF ; EU CN JP ME KO; 		- 1
PE
 Enquire
36 670213773
BODYWORK ASSEMBLY
Not available with: ROOF RAILS, PANORAMA SUNROOF; AU UK JRH IN N8; 		- 1
PE
 Enquire
36 670213774
BODYWORK ASSEMBLY
Available with: ROOF RAILS Not available with: PANORAMA SUNROOF; AU UK JRH IN N8; 		- 1
PE
 Enquire
36 670213775
BODYWORK ASSEMBLY
Available with: PANORAMA SUNROOF ; AU UK JRH IN N8; 		- 1
PE
 Enquire
37 670005535
BLOCK
IN STOCK 		$8.43 6
IN
