Name: Main Wiring
Rating: 4.6 (1 reviews)

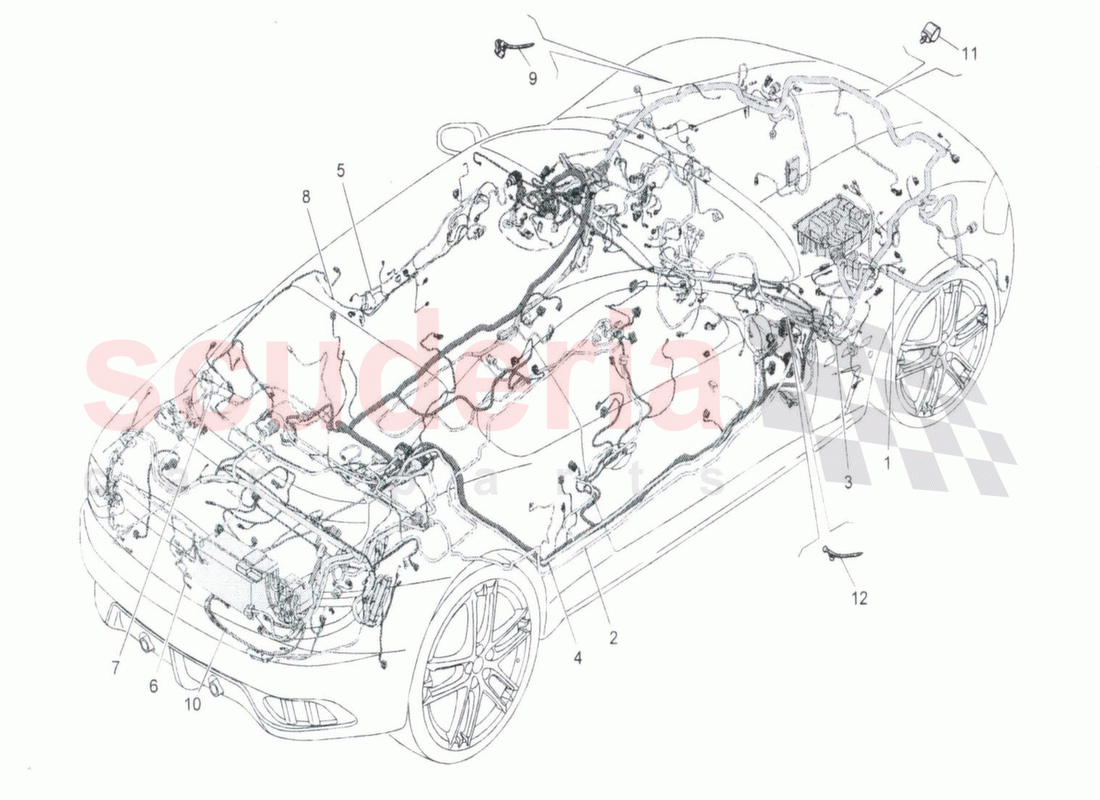

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	267074	Engine Compartment Wiring Harness	$2,256.33	To Order

Photo	Part No	Description	Price (each)	Stock
	267080	Passenger Wiring Harness	$1,811.88	To Order

Photo	Part No	Description	Price (each)	Stock
	272861	DRIVER DOOR WIRING HARNESS	$270.09	To Order
	274633	DRIVER DOOR WIRING HARNESS	$231.81	To Order
	272862	PASSENGER DOOR WIRING HARNESS	$221.16	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	233927	BOOT WIRING HARNESS	$143.55	To Order

Photo	Part No	Description	Price (each)	Stock
	212487	FUEL PUMP CABLE	$613.53	To Order

Photo	Part No	Description	Price (each)	Stock
	231437	DRIVER DOOR WIRING HARNESS	$287.09	To Order
	231438	PASSENGER DOOR PANEL WIRING HARNESS	$95.50	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	240405	F1 GEARBOX WIRING HARNESS	$2,965.57	To Order

Photo	Part No	Description	Price (each)	Stock
	208522	CLAMP	$1.92	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	267074	Engine Compartment Wiring Harness	267074 Engine Compartment Wiring Harness	$2,256.33	1	TO
4	267080	Passenger Wiring Harness	267080 Passenger Wiring Harness	$1,811.88	1	TO
5	272861	DRIVER DOOR WIRING HARNESS	272861 DRIVER DOOR WIRING HARNESS	$270.09 MSRP: ~~288.57~~ (6.4% off)	1	TO
5	274633	DRIVER DOOR WIRING HARNESS	274633 DRIVER DOOR WIRING HARNESS	$231.81	1	TO
5	272862	PASSENGER DOOR WIRING HARNESS	272862 PASSENGER DOOR WIRING HARNESS	$221.16	1	TO
5	274634	PASSENGER DOOR WIRING HARNESS	274634 PASSENGER DOOR WIRING HARNESS	$232.86	1	TO
6	233927	BOOT WIRING HARNESS	233927 BOOT WIRING HARNESS	$143.55 MSRP: ~~163.67~~ (12.3% off)	1	TO
7	212487	FUEL PUMP CABLE	212487 FUEL PUMP CABLE	$613.53 MSRP: ~~717.81~~ (14.5% off)	1	TO
8	231437	DRIVER DOOR WIRING HARNESS	231437 DRIVER DOOR WIRING HARNESS	$287.09	1	TO
8	231438	PASSENGER DOOR PANEL WIRING HARNESS	231438 PASSENGER DOOR PANEL WIRING HARNESS	$95.50 MSRP: ~~97.20~~ (1.7% off)	1	TO
9	177553	CLAMP	177553 CLAMP	$1.92	-	TO
10	240405	F1 GEARBOX WIRING HARNESS	240405 F1 GEARBOX WIRING HARNESS	$2,965.57	1	TO
11	230265	CLIP	230265 CLIP	$9.88	-	TO
11	204775	CLIP	204775 CLIP	$3.43	1	TO
12	208522	CLAMP	208522 CLAMP	$1.92	1	TO
