Name: REAR ELECTRIC AXLE - HEAT EXCHANGER AND PIPES
Rating: 4.9 (1 reviews)

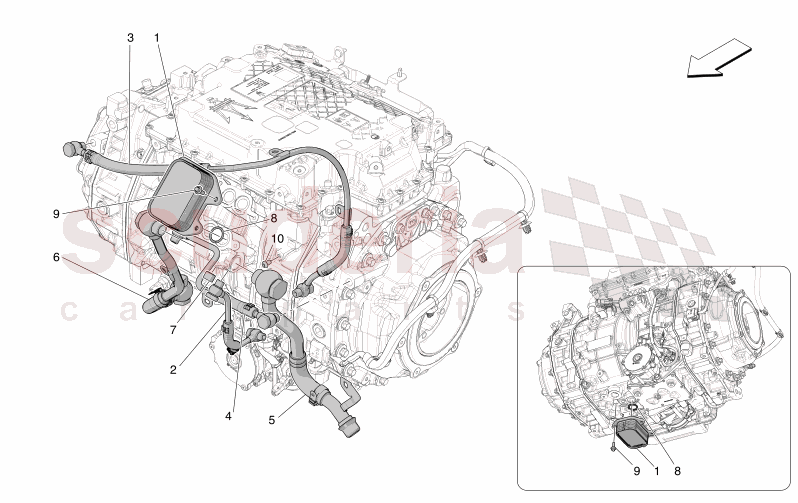

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673011610	HEAT EXCHANGER	$283.61	To Order

Photo	Part No	Description	Price (each)	Stock
	673011615	OIL PIPE	$106.44	To Order

Photo	Part No	Description	Price (each)	Stock
	673011624	OIL DELIVERY PIPE	$182.88	To Order

Photo	Part No	Description	Price (each)	Stock
	673011625	OIL DELIVERY PIPE	$182.88	To Order

Photo	Part No	Description	Price (each)	Stock
	673014477	WATER OUTLET PIPE	$215.73	To Order

Photo	Part No	Description	Price (each)	Stock
	673011614	WATER OUTLET PIPE	$215.73	To Order

Photo	Part No	Description	Price (each)	Stock
	673014478	PLUG	$12.30	To Order

Photo	Part No	Description	Price (each)	Stock
	673011583	O-RING	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	673011591	SCREW	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	673011609	SCREW	$5.61	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	673011610	HEAT EXCHANGER	673011610 HEAT EXCHANGER	$283.61	2	TO
2	673011615	OIL PIPE	673011615 OIL PIPE	$106.44	1	TO
3	673011624	OIL DELIVERY PIPE	673011624 OIL DELIVERY PIPE	$182.88	1	TO
4	673011625	OIL DELIVERY PIPE	673011625 OIL DELIVERY PIPE	$182.88	1	TO
5	673014477	WATER OUTLET PIPE	673014477 WATER OUTLET PIPE	$215.73	1	TO
6	673011614	WATER OUTLET PIPE	673011614 WATER OUTLET PIPE	$215.73	1	TO
7	673014478	PLUG	673014478 PLUG	$12.30	2	TO
8	673011583	O-RING	673011583 O-RING	$2.33	8	TO
9	673011591	SCREW	673011591 SCREW	$4.55	8	TO
10	673011609	SCREW	673011609 SCREW	$5.61	1	TO

Rear Electric Axle - Heat Exchanger And Pipes

Maserati GranTurismo M189 FOLGORE AUTOMATIC 4WD BEV 560 kW
