Name: OIL VAPOUR RECIRCULATION SYSTEM
Rating: 5.0 (1 reviews)

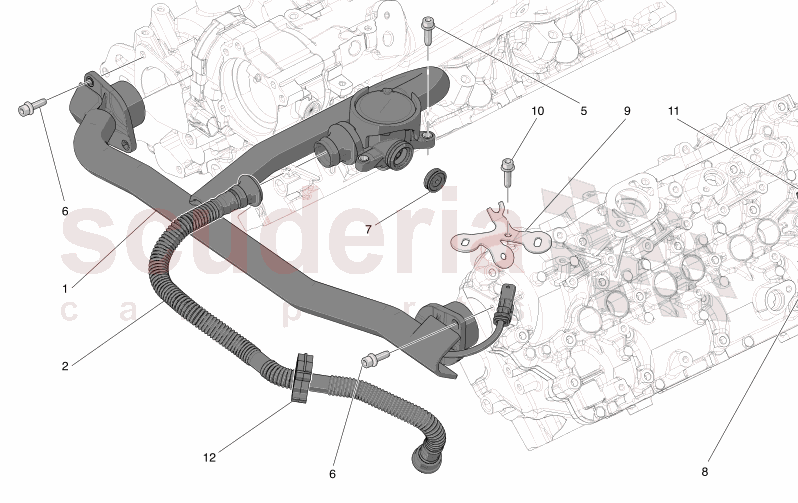

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054131	COMPLETE BLOW-BY CIRCUIT	$465.40	To Order

Photo	Part No	Description	Price (each)	Stock
	670158516	TUBE	$48.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670051109	SCREW	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670051108	SCREW	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	670050615	MANIFOLD-SIDE CHOKE	$6.76	To Order

Photo	Part No	Description	Price (each)	Stock
	675001312	SCREW	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	670054143	BRACKET	$20.27	To Order

Photo	Part No	Description	Price (each)	Stock
	670051104	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	670052765	PRESSURE SENSOR	$96.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675002256	FIXING CLIP	$2.96	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	670054131	COMPLETE BLOW-BY CIRCUIT	670054131 COMPLETE BLOW-BY CIRCUIT	$465.40	1	TO
2	670158516	TUBE	670158516 TUBE	$48.73	1	TO
5	670051109	SCREW	670051109 SCREW	$2.28	2	TO
6	670051108	SCREW	670051108 SCREW	$2.54	4	TO
7	670050615	MANIFOLD-SIDE CHOKE	670050615 MANIFOLD-SIDE CHOKE	$6.76	1	TO
8	675001312	SCREW	675001312 SCREW	$2.87	1	TO
9	670054143	BRACKET	670054143 BRACKET	$20.27	1	TO
10	670051104	SCREW	670051104 SCREW	$2.47	1	TO
11	670052765	PRESSURE SENSOR	670052765 PRESSURE SENSOR	$96.45	1	TO
12	675002256	FIXING CLIP	675002256 FIXING CLIP	$2.96	1	TO

Oil Vapour Recirculation System

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP
