Lay Shaft Gears

Maserati 4200 Spyder (2005-2007) GT

Find Your Part

Maserati 4200 Spyder (2005-2007) GT - LAY SHAFT GEARS

Look at the exploded parts diagram to find the part you need:
  • Reposition the diagram by dragging it across.
  • Zoom in & out of the diagram by scrolling or using the and buttons
  • Click on a hotspot in the parts diagram to locate the part you need.
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend that you view the diagram page in 'landscape' view.
Part Key
IN
In Stock
AS
Arriving Soon
TD
To Order
PE
Please Enquire

Photo Part No Description Price (each) Stock
185679 COMPLETE BEVEL SET $925.85 To Order
Photo Part No Description Price (each) Stock
16287734 SCREW $10.56 To Order
Photo Part No Description Price (each) Stock
185022 ROLLER BEARING $134.80 IN STOCK
Photo Part No Description Price (each) Stock
185047 SPACER RING $68.31 To Order
185045 SPACER RING $68.31 To Order
185046 SPACER RING $68.31 To Order
Photo Part No Description Price (each) Stock
185044 SPACER RING $23.47 To Order
185043 SPACER RING $23.47 To Order
185042 SPACER RING $32.92 To Order
Photo Part No Description Price (each) Stock
185020 BEARING SUPPORT $118.96 To Order
Photo Part No Description Price (each) Stock
185021 ROLLER BEARING $119.43 To Order
Photo Part No Description Price (each) Stock
196667 RING NUT $127.77 To Order
Photo Part No Description Price (each) Stock
182287 3rd AND 4th DRIVEN GEAR $350.67 To Order
Photo Part No Description Price (each) Stock
182288 5th AND 6th DRIVEN GEAR $227.24 To Order
Photo Part No Description Price (each) Stock
185039 RING $57.39 To Order
185038 RING $57.39 To Order
183974 RING $51.50 To Order
Photo Part No Description Price (each) Stock
184014 ROLLER CAGE $25.29 To Order
Photo Part No Description Price (each) Stock
182293 COMPLETE PINION FOR 2nd GEAR $233.47 To Order
198263 COMPLETE PINION FOR 2nd GEAR $214.98 To Order
Photo Part No Description Price (each) Stock
185037 CIRCLIP $37.10 To Order
185036 CIRCLIP $45.58 To Order
183976 CIRCLIP $19.40 To Order
Photo Part No Description Price (each) Stock
183971 BUSHING $119.90 To Order
Photo Part No Description Price (each) Stock
184016 ROLLER CAGE $33.19 To Order
Photo Part No Description Price (each) Stock
182299 COMPLETE PINION FOR 1st GEAR $543.08 To Order
Photo Part No Description Price (each) Stock
183972 RING $66.84 To Order
185041 RING $48.54 To Order
185040 RING $87.48 To Order
Photo Part No Description Price (each) Stock
184020 ROLLER BEARING $154.71 To Order
Photo Part No Description Price (each) Stock
184042 CIRCLIP $13.76 To Order
Photo Part No Description Price (each) Stock
193438 COMPLETE PINION FOR REVERSE GEAR $451.14 To Order
Photo Part No Description Price (each) Stock
184018 ROLLER CAGE $33.19 To Order
Photo Part No Description Price (each) Stock
326260 REVERSE GEAR COMPLETE SYNCHRONIZER $1,876.12 To Order
Photo Part No Description Price (each) Stock
184041 CIRCLIP $11.44 To Order
Photo Part No Description Price (each) Stock
14303624 SCREW $2.46 To Order
Photo Part No Description Price (each) Stock
10571379 WASHER $1.73 To Order
Photo Part No Description Price (each) Stock
182279 COMPLETE OIL PUMP $533.47 To Order
Photo Part No Description Price (each) Stock
185164 1st AND 2nd GEAR COMPLETE SYNCHRONIZER $1,113.36 To Order
198267 1st AND 2nd GEAR COMPLETE SYNCHRONIZER $457.83 To Order
Photo Part No Description Price (each) Stock
182415 PIN $66.72 To Order
Photo Part No Description Price (each) Stock
184017 NEEDLE BEARING $13.64 To Order
Photo Part No Description Price (each) Stock
183975 RING $42.90 To Order
Photo Part No Description Price (each) Stock
183969 IDLE GEAR FOR REVERSE $275.31 To Order
Photo Part No Description Price (each) Stock
188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $17.82 To Order
195991 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $17.14 To Order
Photo Part No Description Price (each) Stock
193440 PADS/SYNCHRO REVERSE GEAR KIT $6.64 To Order
Photo Part No Description Price (each) Stock
182326 SPACER $61.44 To Order
Photo Part No Description Price (each) Stock
185713 OIL GALLERY $24.83 To Order
Photo Part No Description Price (each) Stock
196524 STOP RING $9.28 To Order
Photo Part No Description Price (each) Stock
196523 ROLLER CAGE $20.49 To Order
Photo Part No Description Price (each) Stock
196663 RING $97.43 To Order
196664 RING $97.43 To Order
196509 RING $84.42 To Order

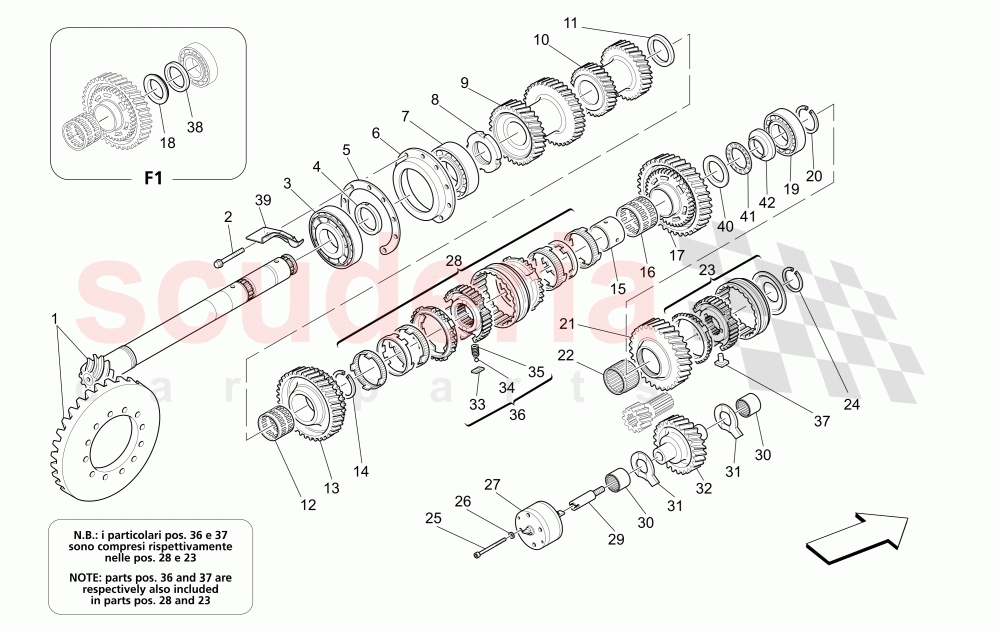

LAY SHAFT GEARS of Maserati Maserati 4200 Spyder (2005-2007) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 185679
COMPLETE BEVEL SET 		$925.85 (7.7% off) 1
IN
2 16287734
SCREW 		$10.56 9
IN
3 185022
ROLLER BEARING
IN STOCK 		$134.80 (44.8% off) 1
IN
4 185047
SPACER RING
Thickness mm. 6,60- -Possible fitting 		$68.31 1
IN
4 185045
SPACER RING
Thickness mm. 7,10 		$68.31 1
IN
4 185046
SPACER RING
Thickness mm. 6,85- -Possible fitting 		$68.31 1
IN
5 185044
SPACER RING
Thickness mm. 2,2- -Possible fitting 		$23.47 (33.1% off) 1
IN
5 185043
SPACER RING
Thickness mm. 2,5- -Possible fitting 		$23.47 1
IN
5 185042
SPACER RING
Thickness mm. 2,8 		$32.92 1
IN
6 185020
BEARING SUPPORT 		$118.96 (60.6% off) 1
IN
7 185021
ROLLER BEARING 		$119.43 1
IN
8 196667
RING NUT 		$127.77 1
IN
9 182287
3rd AND 4th DRIVEN GEAR 		$350.67 (7.1% off) 1
IN
10 182288
5th AND 6th DRIVEN GEAR 		$227.24 (16.3% off) 1
IN
11 185039
RING
Thickness mm. 3,60- -Possible fitting 		$57.39 1
IN
11 185038
RING
Thickness mm. 3,95- -Possible fitting 		$57.39 1
IN
11 183974
RING
Thickness mm. 4,30 		$51.50 1
IN
12 184014
ROLLER CAGE 		$25.29 1
IN
13 182293
COMPLETE PINION FOR 2nd GEAR
Valid for F1 		$233.47 1
IN
13 198263
COMPLETE PINION FOR 2nd GEAR
Not for F1 		$214.98 1
IN
14 185037
CIRCLIP
Thickness mm. 1,60- -Possible fitting 		$37.10 (41.7% off) 1
IN
14 185036
CIRCLIP
Thickness mm. 1,85- -Possible fitting 		$45.58 1
IN
14 183976
CIRCLIP
Thickness mm. 2,10 		$19.40 1
IN
15 183971
BUSHING 		$119.90 1
IN
16 184016
ROLLER CAGE 		$33.19 1
IN
17 182299
COMPLETE PINION FOR 1st GEAR 		$543.08 (7.7% off) 1
IN
18 183972
RING
Thickness mm. 5,10- -Valid for F1 		$66.84 (31.1% off) 1
IN
18 185041
RING
Thickness mm. 4,60- -Possible fitting- -Valid for F1 		$48.54 1
IN
18 185040
RING
Thickness mm. 4,85- -Possible fitting- -Valid for F1 		$87.48 1
IN
19 184020
ROLLER BEARING 		$154.71 1
IN
20 184042
CIRCLIP 		$13.76 (6.8% off) 1
IN
21 193438
COMPLETE PINION FOR REVERSE GEAR 		$451.14 1
IN
22 184018
ROLLER CAGE 		$33.19 1
IN
23 326260
REVERSE GEAR COMPLETE SYNCHRONIZER 		$1,876.12 1
IN
24 184041
CIRCLIP 		$11.44 1
IN
25 14303624
SCREW 		$2.46 4
IN
26 10571379
WASHER 		$1.73 4
IN
27 182279
COMPLETE OIL PUMP 		$533.47 (10.7% off) 1
IN
28 185164
1st AND 2nd GEAR COMPLETE SYNCHRONIZER
Valid for F1 		$1,113.36 1
IN
28 198267
1st AND 2nd GEAR COMPLETE SYNCHRONIZER
Not for F1 		$457.83 1
IN
29 182415
PIN 		$66.72 (13.1% off) 1
IN
30 184017
NEEDLE BEARING 		$13.64 2
IN
31 183975
RING 		$42.90 2
IN
32 183969
IDLE GEAR FOR REVERSE 		$275.31 (69.7% off) 1
IN
36 188320
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
Valid for F1 		$17.82 1
IN
36 195991
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
Not for F1 		$17.14 (13.6% off) 1
IN
37 193440
PADS/SYNCHRO REVERSE GEAR KIT 		$6.64 1
IN
38 182326
SPACER
Valid for F1 		$61.44 (6.8% off) 1
IN
39 185713
OIL GALLERY 		$24.83 (9.5% off) 1
IN
40 196524
STOP RING
Not for F1 		$9.28 1
IN
41 196523
ROLLER CAGE
Not for F1 		$20.49 1
IN
42 196663
RING
Thickness mm. 10,10- -Possible fitting- -Not for F1 		$97.43 1
IN
42 196664
RING
Thickness mm. 10,35- -Possible fitting- -Not for F1 		$97.43 1
IN
42 196509
RING
Thickness mm. 10,60- -Not for F1 		$84.42 1
IN
