Rear Suspension

Maserati GranSport Coupe (2005-2007)

Find Your Part

Maserati GranSport Coupe (2005-2007) - REAR SUSPENSION

Look at the exploded parts diagram to find the part you need:
  • Reposition the diagram by dragging it across.
  • Zoom in & out of the diagram by scrolling or using the and buttons
  • Click on a hotspot in the parts diagram to locate the part you need.
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend that you view the diagram page in 'landscape' view.
Part Key
IN
In Stock
AS
Arriving Soon
TD
To Order
PE
Please Enquire

Photo Part No Description Price (each) Stock
189335 L.H. REAR HUB HOLDER $1,021.48 To Order
189334 R.H. REAR HUB HOLDER $921.21 To Order
Photo Part No Description Price (each) Stock
196779 COMPLETE UPPER LEVER $1,314.44 To Order
Photo Part No Description Price (each) Stock
186496 FLANBLOC $223.73 To Order
Photo Part No Description Price (each) Stock
377030382 WASHER $7.27 To Order
377030379 WASHER $6.14 To Order
377030380 WASHER $23.85 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13530624 STUD $34.30 To Order
Photo Part No Description Price (each) Stock
14048825 NUT $6.14 To Order
Photo Part No Description Price (each) Stock
196776 COMPLETE L.H. LOWER LEVER $2,639.17 To Order
198027 COMPLETE R.H. LOWER LEVER $2,639.17 To Order
198501 COMPLETE L.H. LOWER LEVER $2,697.83 To Order
Photo Part No Description Price (each) Stock
186494 FLANBLOC $164.89 To Order
Photo Part No Description Price (each) Stock
387000393 ABS CABLE BRACKET $90.12 To Order
Photo Part No Description Price (each) Stock
13684370 RIVET $1.96 To Order
Photo Part No Description Price (each) Stock
188632 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER $102.55 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.87 IN STOCK
Photo Part No Description Price (each) Stock
14498805 WASHER $1.73 To Order
Photo Part No Description Price (each) Stock
377030380 WASHER $23.85 To Order
377030381 WASHER $6.14 To Order
377030382 WASHER $7.27 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13531734 STUD $26.68 To Order
Photo Part No Description Price (each) Stock
13507521 WASHER $3.69 To Order
Photo Part No Description Price (each) Stock
387000329 WASHER $6.66 ARRIVING SOON
Photo Part No Description Price (each) Stock
14048825 NUT $6.14 To Order
Photo Part No Description Price (each) Stock
196071 SCREW $7.81 To Order
Photo Part No Description Price (each) Stock
14496825 WASHER $1.73 IN STOCK
Photo Part No Description Price (each) Stock
15503915 NUT $2.99 To Order
Photo Part No Description Price (each) Stock
196071 SCREW $7.81 To Order
Photo Part No Description Price (each) Stock
196521 FRONT FORK $145.70 To Order
Photo Part No Description Price (each) Stock
199644 WASHER $3.69 To Order
199645 WASHER $3.69 To Order
199646 WASHER $3.69 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14496825 WASHER $1.73 IN STOCK
Photo Part No Description Price (each) Stock
15503915 NUT $2.99 To Order
Photo Part No Description Price (each) Stock
196522 REAR FORK $139.24 To Order
Photo Part No Description Price (each) Stock
208783 SHIM $8.84 To Order

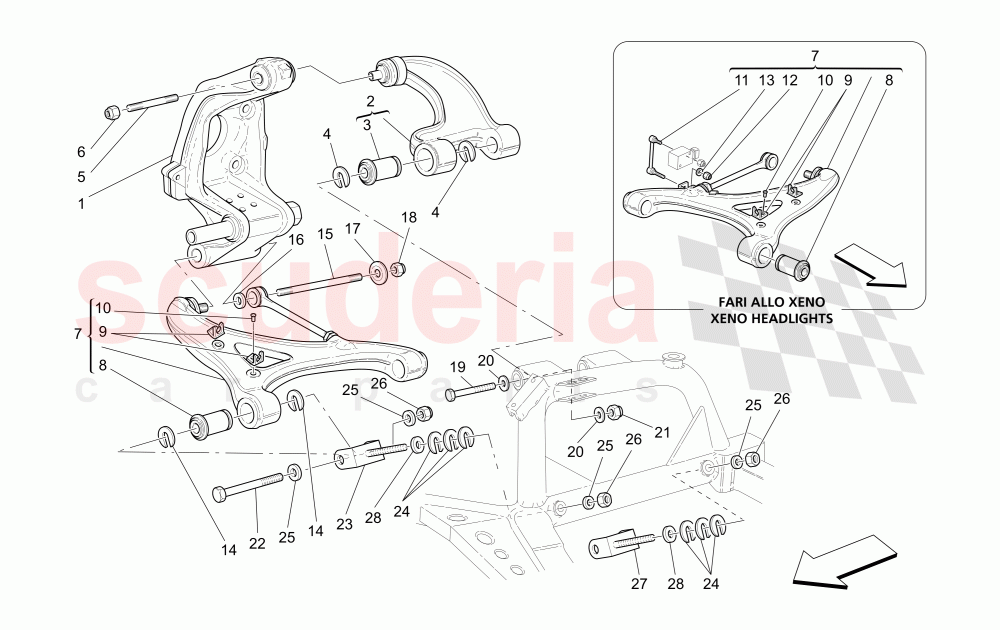

REAR SUSPENSION of Maserati Maserati GranSport Coupe (2005-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189335
L.H. REAR HUB HOLDER 		$1,021.48 (10.8% off) 1
IN
1 189334
R.H. REAR HUB HOLDER 		$921.21 (19.6% off) 1
IN
2 196779
COMPLETE UPPER LEVER 		$1,314.44 2
IN
3 186496
FLANBLOC 		$223.73 4
IN
4 377030382
WASHER
Thickness mm. 3,00 		$7.27 -
IN
4 377030379
WASHER
Thickness mm. 0,75 		$6.14 -
IN
4 377030380
WASHER
Thickness mm. 1,00 		$23.85 -
IN
4 377030381
WASHER
Thickness mm. 1,75 		$6.14 -
IN
4 377030378
WASHER
Thickness mm. 0,50 		$5.04 -
IN
5 13530624
STUD 		$34.30 (6.2% off) 2
IN
6 14048825
NUT 		$6.14 (20.1% off) 2
IN
7 196776
COMPLETE L.H. LOWER LEVER
Standard - FOR VEHICLES WITH ASSEMBLY 		$2,639.17 (4.7% off) 1
IN
7 198027
COMPLETE R.H. LOWER LEVER
For cars with assembly number lower than 7732 provide two forks cod.196521 		$2,639.17 (4.7% off) 1
IN
7 198501
COMPLETE L.H. LOWER LEVER
Optional- -Xeno headlights- -Not for USA and CDN 		$2,697.83 (2.6% off) 1
IN
8 186494
FLANBLOC 		$164.89 (17.4% off) 4
IN
9 387000393
ABS CABLE BRACKET 		$90.12 (22.4% off) 4
IN
10 13684370
RIVET 		$1.96 4
IN
11 188632
TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER
Valid for opt. Xeno headlights- -Not for USA and CDN 		$102.55 (3.1% off) 1
IN
12 14039614
NUT
Valid for opt. Xeno headlights- -Not for USA and CDN
IN STOCK 		$1.87 1
IN
13 14498805
WASHER
Valid for opt. Xeno headlights- -Not for USA and CDN 		$1.73 1
IN
14 377030380
WASHER
Thickness mm. 1,00 		$23.85 -
IN
14 377030381
WASHER
Thickness mm. 1,75 		$6.14 -
IN
14 377030382
WASHER
Thickness mm. 3,00 		$7.27 -
IN
14 377030378
WASHER
Thickness mm. 0,50 		$5.04 -
IN
14 377030379
WASHER
Thickness mm. 0,75 		$6.14 -
IN
15 13531734
STUD 		$26.68 (8% off) 2
IN
16 13507521
WASHER 		$3.69 2
IN
17 387000329
WASHER
ARRIVING SOON 		$6.66 2
IN
18 14048825
NUT 		$6.14 (20.1% off) 2
IN
19 196071
SCREW 		$7.81 4
IN
20 14496825
WASHER
IN STOCK 		$1.73 8
IN
21 15503915
NUT 		$2.99 4
IN
22 196071
SCREW 		$7.81 4
IN
23 196521
FRONT FORK 		$145.70 (4.3% off) 2
IN
24 199644
WASHER
Thickness mm. 0,20 		$3.69 -
IN
24 199645
WASHER
Thickness mm. 0,30 		$3.69 -
IN
24 199646
WASHER
Thickness mm. 0,40 		$3.69 -
IN
24 377030379
WASHER
Thickness mm. 0,75 		$6.14 -
IN
24 377030380
WASHER
Thickness mm. 1,00 		$23.85 -
IN
24 377030381
WASHER
Thickness mm. 1,75 		$6.14 -
IN
24 377030382
WASHER
Thickness mm. 3,00 		$7.27 -
IN
24 377030378
WASHER
Thickness mm. 0,50 		$5.04 -
IN
25 14496825
WASHER
IN STOCK 		$1.73 12
IN
26 15503915
NUT 		$2.99 8
IN
27 196522
REAR FORK 		$139.24 (8.5% off) 2
IN
28 208783
SHIM 		$8.84 4
IN
