Lay Shaft Gears

Maserati 4200 Coupe (2002-2004) CC

Find Your Part

Maserati 4200 Coupe (2002-2004) CC - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
185679 COMPLETE BEVEL SET $917.20 To Order
Photo Part No Description Price (each) Stock
16287734 SCREW $11.81 To Order
Photo Part No Description Price (each) Stock
185022 ROLLER BEARING $145.65 To Order
Photo Part No Description Price (each) Stock
185046 SPACER RING $67.56 To Order
185047 SPACER RING $67.56 To Order
185045 SPACER RING $67.56 To Order
Photo Part No Description Price (each) Stock
185043 SPACER RING $26.17 To Order
185044 SPACER RING $26.17 To Order
185042 SPACER RING $36.65 To Order
Photo Part No Description Price (each) Stock
185020 BEARING SUPPORT $117.16 To Order
Photo Part No Description Price (each) Stock
185021 ROLLER BEARING $112.78 To Order
Photo Part No Description Price (each) Stock
196667 GEARBOX RING NUT M45 X 1.5 $142.33 To Order
Photo Part No Description Price (each) Stock
182287 3rd AND 4th DRIVEN GEAR $347.06 To Order
Photo Part No Description Price (each) Stock
182288 5th AND 6th DRIVEN GEAR $249.03 To Order
Photo Part No Description Price (each) Stock
183974 RING $55.00 To Order
185038 RING $61.27 To Order
185039 RING $61.27 To Order
Photo Part No Description Price (each) Stock
184014 ROLLER CAGE $27.38 To Order
Photo Part No Description Price (each) Stock
182293 COMPLETE PINION FOR 2nd GEAR $231.00 To Order
198263 COMPLETE PINION FOR 2nd GEAR $255.79 To Order
208626 COMPLETE PINION FOR 2nd GEAR $282.82 To Order
Photo Part No Description Price (each) Stock
183976 CIRCLIP $21.59 To Order
185036 CIRCLIP $50.78 To Order
185037 CIRCLIP $41.25 To Order
Photo Part No Description Price (each) Stock
183971 BUSHING $133.88 To Order
Photo Part No Description Price (each) Stock
184016 ROLLER CAGE $35.91 To Order
Photo Part No Description Price (each) Stock
182299 COMPLETE PINION FOR 1st GEAR $537.48 To Order
182299 COMPLETE PINION FOR 1st GEAR $537.48 To Order
208625 COMPLETE PINION FOR 1st GEAR $578.04 To Order
Photo Part No Description Price (each) Stock
183972 RING $74.41 To Order
185040 RING $97.33 To Order
185041 RING $54.05 To Order
Photo Part No Description Price (each) Stock
184020 ROLLER BEARING $167.54 To Order
Photo Part No Description Price (each) Stock
184042 CIRCLIP $15.32 To Order
Photo Part No Description Price (each) Stock
199534 COMPLETE PINION FOR REVERSE GEAR $662.56 To Order
Photo Part No Description Price (each) Stock
184018 ROLLER CAGE $35.91 To Order
Photo Part No Description Price (each) Stock
326260 REVERSE GEAR COMPLETE SYNCHRONIZER $1,858.08 To Order
Photo Part No Description Price (each) Stock
184041 CIRCLIP $12.80 To Order
Photo Part No Description Price (each) Stock
14303624 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
10571379 WASHER $1.92 To Order
Photo Part No Description Price (each) Stock
182279 COMPLETE OIL PUMP $582.56 To Order
Photo Part No Description Price (each) Stock
208627 1st AND 2nd GEAR COMPLETE SYNCHRONIZER $951.01 To Order
185164 1ST AND 2ND SPEED SYNCHRONISER $1,409.61 To Order
198267 1st AND 2nd GEAR COMPLETE SYNCHRONIZER $539.72 To Order
Photo Part No Description Price (each) Stock
182415 PIN $71.30 To Order
Photo Part No Description Price (each) Stock
184017 NEEDLE BEARING $15.20 To Order
Photo Part No Description Price (each) Stock
183975 RING $47.77 To Order
Photo Part No Description Price (each) Stock
199532 IDLE GEAR FOR REVERSE $708.74 To Order
Photo Part No Description Price (each) Stock
195991 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $16.97 To Order
188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $19.82 To Order
Photo Part No Description Price (each) Stock
193440 PADS/SYNCHRO REVERSE GEAR KIT $7.37 To Order
Photo Part No Description Price (each) Stock
182326 SPACER $68.38 To Order
Photo Part No Description Price (each) Stock
185713 OIL GALLERY $27.70 To Order
Photo Part No Description Price (each) Stock
196524 STOP RING $10.03 To Order
Photo Part No Description Price (each) Stock
196523 ROLLER CAGE $21.03 To Order
Photo Part No Description Price (each) Stock
196663 RING $103.85 To Order
196509 RING $89.98 To Order
196664 RING $103.85 To Order
Photo Part No Description Price (each) Stock
185040 RING $97.33 To Order
185041 RING $54.05 To Order

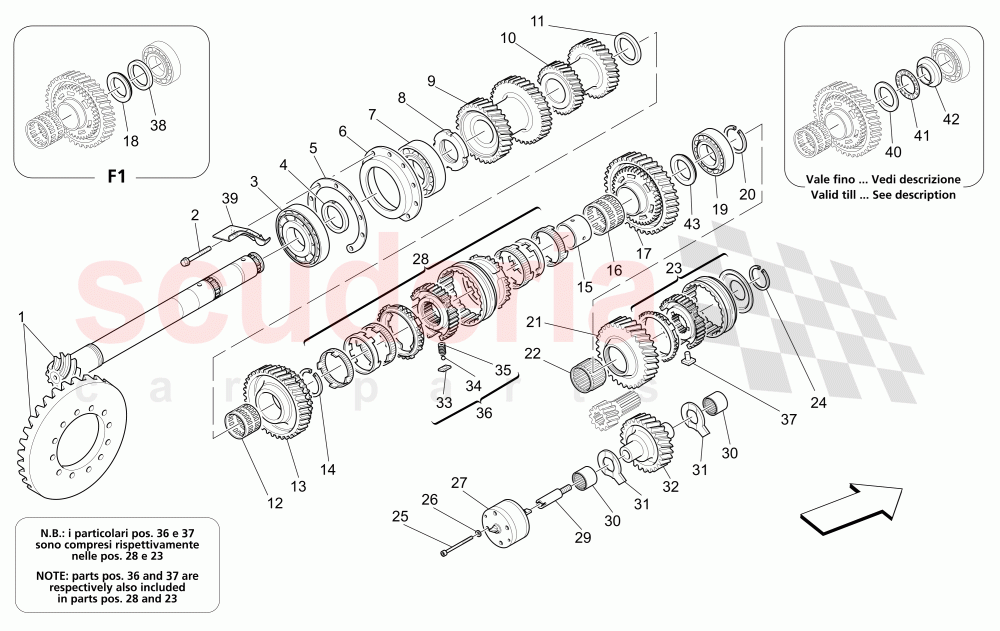

LAY SHAFT GEARS of Maserati Maserati 4200 Coupe (2002-2004) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 185679
COMPLETE BEVEL SET 		$917.20 (8.6% off) 1
TO
2 16287734
SCREW 		$11.81 9
TO
3 185022
ROLLER BEARING 		$145.65 (40.4% off) 1
TO
4 185046
SPACER RING
Thickness mm. 6,85- -Possible fitting 		$67.56 1
TO
4 185047
SPACER RING
Thickness mm. 6,60- -Possible fitting 		$67.56 1
TO
4 185045
SPACER RING
Thickness mm. 7,10 		$67.56 1
TO
5 185043
SPACER RING
Thickness mm. 2,5- -Possible fitting 		$26.17 1
TO
5 185044
SPACER RING
Thickness mm. 2,2- -Possible fitting 		$26.17 (25.4% off) 1
TO
5 185042
SPACER RING
Thickness mm. 2,8 		$36.65 1
TO
6 185020
BEARING SUPPORT 		$117.16 (61.2% off) 1
TO
7 185021
ROLLER BEARING 		$112.78 1
TO
8 196667
GEARBOX RING NUT M45 X 1.5 		$142.33 1
TO
9 182287
3rd AND 4th DRIVEN GEAR 		$347.06 (8.1% off) 1
TO
10 182288
5th AND 6th DRIVEN GEAR 		$249.03 (8.2% off) 1
TO
11 183974
RING
Thickness mm. 4,30 		$55.00 1
TO
11 185038
RING
Thickness mm. 3,95- -Possible fitting 		$61.27 1
TO
11 185039
RING
Thickness mm. 3,60- -Possible fitting 		$61.27 1
TO
12 184014
ROLLER CAGE 		$27.38 1
TO
13 182293
COMPLETE PINION FOR 2nd GEAR
Valid for F1 		$231.00 (1.3% off) 1
TO
13 198263
COMPLETE PINION FOR 2nd GEAR
Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$255.79 1
TO
13 208626
COMPLETE PINION FOR 2nd GEAR
Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017 		$282.82 1
TO
14 183976
CIRCLIP
Thickness mm. 2,10 		$21.59 1
TO
14 185036
CIRCLIP
Thickness mm. 1,85- -Possible fitting 		$50.78 1
TO
14 185037
CIRCLIP
Thickness mm. 1,60- -Possible fitting 		$41.25 (35.2% off) 1
TO
15 183971
BUSHING 		$133.88 1
TO
16 184016
ROLLER CAGE 		$35.91 1
TO

182299

COMPLETE PINION FOR 1ST GEAR

from $537.48 (8.7% off)

17 208625
COMPLETE PINION FOR 1st GEAR
Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017 		$578.04 1
TO
18 183972
RING
Thickness mm. 5,10- -Valid for F1 		$74.41 (23.2% off) 1
TO

185040

RING

from $97.33

185041

RING

from $54.05

19 184020
ROLLER BEARING 		$167.54 1
TO
20 184042
CIRCLIP 		$15.32 1
TO
21 199534
COMPLETE PINION FOR REVERSE GEAR 		$662.56 1
TO
22 184018
ROLLER CAGE 		$35.91 1
TO
23 326260
REVERSE GEAR COMPLETE SYNCHRONIZER 		$1,858.08 1
TO
24 184041
CIRCLIP 		$12.80 1
TO
25 14303624
SCREW 		$2.74 4
TO
26 10571379
WASHER 		$1.92 4
TO
27 182279
COMPLETE OIL PUMP 		$582.56 (2.5% off) 1
TO
28 208627
1st AND 2nd GEAR COMPLETE SYNCHRONIZER
Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017 		$951.01 1
TO
28 185164
1ST AND 2ND SPEED SYNCHRONISER
Valid for F1 		$1,409.61 1
TO
28 198267
1st AND 2nd GEAR COMPLETE SYNCHRONIZER
Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$539.72 1
TO
29 182415
PIN 		$71.30 (7.1% off) 1
TO
30 184017
NEEDLE BEARING 		$15.20 2
TO
31 183975
RING 		$47.77 2
TO
32 199532
IDLE GEAR FOR REVERSE 		$708.74 1
TO
36 195991
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
Not for F1 		$16.97 (14.5% off) 1
TO
36 188320
PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
Valid for F1 		$19.82 1
TO
37 193440
PADS/SYNCHRO REVERSE GEAR KIT 		$7.37 1
TO
38 182326
SPACER
Valid for F1 		$68.38 1
TO
39 185713
OIL GALLERY 		$27.70 1
TO
40 196524
STOP RING
Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$10.03 1
TO
41 196523
ROLLER CAGE
Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$21.03 1
TO
42 196663
RING
Thickness mm. 10,10- -Possible fitting- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$103.85 1
TO
42 196509
RING
Thickness mm. 10,60- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$89.98 1
TO
42 196664
RING
Thickness mm. 10,35- -Possible fitting- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017 		$103.85 1
TO
