INNER TRIMS: DOOR PANELS of Maserati Maserati 3200 GT / Assetto Corsa

Photo	Part No	Description	Price (each)	Stock
	9810092	RH DOOR PANEL ASSY	Enquire	To Order
	9810091	LH DOOR PANEL ASSY	Enquire	To Order
	9810090	RH DOOR PANEL ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9810067	LH DOOR PANEL CENTRE FRAME COATING	Enquire	To Order
	9810068	RH CENTRE PANEL COATING ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810070	RH CENTRE PANEL ASSY	Enquire	To Order
	9810069	LH CENTRE PANEL ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300600	LOUD-SPEAKER PLATE	$9.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9810071	LH DOOR PANEL COATING	Enquire	To Order
	9810072	RH DOOR PANELCOATING.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9810076	RH DOOR PANEL ASSY	Enquire	To Order
	9810075	LH DOOR PANEL ASSY	Enquire	To Order
	9810074	RH DOOR PANEL ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	388300377	LH WATER SHIELD ASSY	Enquire	To Order
	388300378	RH WATER SHIELD ASSY	$41.78	To Order

Photo	Part No	Description	Price (each)	Stock
	9810077	LH DOOR PANEL ARM REST	Enquire	To Order
	9810078	RH DOOR PANEL ARM REST	Enquire	To Order
	9810079	LH DOOR PANEL ARM REST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9810082	RH DOOR PANEL POCKET	Enquire	To Order
	9810081	LH DOOR PANEL POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46427292	LH REFLECTOR	$12.23	To Order
	46427291	RH REFLECTOR	$12.23	To Order

Photo	Part No	Description	Price (each)	Stock
	15180311	RIVET	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	46408953	BLOCK	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	7745194	BUSHING	$1.73	To Order

Photo	Part No	Description	Price (each)	Stock
	388300735	BULLET CATCH	Enquire	To Order
	14188181	Retainer	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	388300445	L.H. LOWER WATER SHIELD	$3.63	To Order
	388300446	R.H. LOWER WATER SHIELD	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	388300443	L.H. UPPER WATER SHIELD	$202.33	To Order
	388300444	R.H. UPPER WATER SHIELD	$202.33	To Order

Photo	Part No	Description	Price (each)	Stock
	388300441	L.H. LOUD SPEAKER WATER SHIELD	$3.09	To Order
	388300442	R.H. LOUD SPEAKER WATER SHIELD	$3.99	To Order

INNER TRIMS: DOOR PANELS of Maserati Maserati 3200 GT / Assetto Corsa

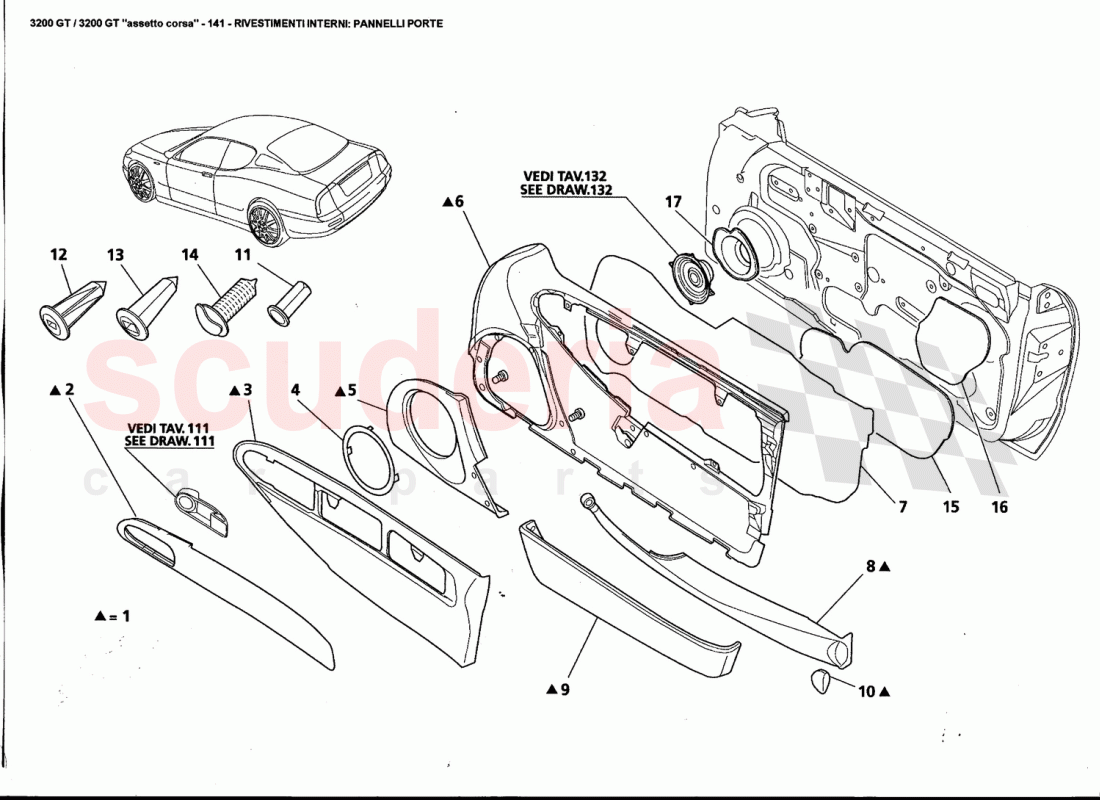

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	9810092	RH DOOR PANEL ASSY	9810092 RH DOOR PANEL ASSY Only AUS- / In the order, add the two digits of color code	-	-		Enquire
	1	9810091	LH DOOR PANEL ASSY	9810091 LH DOOR PANEL ASSY Only AUS / In the order, add the two digits of color code	-	-		Enquire
	1	9810090	RH DOOR PANEL ASSY	9810090 RH DOOR PANEL ASSY Not for AUS / In the order, add the two digits of color code	-	-		Enquire
	1	9810089	LH DOOR PANEL ASSY	9810089 LH DOOR PANEL ASSY Not for AUS / In the order, add the two digits of color code	-	-		Enquire
	2	9810067	LH DOOR PANEL CENTRE FRAME COATING	9810067 LH DOOR PANEL CENTRE FRAME COATING In the order, add the two digits of color code	-	1		Enquire
	2	9810068	RH CENTRE PANEL COATING ASSY	9810068 RH CENTRE PANEL COATING ASSY In the order, add the two digits of color code	-	1		Enquire
	3	9810070	RH CENTRE PANEL ASSY	9810070 RH CENTRE PANEL ASSY In the order, add the two digits of color code	-	1		Enquire
	3	9810069	LH CENTRE PANEL ASSY	9810069 LH CENTRE PANEL ASSY In the order, add the two digits of color code	-	1		Enquire
	4	388300600	LOUD-SPEAKER PLATE IN STOCK	388300600 LOUD-SPEAKER PLATE IN STOCK	$9.19	2
	5	9810071	LH DOOR PANEL COATING	9810071 LH DOOR PANEL COATING In the order, add the two digits of color code	-	1		Enquire
	5	9810072	RH DOOR PANELCOATING.	9810072 RH DOOR PANELCOATING. In the order, add the two digits of color code	-	1		Enquire
	6	9810076	RH DOOR PANEL ASSY	9810076 RH DOOR PANEL ASSY Only for AUS / In the order, add the two digits of color code	-	1		Enquire
	6	9810075	LH DOOR PANEL ASSY	9810075 LH DOOR PANEL ASSY Only for AUS / In the order, add the two digits of color code	-	1		Enquire
	6	9810074	RH DOOR PANEL ASSY	9810074 RH DOOR PANEL ASSY Not for AUS / In the order, add the two digits of color code	-	1		Enquire
	6	9810073	LH DOOR PANEL ASSY	9810073 LH DOOR PANEL ASSY Not for AUS / In the order, add the two digits of color code	-	1		Enquire
	7	388300377	LH WATER SHIELD ASSY	388300377 LH WATER SHIELD ASSY	-	1		Enquire
	7	388300378	RH WATER SHIELD ASSY	388300378 RH WATER SHIELD ASSY	$41.78	1
	8	9810077	LH DOOR PANEL ARM REST	9810077 LH DOOR PANEL ARM REST Not for AUS / In the order, add the two digits of color code	-	1		Enquire
	8	9810078	RH DOOR PANEL ARM REST	9810078 RH DOOR PANEL ARM REST Not for AUS / In the order, add the two digits of color code	-	1		Enquire
	8	9810079	LH DOOR PANEL ARM REST	9810079 LH DOOR PANEL ARM REST Only for AUS / In the order, add the two digits of color code	-	1		Enquire
	8	9810080	RH DOOR PANEL ARM REST	9810080 RH DOOR PANEL ARM REST Only for AUS / In the order, add the two digits of color code	-	1		Enquire
	9	9810082	RH DOOR PANEL POCKET	9810082 RH DOOR PANEL POCKET In the order, add the two digits of color code	-	1		Enquire
	9	9810081	LH DOOR PANEL POCKET	9810081 LH DOOR PANEL POCKET In the order, add the two digits of color code	-	1		Enquire
	10	46427292	LH REFLECTOR	46427292 LH REFLECTOR	$12.23 MSRP: ~~12.94~~ (5.5% off)	1
	10	46427291	RH REFLECTOR	46427291 RH REFLECTOR	$12.23 MSRP: ~~12.94~~ (5.5% off)	1
	11	15180311	RIVET	15180311 RIVET As necessary	$2.96	-
	12	46408953	BLOCK	46408953 BLOCK As necessary	$1.12	-
	13	7745194	BUSHING	7745194 BUSHING As necessary	$1.73	-
	14	388300735	BULLET CATCH	388300735 BULLET CATCH As necessary / Valid from Ass. Nr.2457	-	-		Enquire
	14	14188181	Retainer IN STOCK	14188181 Retainer As necessary / Valid till Ass. Nr.2456 IN STOCK	$1.68	-
	15	388300445	L.H. LOWER WATER SHIELD	388300445 L.H. LOWER WATER SHIELD	$3.63	1
	15	388300446	R.H. LOWER WATER SHIELD	388300446 R.H. LOWER WATER SHIELD	$3.52	1
	16	388300443	L.H. UPPER WATER SHIELD	388300443 L.H. UPPER WATER SHIELD	$202.33	1
	16	388300444	R.H. UPPER WATER SHIELD	388300444 R.H. UPPER WATER SHIELD	$202.33	1
	17	388300441	L.H. LOUD SPEAKER WATER SHIELD	388300441 L.H. LOUD SPEAKER WATER SHIELD	$3.09	1
	17	388300442	R.H. LOUD SPEAKER WATER SHIELD	388300442 R.H. LOUD SPEAKER WATER SHIELD	$3.99	1
