Maserati 3200 GT / Assetto Corsa - ELECTRICAL SYSTEM: ENGINE HARNESS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
383010153 ALTERNATOR AND STARTING MOTOR WIRING $76.24 To Order
383000153 ALTERNATOR AND STARTING MOTOR WIRING $260.51 To Order
Photo Part No Description Price (each) Stock
383700168 ELECTRONIC INJECTION WIRING $2,564.71 To Order
383700136 ELECTRONIC INJECTION WIRING $2,564.71 To Order
383700106 ELECTRONIC INJECTION WIRING $1,162.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
383000123 ENGINE WIRING $634.80 To Order
Photo Part No Description Price (each) Stock
384300378 COVER $24.20 To Order
Photo Part No Description Price (each) Stock
14496400 SPRING WASHER $1.50 To Order
Photo Part No Description Price (each) Stock
13276177 SCREW $2.33 To Order
Photo Part No Description Price (each) Stock
980000983 DIAGNOSTIC SOCKET CAP $4.08 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
383000173 LH LAMBDA FEELER CABLE $18.94 To Order
Photo Part No Description Price (each) Stock
383000174 RH LAMBDA FEELER CABLE $17.96 To Order
Photo Part No Description Price (each) Stock
383700112 RELAY BRACKET $214.69 To Order

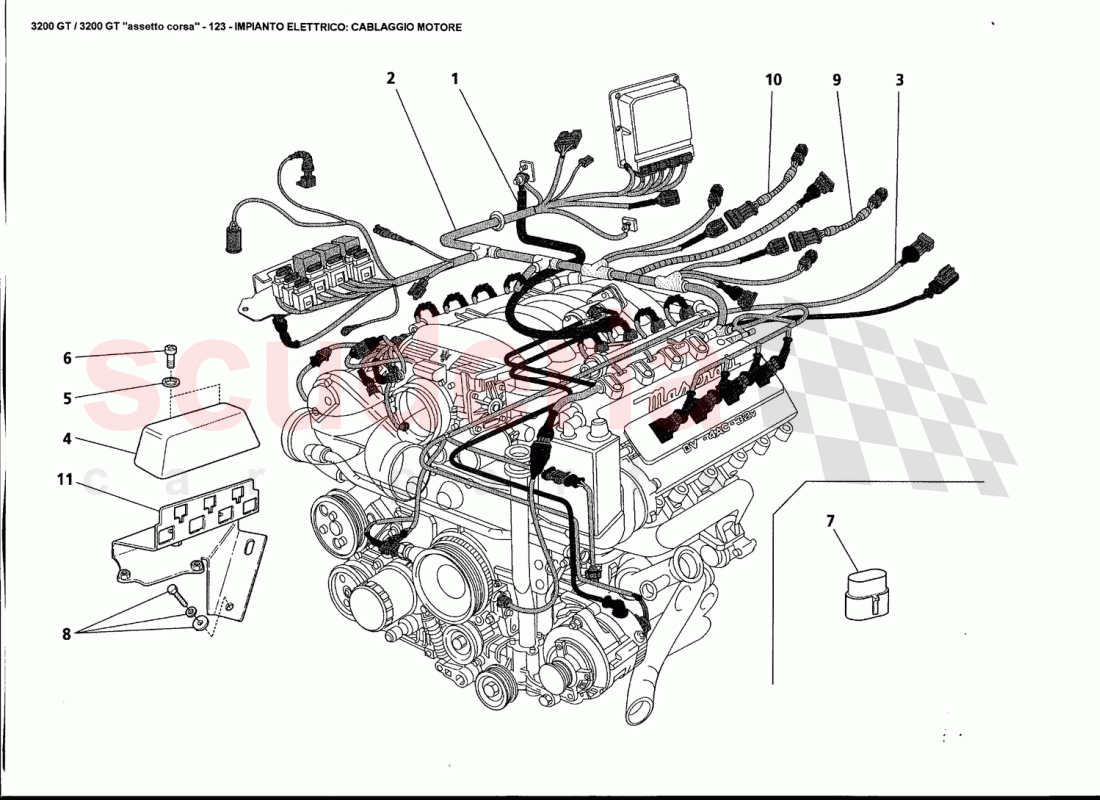

ELECTRICAL SYSTEM: ENGINE HARNESS of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 383010153
ALTERNATOR AND STARTING MOTOR WIRING
Only GD 		$76.24 1
TO
1 383000153
ALTERNATOR AND STARTING MOTOR WIRING
Only GS 		$260.51 1
TO
2 383700168
ELECTRONIC INJECTION WIRING
Valid from Ass. Nr.4452 		$2,564.71 1
TO
2 383700136
ELECTRONIC INJECTION WIRING
Valid from Ass. Nr.3810 to Ass. Nr.4451 		$2,564.71 1
TO
2 383700106
ELECTRONIC INJECTION WIRING
Valid from Ass.Nr. 1834 till Ass.Nr.3809 		$1,162.20 1
TO
2 383700105
ELECTRONIC INJECTION WIRING
Valid till Ass.Nr. 1833 		$818.75 1
TO
3 383000123
ENGINE WIRING 		$634.80 1
TO
4 384300378
COVER 		$24.20 1
TO
5 14496400
SPRING WASHER 		$1.50 2
TO
6 13276177
SCREW 		$2.33 2
TO
7 980000983
DIAGNOSTIC SOCKET CAP 		$4.08 1
TO
8 11730624
SCREW 		$2.74 2
TO
9 383000173
LH LAMBDA FEELER CABLE
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$18.94 1
TO
10 383000174
RH LAMBDA FEELER CABLE
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$17.96 1
TO
11 383700112
RELAY BRACKET 		$214.69 1
TO
