Name: SUSPENSION SUB-FRAME REAR
Rating: 5.0 (1 reviews)

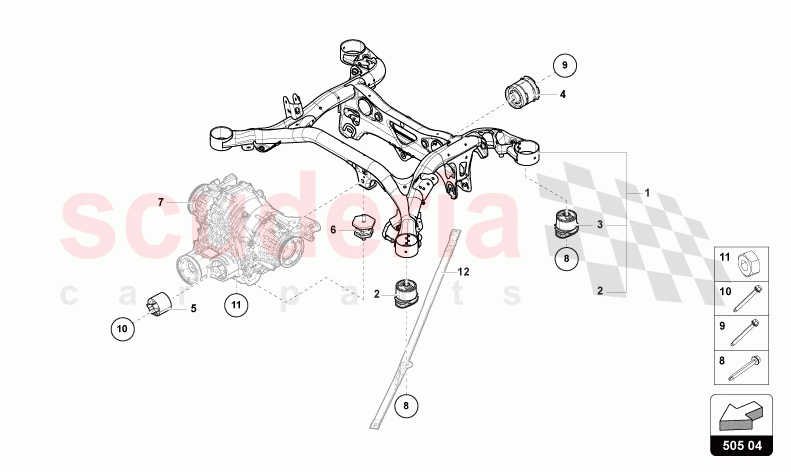

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0505145B	HYDRO-MOUNTING	$135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505145J	BONDED RUBBER BUSH	$109.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0599257R	BONDED RUBBER BUSH	$58.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0599381R	BONDED RUBBER BUSH	$37.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0599273G	BONDED RUBBER BUSH	$47.16	To Order

Photo	Part No	Description	Price (each)	Stock
	N91228001	HEXAGON FLANGE SCREW (COMBI)	$13.98	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640901	HEX COLLARED BOLT	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N91201301	HEXAGON HEAD BOLT (COMBI)	$10.56	To Order

Photo	Part No	Description	Price (each)	Stock
	N91157401	HEXAGON COLLAR NUT	$2.03	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	4M0505235CA	SUPPORT FRAME	4M0505235CA SUPPORT FRAME REAR	$10,173.32	1	TO
1	4M0505235CH	SUPPORT FRAME	4M0505235CH SUPPORT FRAME REAR	$1,504.00	1	TO
2	4M0505145B	HYDRO-MOUNTING	4M0505145B HYDRO-MOUNTING FRONT	$135.32	1	TO
3	4M0505145J	BONDED RUBBER BUSH	4M0505145J BONDED RUBBER BUSH REAR	$109.29	1	TO
4	4M0599257R	BONDED RUBBER BUSH	4M0599257R BONDED RUBBER BUSH	$58.73	2	TO
5	4M0599381R	BONDED RUBBER BUSH	4M0599381R BONDED RUBBER BUSH	$37.20	1	TO
6	4M0599273G	BONDED RUBBER BUSH	4M0599273G BONDED RUBBER BUSH	$47.16	1	TO
8	N91228001	HEXAGON FLANGE SCREW (COMBI)	N91228001 HEXAGON FLANGE SCREW (COMBI) M14X1 -5X145	$13.98	4	TO
9	N10640901	HEX COLLARED BOLT	N10640901 HEX COLLARED BOLT M12X1 -5X110X90	$7.70	5	TO
10	N91201301	HEXAGON HEAD BOLT (COMBI)	N91201301 HEXAGON HEAD BOLT (COMBI) M14X1 -5X120	$10.56	1	TO
11	N91157401	HEXAGON COLLAR NUT IN STOCK	N91157401 HEXAGON COLLAR NUT M8 IN STOCK	$2.03	1	IN

Suspension Sub-Frame Rear

Lamborghini Urus Performante
