Name: OIL SUMP
Rating: 5.0 (1 reviews)

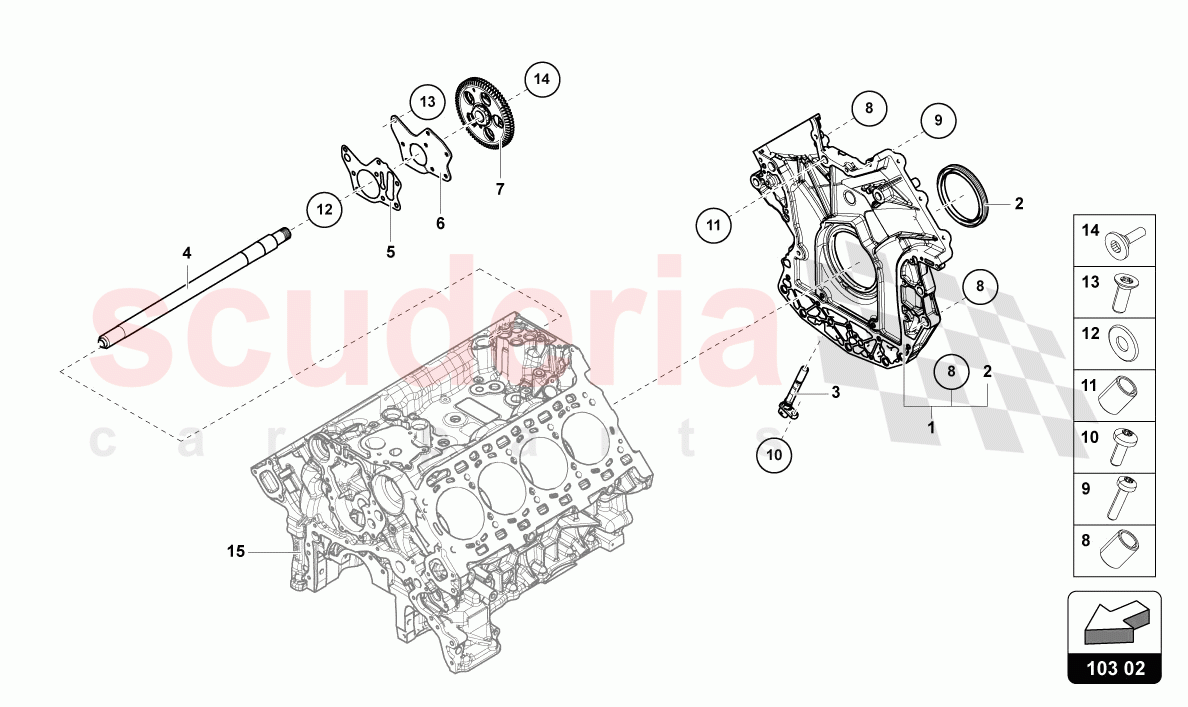

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	06M103173R	SEALING FLANGE	$531.99	To Order

Photo	Part No	Description	Price (each)	Stock
	06E103051J	SHAFT OIL SEAL	$51.78	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2103567	INTERMEDIATE SHAFT	$102.99	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2103147	SEAL	$19.12	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2103407	COVER PLATE	$34.80	To Order

Photo	Part No	Description	Price (each)	Stock
	0P2103293G	INTERMEDIATE GEAR WITH HUB	$250.89	To Order

Photo	Part No	Description	Price (each)	Stock
	022103139B	DOWEL SLEEVE	$7.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10413405	HEXAGON SOCKET FLAT HEAD BOLT M6 X 25	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	012301153H	DOWEL SLEEVE	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	0P2103323	THRUST WASHER	$15.19	To Order

Photo	Part No	Description	Price (each)	Stock
	N10448506	COUNTERSUNK BOLT	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	06M103448	LOCATING BOLT	$4.33	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	06M103173R	SEALING FLANGE	06M103173R SEALING FLANGE REAR	$531.99	1	TO
2	06E103051J	SHAFT OIL SEAL	06E103051J SHAFT OIL SEAL	$51.78	1	TO
4	0P2103567	INTERMEDIATE SHAFT	0P2103567 INTERMEDIATE SHAFT	$102.99	1	TO
5	0P2103147	SEAL	0P2103147 SEAL	$19.12	1	TO
6	0P2103407	COVER PLATE	0P2103407 COVER PLATE	$34.80	1	TO
7	0P2103293G	INTERMEDIATE GEAR WITH HUB	0P2103293G INTERMEDIATE GEAR WITH HUB REAR	$250.89	1	TO
8	022103139B	DOWEL SLEEVE IN STOCK	022103139B DOWEL SLEEVE 16X13 -5 IN STOCK	$7.62	2	IN
9	N10413405	HEXAGON SOCKET FLAT HEAD BOLT M6 X 25 IN STOCK	N10413405 HEXAGON SOCKET FLAT HEAD BOLT M6 X 25 M6X25 IN STOCK	$1.70 MSRP: ~~7.26~~ (76.6% off)	17	IN
10	N91126601	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.76 MSRP: ~~7.30~~ (89.6% off)	1	IN
11	012301153H	DOWEL SLEEVE IN STOCK	012301153H DOWEL SLEEVE 12X13 -5 IN STOCK	$1.39	2	IN
12	0P2103323	THRUST WASHER	0P2103323 THRUST WASHER	$15.19	1	TO
13	N10448506	COUNTERSUNK BOLT	N10448506 COUNTERSUNK BOLT M6X16	$0.73	8	TO
14	06M103448	LOCATING BOLT	06M103448 LOCATING BOLT M10X30	$4.33	1	TO

Oil Sump

Lamborghini Urus Performante
