Fuel Tank

Lamborghini Urus (2018-2019)

Find Your Part

Lamborghini Urus (2018-2019) - FUEL TANK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0201021GK FUEL TANK $4,347.82 To Order
4M0201021FN FUEL TANK $5,740.14 To Order

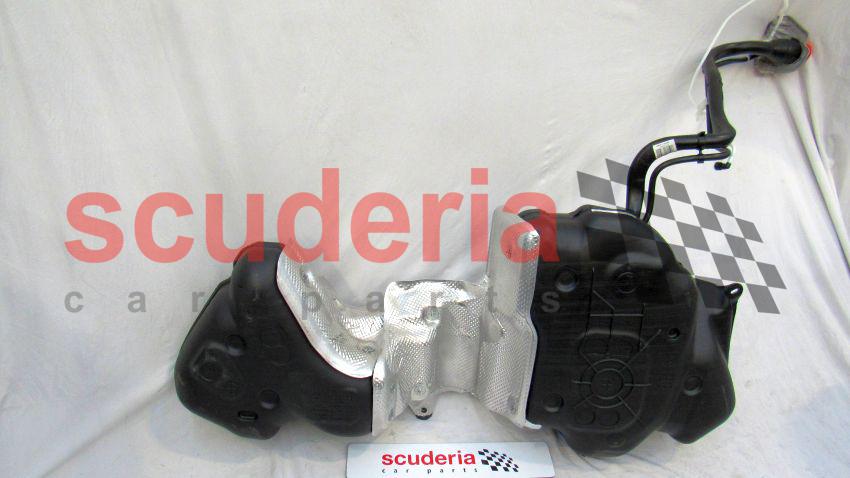

4M0201021FP FUEL TANK $5,746.72 To Order
Photo Part No Description Price (each) Stock
SENDER FOR FUEL GAUGE Enquire To Order
Photo Part No Description Price (each) Stock
N91247301 INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT) $3.43 To Order
Photo Part No Description Price (each) Stock
8K0201693D BUSH $4.68 To Order
Photo Part No Description Price (each) Stock
8K0201840D RUBBER BUSH $1.60 To Order
Photo Part No Description Price (each) Stock
N91042301 OVAL HEXAGON SOCKET HEAD BOLT $1.21 IN STOCK
Photo Part No Description Price (each) Stock
4M0201392C TENSIONING STRAP $47.96 To Order
Photo Part No Description Price (each) Stock
4M0201392F TENSIONING STRAP $47.96 To Order
Photo Part No Description Price (each) Stock
4M0201391C TENSIONING STRAP $47.96 To Order
Photo Part No Description Price (each) Stock
8K0201693C BUSH $4.68 To Order
Photo Part No Description Price (each) Stock
4M0919087AR FUEL DELIVERY MODULE Enquire To Order
4M0919087BL FUEL DELIVERY MODULE $770.63 IN STOCK
4M0919087BM FUEL DELIVERY MODULE $802.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0201220C FUEL LINE $44.87 To Order
4M0201220E FUEL LINE $44.87 To Order
Photo Part No Description Price (each) Stock
RESUPPLY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
1 SET FUEL PIPES Enquire To Order
Photo Part No Description Price (each) Stock
N91237201 HEXAGON HEAD BOLT (COMBI) $3.09 To Order
Photo Part No Description Price (each) Stock
4M0201308H HEAT SHIELD $37.26 To Order
Photo Part No Description Price (each) Stock
4M0201308G HEAT SHIELD $36.07 To Order
Photo Part No Description Price (each) Stock
N90335004 CLAMPING WASHER $1.23 IN STOCK
Photo Part No Description Price (each) Stock
8K0201274B DAMPING $5.59 To Order
Photo Part No Description Price (each) Stock
443809948 CLIP $0.67 To Order
Photo Part No Description Price (each) Stock
8J0201449E BRACKET $0.57 To Order
Photo Part No Description Price (each) Stock
4ML201550 CAP WITH RETAINING STRAP FOR FUEL TANK $1,615.65 To Order
Photo Part No Description Price (each) Stock
4M0201974A GUARD PLATE FOR FUEL PIPE $42.50 To Order
GUARD PLATE FOR FUEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
N90757901 HEXAGON COLLAR NUT $1.64 IN STOCK
Photo Part No Description Price (each) Stock
CONTROL UNIT FOR FUEL TANK LEAK DIAGNOSIS Enquire To Order
Photo Part No Description Price (each) Stock
8K0201840C RUBBER BUSH $12.75 To Order
Photo Part No Description Price (each) Stock
REMOVABLE LID Enquire To Order
Photo Part No Description Price (each) Stock
SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1K0201375 UNION NUT $7.94 IN STOCK
Photo Part No Description Price (each) Stock
1J0919133B SEAL RING $17.22 To Order

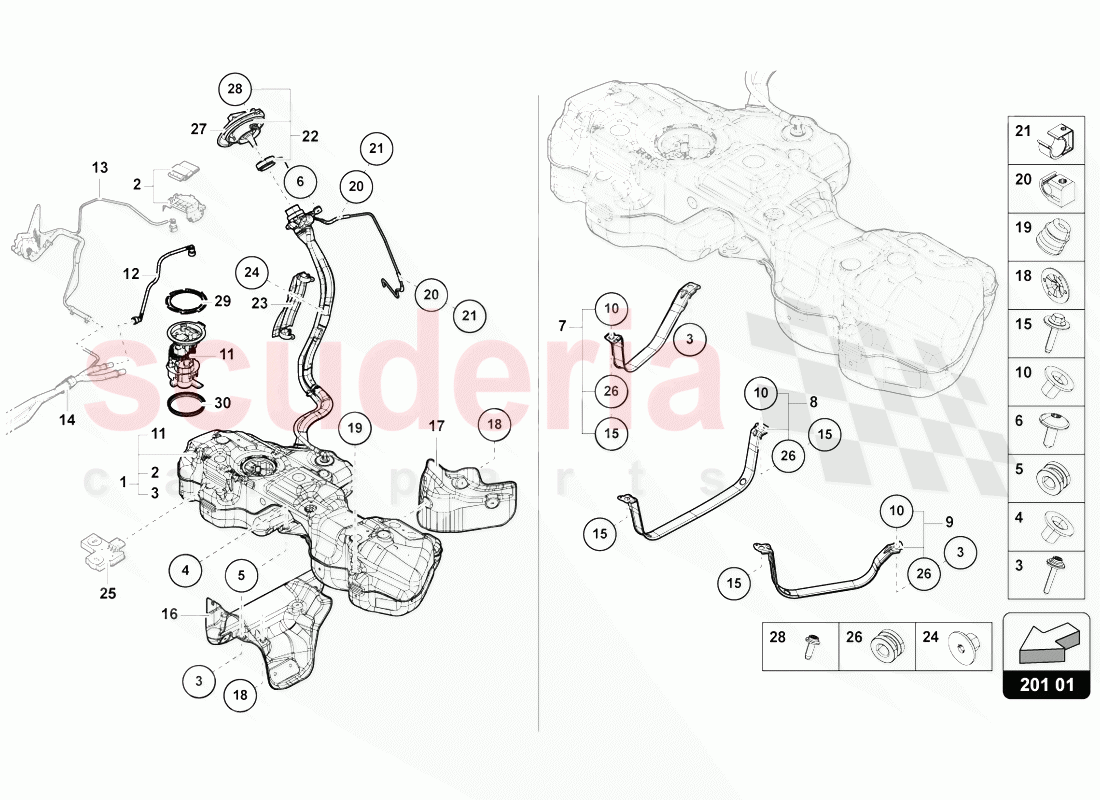

FUEL TANK of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0201021GK
FUEL TANK
WITH AUXILIARY HEATER - EURO 6 AJ/K/ L-85 L 		$4,347.82 -
TO
1 4M0201021FN
FUEL TANK
FOR NAR BRAZIL AND KOREA MARKETS-85 L 		$5,740.14 1
TO
1 4M0201021FP
FUEL TANK
WITHOUT AUXILIARY HEATER - EURO 6 PLUS-85 L 		$5,746.72 1
TO

SENDER FOR FUEL GAUGE

 -
3 N91247301
INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)
M8X50 		$3.43 1
TO
4 8K0201693D
BUSH
RIGHT 		$4.68 1
TO
5 8K0201840D
RUBBER BUSH
RIGHT 		$1.60 7
TO
6 N91042301
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
IN STOCK 		$1.21 (83.4% off) 2
IN
7 4M0201392C
TENSIONING STRAP
RIGHT 		$47.96 1
TO
8 4M0201392F
TENSIONING STRAP
CENTER 		$47.96 1
TO
9 4M0201391C
TENSIONING STRAP
LEFT 		$47.96 1
TO
10 8K0201693C
BUSH
FRONT 		$4.68 6
TO
11 4M0919087AR
FUEL DELIVERY MODULE
UNTIL VIN ZPBEA1ZL8KLA 00391 - W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30 		- -
PE
 Enquire
11 4M0919087BL
FUEL DELIVERY MODULE
FROM VIN ZPBEA1ZL8KLA 00392 - W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30
IN STOCK 		$770.63 1
IN
11 4M0919087BM
FUEL DELIVERY MODULE
FROM VIN ZPBEA1ZLXKLA 00412 - WITH AUXILIARY HEATER - ORDER ALSO REF 29 AND 30 		$802.58 1
TO
11 4M0919087AS
FUEL DELIVERY MODULE
UNTIL VIN ZPBEA1ZLXKLA 00412 - WITH AUXILIARY HEATER - ORDER ALSO REF 29 AND 30 		- -
PE
 Enquire
12 4M0201220C
FUEL LINE
FEED 		$44.87 1
TO
12 4M0201220E
FUEL LINE
FOR USA AND SOUTH COREAN MARKETS-FEED 		$44.87 1
TO
15 N91237201
HEXAGON HEAD BOLT (COMBI)
M8X40 		$3.09 4
TO
16 4M0201308H
HEAT SHIELD
CENTER 		$37.26 1
TO
17 4M0201308G
HEAT SHIELD
LEFT 		$36.07 1
TO
18 N90335004
CLAMPING WASHER
5X30
IN STOCK 		$1.23 (82.9% off) 4
IN
19 8K0201274B
DAMPING 		$5.59 7
TO
20 443809948
CLIP
1 POINT 		$0.67 2
TO
21 8J0201449E
BRACKET 		$0.57 2
TO
22 4ML201550
CAP WITH RETAINING STRAP FOR FUEL TANK
ROW 		$1,615.65 1
TO
23 4M0201974A
GUARD PLATE FOR FUEL PIPE
ONLY FOR USA AND SOUTH COREAN MARKETS 		$42.50 1
TO
24 N90757901
HEXAGON COLLAR NUT
5
IN STOCK 		$1.64 1
IN
26 8K0201840C
RUBBER BUSH 		$12.75 3
TO
29 1K0201375
UNION NUT
IN STOCK 		$7.94 1
IN
30 1J0919133B
SEAL RING
RED 		$17.22 1
TO
