FRAME of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - FRAME

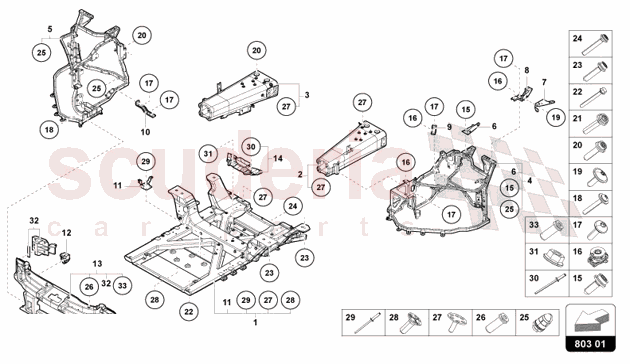

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B805101	FRAME	$17,470.02	To Order

Photo	Part No	Description	Price (each)	Stock
	47B805111	CRASH MEMBER	$9,601.94	To Order

Photo	Part No	Description	Price (each)	Stock
	47B805112	CRASH MEMBER	$10,114.22	To Order

Photo	Part No	Description	Price (each)	Stock
	47B806191B	FRAME PART	$3,592.51	To Order

Photo	Part No	Description	Price (each)	Stock
	47B806192B	FRAME PART	$3,526.86	To Order

Photo	Part No	Description	Price (each)	Stock
	47B806507A	BRACKET	$260.75	To Order
	47B806508A	BRACKET	$260.75	To Order

Photo	Part No	Description	Price (each)	Stock
	47B821021A	BRACKET	$22.14	To Order
	47B821022A	BRACKET	$22.14	To Order

Photo	Part No	Description	Price (each)	Stock
	47B821017B	BRACKET	$30.53	To Order
	47B821018B	BRACKET	$30.53	To Order

Photo	Part No	Description	Price (each)	Stock
	47B806359A	BRACKET	$28.44	To Order

Photo	Part No	Description	Price (each)	Stock
	47B805201A	BRACKET	$18.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4KE959345A	ACCELERATOR SENSOR	$161.56	To Order

Photo	Part No	Description	Price (each)	Stock
	47B807051	FRONT END	$15,860.94	To Order

Photo	Part No	Description	Price (each)	Stock
	47B805343	AIR DUCT	$167.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N10753102	INT. SERRATION FLANGE SCREW	$5.81	To Order

Photo	Part No	Description	Price (each)	Stock
	8P7806305	COMPENSATING PIECE	$16.42	To Order

Photo	Part No	Description	Price (each)	Stock
	N10661002	HEX SOCKET OVAL HEAD COLLARED	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10483102	HEX SOCKET HEAD BOLT (COMBI)	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91188301	HEXAGON SOCKET HEAD BOLT	$1.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10827301	FLAT HEAD MULTI-POINT SOCKET BOLT	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N91174401	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	N10699501	HEX COLLARED BOLT	$4.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N91303101	12-POINT SOCKET HEAD BOLT (COMBI)	$9.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N91174301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.56	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003401	WELD STUDS WITH CAP NUTS	$7.23	To Order

Photo	Part No	Description	Price (each)	Stock
	8H0806221	COMPENSATING PIECE	$10.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	476803938	INSERT	$15.32	To Order

Photo	Part No	Description	Price (each)	Stock
	47B804311	FASTENERS	$100.88	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006115	BELT RIVET	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005628	BELT RIVET	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	$1.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	47B805327	1 RETAINING BRACKET KIT	$3,605.67	To Order
	47B805328	1 RETAINING BRACKET KIT	$3,375.79	To Order

Photo	Part No	Description	Price (each)	Stock
	47B311397	ADJUSTMENT PART	$48.15	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	47B805101	FRAME	47B805101 FRAME	$17,470.02	1	TO
2	47B805111	CRASH MEMBER	47B805111 CRASH MEMBER LEFT	$9,601.94	1	TO
3	47B805112	CRASH MEMBER	47B805112 CRASH MEMBER RIGHT	$10,114.22	1	TO
4	47B806191B	FRAME PART	47B806191B FRAME PART LEFT	$3,592.51	1	TO
5	47B806192B	FRAME PART	47B806192B FRAME PART RIGHT	$3,526.86	1	TO
6	47B806507A	BRACKET	47B806507A BRACKET LEFT	$260.75	1	TO
6	47B806508A	BRACKET	47B806508A BRACKET RIGHT	$260.75	1	TO
7	47B821021A	BRACKET	47B821021A BRACKET LEFT	$22.14	1	TO
7	47B821022A	BRACKET	47B821022A BRACKET RIGHT	$22.14	1	TO
8	47B821017B	BRACKET	47B821017B BRACKET LEFT	$30.53	1	TO
8	47B821018B	BRACKET	47B821018B BRACKET RIGHT	$30.53	1	TO
9	47B806359A	BRACKET	47B806359A BRACKET	$28.44	1	TO
10	47B805201A	BRACKET	47B805201A BRACKET	$18.66	1	TO
12	4KE959345A	ACCELERATOR SENSOR	4KE959345A ACCELERATOR SENSOR	$161.56	1	TO
13	47B807051	FRONT END	47B807051 FRONT END	$15,860.94	1	TO
14	47B805343	AIR DUCT	47B805343 AIR DUCT	$167.47	1	TO
15	N10753102	INT. SERRATION FLANGE SCREW	N10753102 INT. SERRATION FLANGE SCREW	$5.81	1	TO
16	8P7806305	COMPENSATING PIECE	8P7806305 COMPENSATING PIECE	$16.42	1	TO
17	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED M6X20 IN STOCK	$0.74 MSRP: ~~7.27~~ (89.8% off)	1	IN
18	N10483102	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N10483102 HEX SOCKET HEAD BOLT (COMBI) M6X50 IN STOCK	$1.39 MSRP: ~~7.14~~ (80.5% off)	1	IN
19	N91188301	HEXAGON SOCKET HEAD BOLT IN STOCK	N91188301 HEXAGON SOCKET HEAD BOLT M6X20 IN STOCK	$1.35 MSRP: ~~7.23~~ (81.3% off)	1	IN
20	N10827301	FLAT HEAD MULTI-POINT SOCKET BOLT	N10827301 FLAT HEAD MULTI-POINT SOCKET BOLT	$3.47	1	TO
21	N91174401	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91174401 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X35	$1.44	1	TO
22	N10699501	HEX COLLARED BOLT	N10699501 HEX COLLARED BOLT M10X95	$4.60	1	TO
23	N91303101	12-POINT SOCKET HEAD BOLT (COMBI)	N91303101 12-POINT SOCKET HEAD BOLT (COMBI)	$9.66	1	TO
24	N91174301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91174301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.56	1	TO
25	WHT003401	WELD STUDS WITH CAP NUTS	WHT003401 WELD STUDS WITH CAP NUTS M8	$7.23	1	TO
26	8H0806221	COMPENSATING PIECE IN STOCK	8H0806221 COMPENSATING PIECE IN STOCK	$10.90	1	IN
27	476803938	INSERT	476803938 INSERT M5	$15.32	1	TO
28	47B804311	FASTENERS	47B804311 FASTENERS	$100.88	1	TO
29	WHT006115	BELT RIVET	WHT006115 BELT RIVET 3,2X14	$1.34 MSRP: ~~7.17~~ (81.3% off)	1	TO
30	WHT005628	BELT RIVET	WHT005628 BELT RIVET 3,2X9,2	$1.16 MSRP: ~~7.28~~ (84.1% off)	1	TO
31	N10017304	HEXAGON COLLAR NUT IN STOCK	N10017304 HEXAGON COLLAR NUT M5 IN STOCK	$1.77	1	IN
32	47B805327	1 RETAINING BRACKET KIT	47B805327 1 RETAINING BRACKET KIT LEFT	$3,605.67	1	TO
32	47B805328	1 RETAINING BRACKET KIT	47B805328 1 RETAINING BRACKET KIT RIGHT	$3,375.79	1	TO
33	47B311397	ADJUSTMENT PART	47B311397 ADJUSTMENT PART	$48.15	1	TO
