Name: AND ACCEL. LEVER MECH.
Rating: 5.0 (1 reviews)

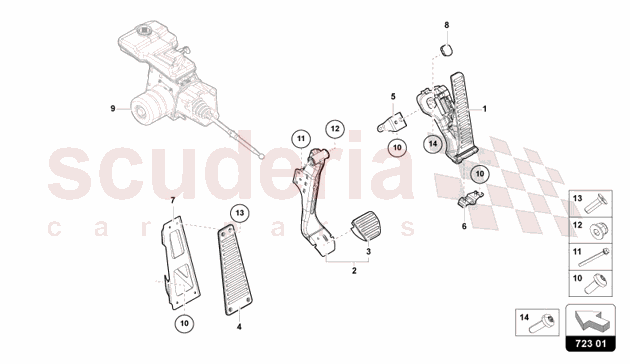

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1K1723503AK	ACCELERATOR PEDAL WITH ELECTRONIC MODULE	$400.63	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1723131	CAP FOR FOOT BRAKE PEDAL	$40.93	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0721989	CAP	$0.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91071801	HEX COLLARED BOLT	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock
	N90183803	HEXAGON COLLAR NUT SELF-LOCKING	$16.57	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006119	HEX SOCKET COUNTERSUNK BOLT	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	$0.81	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	1K1723503AK	ACCELERATOR PEDAL WITH ELECTRONIC MODULE	1K1723503AK ACCELERATOR PEDAL WITH ELECTRONIC MODULE	$400.63	1	TO
2	47C723031A	BRAKE PEDAL	47C723031A BRAKE PEDAL	$1,287.26	1	TO
2	47A723031A	BRAKE PEDAL	47A723031A BRAKE PEDAL	$1,049.53	1	TO
3	4S1723131	CAP FOR FOOT BRAKE PEDAL	4S1723131 CAP FOR FOOT BRAKE PEDAL	$40.93	1	TO
4	47C864417	FOOT REST	47C864417 FOOT REST	$226.58	1	TO
4	47A864417	FOOT REST	47A864417 FOOT REST	$198.35	1	TO
5	47C721187	BRACKET	47C721187 BRACKET	$44.66	1	TO
5	47A721187	BRACKET	47A721187 BRACKET	$38.36	1	TO
6	47C721188A	BRACKET	47C721188A BRACKET	$58.47	1	TO
6	47A721188A	BRACKET	47A721188A BRACKET	$53.53	1	TO
7	47C864775	BRACKET FOR FOOTREST	47C864775 BRACKET FOR FOOTREST	$143.85	1	TO
7	47A864775	BRACKET FOR FOOTREST	47A864775 BRACKET FOR FOOTREST	$101.28	1	TO
8	1K0721989	CAP IN STOCK	1K0721989 CAP IN STOCK	$0.87 MSRP: ~~7.27~~ (88% off)	1	IN
10	N91126601	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.76 MSRP: ~~7.30~~ (89.6% off)	1	IN
11	N91071801	HEX COLLARED BOLT	N91071801 HEX COLLARED BOLT M8X85	$3.43	1	TO
12	N90183803	HEXAGON COLLAR NUT SELF-LOCKING	N90183803 HEXAGON COLLAR NUT SELF-LOCKING M8 N901838	$16.57	1	TO
13	WHT006119	HEX SOCKET COUNTERSUNK BOLT	WHT006119 HEX SOCKET COUNTERSUNK BOLT M5X15	$0.49 MSRP: ~~7.31~~ (93.3% off)	1	TO
14	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	N10124309 OVAL HEXAGON SOCKET HEAD BOLT M6X20	$0.81	1	TO

And Accel. Lever Mech.

Lamborghini Revuelto Coupe
