Axle

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - AXLE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B505431A WHEEL CARRIER $4,794.40 To Order
47B505432A WHEEL CARRIER $4,794.40 To Order
4LA505431A WHEEL CARRIER $8,866.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47B505311 TRACK CONTROL ARM, COMPLETE $2,765.01 To Order
47B505312 TRACK CONTROL ARM, COMPLETE $2,765.01 To Order
Photo Part No Description Price (each) Stock
4S0407203C BALANCING PLATE $8.01 IN STOCK
4S0407203D BALANCING PLATE $8.28 IN STOCK
4S0407203E BALANCING PLATE $8.28 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47B941287C BRACKET $26.14 To Order
Photo Part No Description Price (each) Stock
47B941453 BRACKET $44.62 To Order
47B941454 BRACKET $44.36 To Order
Photo Part No Description Price (each) Stock
47B611841 BRACKET $68.97 To Order
47B611842 BRACKET $68.97 To Order
Photo Part No Description Price (each) Stock
47B611845 BRACKET $82.75 To Order
47B611846 BRACKET $82.75 To Order
Photo Part No Description Price (each) Stock
470941273A POSITION SENSOR $121.98 IN STOCK
Photo Part No Description Price (each) Stock
47B599511 BRACKET $25.35 To Order
Photo Part No Description Price (each) Stock
47B501397A ACTUATOR $9,286.68 To Order
47B501398A ACTUATOR $9,286.68 To Order
47B501397B ACTUATOR $8,360.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47B505323 TRACK CONTROL ARM, COMPLETE $2,476.00 To Order
47B505324 TRACK CONTROL ARM, COMPLETE $2,476.00 To Order
Photo Part No Description Price (each) Stock
WHT011216 GRUB SCREW $20.82 To Order
Photo Part No Description Price (each) Stock
N10728502 HEX COLLARED BOLT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
WHT004898 HEXAGON COLLAR NUT SELF-LOCKING $6.97 IN STOCK
Photo Part No Description Price (each) Stock
N10714801 OVAL HEXAGON SOCKET HEAD BOLT $0.83 To Order
Photo Part No Description Price (each) Stock
N91055501 OVAL HEXAGON SOCKET HEAD BOLT $0.57 IN STOCK
Photo Part No Description Price (each) Stock
N10434301 SOCKET HEAD BOLT $0.81 To Order
Photo Part No Description Price (each) Stock
N01118312 HEXAGON NUT, SELF-LOCKING $1.99 IN STOCK
Photo Part No Description Price (each) Stock
N91207701 TORX LENS FLANGE SCREW $0.61 IN STOCK
Photo Part No Description Price (each) Stock
N10628301 HEX COLLARED BOLT $6.50 IN STOCK
Photo Part No Description Price (each) Stock
N10640501 BOLT,HEX.HD.WITH SHOUL.(COMBI) $6.13 To Order
Photo Part No Description Price (each) Stock
N10106403 HEXAGON COLLAR NUT SELF-LOCKING $2.37 IN STOCK
Photo Part No Description Price (each) Stock
8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $13.23 IN STOCK
Photo Part No Description Price (each) Stock
N10741402 HEXAGON SOCKET FLAT HEAD BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
47B927803 SPEED SENSOR $55.04 To Order
Photo Part No Description Price (each) Stock
N91096701 OVAL HEXAGON SOCKET HEAD BOLT $1.60 IN STOCK

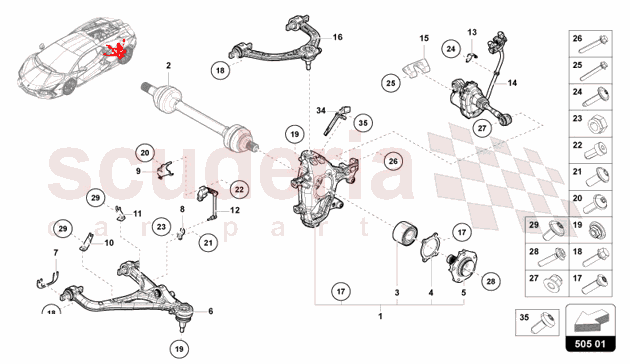

AXLE of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B505431A
WHEEL CARRIER
UNTIL VIN LA02923-LEFT REAR 		$4,794.40 1
TO
1 47B505432A
WHEEL CARRIER
UNTIL VIN LA02923-RIGHT REAR 		$4,794.40 1
TO
1 4LA505431A
WHEEL CARRIER
FROM VIN LA02924-LEFT REAR 		$8,866.37 1
TO
1 4LA505432A
WHEEL CARRIER
FROM VIN LA02924-RIGHT REAR 		$8,866.37 1
TO
6 47B505311
TRACK CONTROL ARM, COMPLETE
LEFT LOWER 		$2,765.01 1
TO
6 47B505312
TRACK CONTROL ARM, COMPLETE
RIGHT LOWER 		$2,765.01 1
TO
7 4S0407203C
BALANCING PLATE
1MM
IN STOCK 		$8.01 1
IN
7 4S0407203D
BALANCING PLATE
2MM
IN STOCK 		$8.28 1
IN
7 4S0407203E
BALANCING PLATE
3MM
IN STOCK 		$8.28 1
IN
7 4S0407203G
BALANCING PLATE
0,5MM
IN STOCK 		$8.01 1
IN
7 4S0407203H
BALANCING PLATE
1,5MM 		$10.13 1
TO
8 47B941287C
BRACKET 		$26.14 1
TO
9 47B941453
BRACKET
LEFT 		$44.62 1
TO
9 47B941454
BRACKET
RIGHT 		$44.36 1
TO
10 47B611841
BRACKET
LEFT 		$68.97 1
TO
10 47B611842
BRACKET
RIGHT 		$68.97 1
TO
11 47B611845
BRACKET
LEFT 		$82.75 1
TO
11 47B611846
BRACKET
RIGHT 		$82.75 1
TO
12 470941273A
POSITION SENSOR
IN STOCK 		$121.98 1
IN
13 47B599511
BRACKET 		$25.35 1
TO
14 47B501397A
ACTUATOR
LEFT 		$9,286.68 1
TO
14 47B501398A
ACTUATOR
RIGHT 		$9,286.68 1
TO
14 47B501397B
ACTUATOR
LEFT 		$8,360.66 1
TO
14 47B501398B
ACTUATOR
RIGHT 		$8,360.66 1
TO
16 47B505323
TRACK CONTROL ARM, COMPLETE
LEFT UPPER 		$2,476.00 1
TO
16 47B505324
TRACK CONTROL ARM, COMPLETE
RIGHT UPPER 		$2,476.00 1
TO
17 WHT011216
GRUB SCREW 		$20.82 1
TO
18 N10728502
HEX COLLARED BOLT
M10X40
IN STOCK 		$3.47 1
IN
19 WHT004898
HEXAGON COLLAR NUT SELF-LOCKING
M14X1,5
IN STOCK 		$6.97 1
IN
20 N10714801
OVAL HEXAGON SOCKET HEAD BOLT
M6X18 		$0.83 1
TO
21 N91055501
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
IN STOCK 		$0.57 (92.2% off) 1
IN
22 N10434301
SOCKET HEAD BOLT
M5X10 N 104 343 FQA-TEIL 		$0.81 (88.9% off) 1
TO
23 N01118312
HEXAGON NUT, SELF-LOCKING
M6
IN STOCK 		$1.99 1
IN
24 N91207701
TORX LENS FLANGE SCREW
M5X25
IN STOCK 		$0.61 (91.7% off) 1
IN
25 N10628301
HEX COLLARED BOLT
M12X1,5X90
IN STOCK 		$6.50 1
IN
26 N10640501
BOLT,HEX.HD.WITH SHOUL.(COMBI) 		$6.13 1
TO
27 N10106403
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5
IN STOCK 		$2.37 1
IN
28 8E0407643A
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
UNTIL VIN LA00858 CHANGE THE SCREW ON ALL 4 HALF- SHAFTS-M16X1,5X72
IN STOCK 		$13.23 1
IN
29 N10741402
HEXAGON SOCKET FLAT HEAD BOLT
M6X14 		$1.39 1
TO
32 47B611671B
BRACKET
LEFT 		- 1
PE
 Enquire
32 47B611672B
BRACKET
RIGHT 		- 1
PE
 Enquire
33 47B611671A
BRACKET
LEFT 		- 1
PE
 Enquire
33 47B611672A
BRACKET
RIGHT 		- 1
PE
 Enquire
34 47B927803
SPEED SENSOR 		$55.04 1
TO
35 N91096701
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
IN STOCK 		$1.60 1
IN
