Name: GEARBOX
Rating: 5.0 (1 reviews)

Diagram
INFO

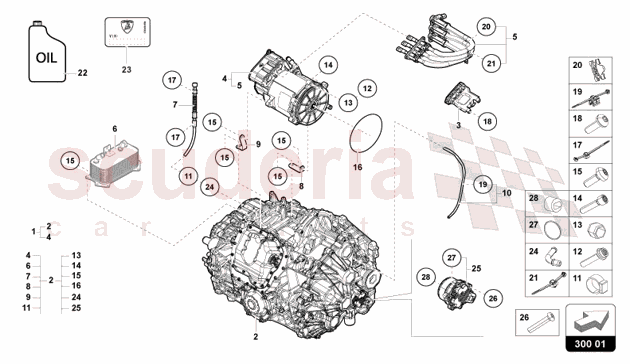

GEARBOX of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - GEARBOX

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	0DX300050B	8-SPEED DUAL CLUTCH GEARBOX	$58,709.60	To Order

Photo	Part No	Description	Price (each)	Stock
	47A907102E	BRACKET	$174.08	To Order

Photo	Part No	Description	Price (each)	Stock
	0DX901152	ELECTRIC MOTOR	$39,406.04	To Order

Photo	Part No	Description	Price (each)	Stock
	0B9525049B	VENT HOSE	$42.57	To Order
	0B9525049	VENT HOSE	$56.18	To Order

Photo	Part No	Description	Price (each)	Stock
	47B321397	BRACKET	$70.57	To Order

Photo	Part No	Description	Price (each)	Stock
	47B321396	BRACKET	$75.15	To Order

Photo	Part No	Description	Price (each)	Stock
	47B301473	BREATHER LINE	$179.30	To Order

Photo	Part No	Description	Price (each)	Stock
	N10198301	EAR CRIMP HOSE CLAMP	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N10687201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$2.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$6.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10710402	OVAL HEXAGON SOCKET HEAD BOLT	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT011511	O-RING	$429.52	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	CABLE TIES	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10659801	CABLE TIE WITH TERMINAL SOCKET	$2.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0971838F	CABLE TIE WITH HOLDER FOR WELD PIN:	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971838N	CABLE TIES WITH BRACKET	$1.06	To Order

Photo	Part No	Description	Price (each)	Stock
	G052529A2	DUAL CLUTCH TRANSMISSION FLUID	$63.70	To Order

Photo	Part No	Description	Price (each)	Stock
	47B010541	NOTICE	$29.04	To Order

Photo	Part No	Description	Price (each)	Stock
	02D525118B	ELBOW FITTING	$14.72	To Order

Photo	Part No	Description	Price (each)	Stock
	0DX315105A	HYDRAULIC PUMP WITH ELECTRIC MOTOR	$2,338.10	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT012769	SOCKET HEAD BOLT	$13.01	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT012938	O-RING	$40.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA325581	CONNECTING ROD	$32.19	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	0DX300050B	8-SPEED DUAL CLUTCH GEARBOX	0DX300050B 8-SPEED DUAL CLUTCH GEARBOX ONLY FOR CHINA MARKET ORDER ALSO REF.23	$58,709.60	1	TO
3	47A907102E	BRACKET	47A907102E BRACKET	$174.08	1	TO
4	0DX901152	ELECTRIC MOTOR	0DX901152 ELECTRIC MOTOR ONLY FOR CHINA MARKET ORDER ALSO REF.23	$39,406.04	1	TO
7	0B9525049B	VENT HOSE	0B9525049B VENT HOSE	$42.57	1	TO
7	0B9525049	VENT HOSE	0B9525049 VENT HOSE	$56.18	1	TO
8	47B321397	BRACKET	47B321397 BRACKET	$70.57	1	TO
9	47B321396	BRACKET	47B321396 BRACKET	$75.15	1	TO
10	47B301473	BREATHER LINE	47B301473 BREATHER LINE	$179.30	1	TO
11	N10198301	EAR CRIMP HOSE CLAMP	N10198301 EAR CRIMP HOSE CLAMP 13.3X7X0.6	$2.77	1	TO
12	N10687201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N10687201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M10X45 IN STOCK	$2.98 MSRP: ~~7.03~~ (57.6% off)	1	IN
14	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40 IN STOCK	$6.71	1	IN
15	N10710402	OVAL HEXAGON SOCKET HEAD BOLT	N10710402 OVAL HEXAGON SOCKET HEAD BOLT M8X22	$2.57	1	TO
16	WHT011511	O-RING	WHT011511 O-RING	$429.52	1	TO
17	3W0971838	CABLE TIES	3W0971838 CABLE TIES 4,6X193MM 6,5/0,3-3,0MM	$1.19 MSRP: ~~7.23~~ (83.5% off)	1	TO
18	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.31	1	IN
19	N10659801	CABLE TIE WITH TERMINAL SOCKET IN STOCK	N10659801 CABLE TIE WITH TERMINAL SOCKET 4,6X200MM IN STOCK	$2.83	1	IN
20	3D0971838F	CABLE TIE WITH HOLDER FOR WELD PIN:	3D0971838F CABLE TIE WITH HOLDER FOR WELD PIN: 5	$2.77	1	TO
21	3D0971838N	CABLE TIES WITH BRACKET	3D0971838N CABLE TIES WITH BRACKET	$1.06	1	TO
22	G052529A2	DUAL CLUTCH TRANSMISSION FLUID	G052529A2 DUAL CLUTCH TRANSMISSION FLUID 1.0 LTR.	$63.70	1	TO
23	47B010541	NOTICE	47B010541 NOTICE SUPPLY VIN	$29.04	1	TO
24	02D525118B	ELBOW FITTING	02D525118B ELBOW FITTING	$14.72	1	TO
25	0DX315105A	HYDRAULIC PUMP WITH ELECTRIC MOTOR	0DX315105A HYDRAULIC PUMP WITH ELECTRIC MOTOR	$2,338.10	1	TO
26	WHT012769	SOCKET HEAD BOLT	WHT012769 SOCKET HEAD BOLT	$13.01	1	TO
27	WHT012938	O-RING	WHT012938 O-RING INCLUDED IN REF.25	$40.34	1	TO
28	4LA325581	CONNECTING ROD	4LA325581 CONNECTING ROD INCLUDED IN REF.1	$32.19	1	TO

Gearbox

Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - GEARBOX
