(A/C COMPRESSOR > A/C CONDENSER) of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - (A/C COMPRESSOR > A/C CONDENSER)

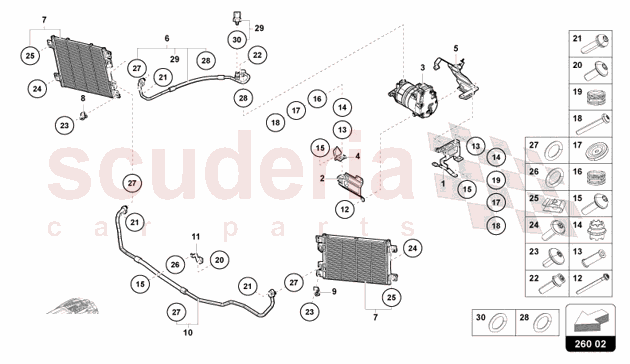

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B820891B	BRACKET	$122.69	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820495B	BRACKET	$109.96	To Order

Photo	Part No	Description	Price (each)	Stock
	80A816797F	A/C COMPRESSOR	$1,372.64	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820892A	BRACKET	$45.78	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820195F	BRACKET	$182.59	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816726B	REFRIGERANT LINE	$526.72	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816421	CONDENSER	$500.47	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816580A	BRACKET	$37.64	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816579A	BRACKET	$37.64	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816750A	REFRIGERANT LINE	$269.27	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816573B	BRACKET	$52.62	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4KE820067F	BUSH	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4KE317867F	RUBBER BUSH	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4KE820879C	COIL SPRING	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	4KE121277A	DISTANCE PIECE	$9.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097301	HEXAGON SOCKET FLAT HEAD BOLT	$1.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4KE820879B	COIL SPRING	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$3.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91042303	OVAL HEXAGON SOCKET HEAD BOLT	$0.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	N91195701	SPEED NUT	$3.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0206245	CLAMP	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	$6.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	$6.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0959603E	PRESSURE & TEMPERATURE SENSOR	$187.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0261185	SEAL RING	$6.46	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	47B820891B	BRACKET	47B820891B BRACKET	$122.69	1	TO
2	47B820495B	BRACKET	47B820495B BRACKET ORDER ALSO 47B820195F	$109.96	1	TO
3	80A816797F	A/C COMPRESSOR	80A816797F A/C COMPRESSOR	$1,372.64	1	TO
4	47B820892A	BRACKET	47B820892A BRACKET	$45.78	1	TO
5	47B820195F	BRACKET	47B820195F BRACKET ORDER ALSO 47B820495B	$182.59	1	TO
6	47B816726B	REFRIGERANT LINE	47B816726B REFRIGERANT LINE	$526.72	1	TO
7	47B816421	CONDENSER	47B816421 CONDENSER	$500.47	1	TO
8	47B816580A	BRACKET	47B816580A BRACKET	$37.64	1	TO
9	47B816579A	BRACKET	47B816579A BRACKET	$37.64	1	TO
10	47B816750A	REFRIGERANT LINE	47B816750A REFRIGERANT LINE	$269.27	1	TO
11	47B816573B	BRACKET	47B816573B BRACKET	$52.62	1	TO
12	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10714501 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X90X80 IN STOCK	$3.47	1	IN
13	4KE820067F	BUSH	4KE820067F BUSH	$6.17	1	TO
14	4KE317867F	RUBBER BUSH	4KE317867F RUBBER BUSH	$3.03	1	TO
15	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X20 IN STOCK	$1.60	1	IN
16	4KE820879C	COIL SPRING	4KE820879C COIL SPRING	$3.03	1	TO
17	4KE121277A	DISTANCE PIECE	4KE121277A DISTANCE PIECE	$9.45	1	TO
18	N91097301	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91097301 HEXAGON SOCKET FLAT HEAD BOLT M6X45 IN STOCK	$1.92 MSRP: ~~7.25~~ (73.5% off)	1	IN
19	4KE820879B	COIL SPRING	4KE820879B COIL SPRING	$3.03	1	TO
20	N90780901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780901 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.29 MSRP: ~~7.38~~ (96.1% off)	1	IN
21	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X25	$2.24 MSRP: ~~7.26~~ (69.1% off)	1	TO
22	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28 IN STOCK	$3.03 MSRP: ~~7.07~~ (57.1% off)	1	IN
23	N91042303	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91042303 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$0.93	1	IN
24	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT M6X18	$0.83	1	TO
25	N91195701	SPEED NUT IN STOCK	N91195701 SPEED NUT IN STOCK	$3.17	1	IN
26	N0206245	CLAMP	N0206245 CLAMP	$5.59	1	TO
27	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING 13,7X2,5 IN STOCK	$6.30 MSRP: ~~7.06~~ (10.8% off)	1	IN
28	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING 11X2,5 IN STOCK	$6.52 MSRP: ~~7.06~~ (7.6% off)	1	IN
29	4M0959603E	PRESSURE & TEMPERATURE SENSOR	4M0959603E PRESSURE & TEMPERATURE SENSOR INCLUDED IN REF.6	$187.83	1	TO
30	4M0261185	SEAL RING	4M0261185 SEAL RING INCLUDED IN REF.6-8X1,5	$6.46	1	TO
