Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - SECURING PARTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B199307 SUPPORT $463.69 To Order
Photo Part No Description Price (each) Stock
47B199381A ENGINE MOUNTING $491.29 To Order
Photo Part No Description Price (each) Stock
47B199387 HEAT SHIELD $115.33 To Order
Photo Part No Description Price (each) Stock
47B199334C SUPPORT $382.25 To Order
Photo Part No Description Price (each) Stock
47B599438E GEARBOX MOUNTING $731.65 To Order
47B599438F GEARBOX MOUNTING $731.65 To Order
Photo Part No Description Price (each) Stock
47B599438 SUPPORT $425.59 To Order
Photo Part No Description Price (each) Stock
47B199497 SUPPORT $329.70 To Order
47B199498 SUPPORT $329.70 To Order
Photo Part No Description Price (each) Stock
N91135801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $2.89 IN STOCK
Photo Part No Description Price (each) Stock
N90904501 GROMMET $6.77 To Order
Photo Part No Description Price (each) Stock
N10786201 HEX SOCKET OVAL HEAD COLLARED $0.93 To Order
Photo Part No Description Price (each) Stock
N10831701 SCREW WITH INT. SERRATIONS $3.17 To Order
Photo Part No Description Price (each) Stock
N10640301 HEX COLLARED BOLT $7.27 IN STOCK
Photo Part No Description Price (each) Stock
N10106403 HEXAGON COLLAR NUT SELF-LOCKING $2.37 IN STOCK
Photo Part No Description Price (each) Stock
N10714501 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $3.47 IN STOCK
Photo Part No Description Price (each) Stock
N10314506 HEX COLLARED BOLT $4.53 To Order
Photo Part No Description Price (each) Stock
N91148901 MULTI-POINT SOCKET HEAD BOLT WITH COLLAR $6.37 To Order
Photo Part No Description Price (each) Stock
N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $6.71 IN STOCK
Photo Part No Description Price (each) Stock
N10272202 HEXAGON HEAD BOLT (COMBI) $7.62 IN STOCK
Photo Part No Description Price (each) Stock
07M199632B BRACKET $63.13 To Order
Photo Part No Description Price (each) Stock
N91075801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $4.86 To Order

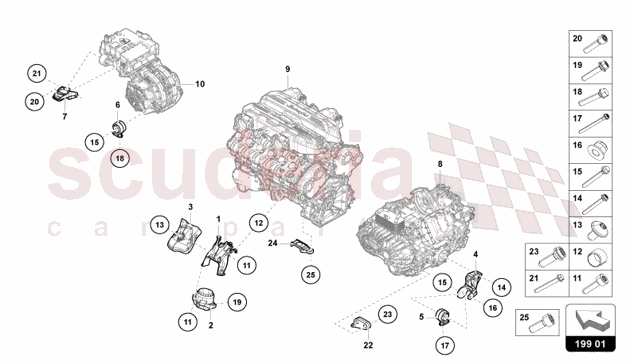

SECURING PARTS of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B199307
SUPPORT 		$463.69 1
TO
2 47B199381A
ENGINE MOUNTING 		$491.29 1
TO
3 47B199387
HEAT SHIELD 		$115.33 1
TO
4 47B199334C
SUPPORT 		$382.25 1
TO
5 47B599438E
GEARBOX MOUNTING
LEFT 		$731.65 1
TO
5 47B599438F
GEARBOX MOUNTING
RIGHT 		$731.65 1
TO
6 47B599438
SUPPORT
REAR 		$425.59 1
TO
7 47B199497
SUPPORT
RIGHT FRONT 		$329.70 1
TO
7 47B199498
SUPPORT
LEFT FRONT 		$329.70 1
TO
11 N91135801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40
IN STOCK 		$2.89 1
IN
12 N90904501
GROMMET 		$6.77 1
TO
13 N10786201
HEX SOCKET OVAL HEAD COLLARED
M6X12 		$0.93 1
TO
14 N10831701
SCREW WITH INT. SERRATIONS
M8X60 		$3.17 1
TO
15 N10640301
HEX COLLARED BOLT
M12X1,5X100
IN STOCK 		$7.27 1
IN
16 N10106403
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5
IN STOCK 		$2.37 1
IN
17 N10714501
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X90X80
IN STOCK 		$3.47 1
IN
18 N10314506
HEX COLLARED BOLT
M10X50 		$4.53 1
TO
19 N91148901
MULTI-POINT SOCKET HEAD BOLT WITH COLLAR
M12X1,5X60 		$6.37 1
TO
20 N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40
IN STOCK 		$6.71 1
IN
21 N10272202
HEXAGON HEAD BOLT (COMBI)
M12X1,5X95
IN STOCK 		$7.62 1
IN
22 07M199632B
BRACKET 		$63.13 1
TO
23 N91075801
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		$4.86 (31.5% off) 1
TO
