Lower External Side Member For Wheel Housing

Lamborghini Aventador LP780 Ultimae

Illustration Number: 8530500

Find Your Part

Lamborghini Aventador LP780 Ultimae - LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING (8530500)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
470853553K SIDE MEMBER TRIM $9,168.48 To Order
470853553L SIDE MEMBER TRIM $9,168.48 To Order
470853554K SIDE MEMBER TRIM $9,168.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470853989D SIDE MEMBER TRIM $589.79 To Order
470853990D SIDE MEMBER TRIM $589.79 To Order
Photo Part No Description Price (each) Stock
470853751B WIDENED SILL PANELS $2,134.52 To Order
470853751D WIDENED SILL PANELS $13,220.73 To Order
470853752B WIDENED SILL PANELS $2,134.52 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470853293E COVER $409.85 To Order
470853294E COVER $409.85 To Order
Photo Part No Description Price (each) Stock
470814707 ARM $23.45 To Order
470814708 ARM $23.45 IN STOCK
Photo Part No Description Price (each) Stock
470809921B LINING FOR FENDER $98.01 To Order
470809922B LINING FOR FENDER $97.73 To Order
Photo Part No Description Price (each) Stock
N90170803 SPEED NUT $0.93 IN STOCK
N90526602 SPEED NUT $1.13 IN STOCK
Photo Part No Description Price (each) Stock
N01166422 WASHER $0.13 IN STOCK
Photo Part No Description Price (each) Stock
WHT009097 SCREW $2.51 IN STOCK
Photo Part No Description Price (each) Stock
N91188301 HEXAGON SOCKET HEAD BOLT $1.35 IN STOCK
Photo Part No Description Price (each) Stock
N90698606 HEXAGON SOCKET HEAD PANEL BOLT $1.05 IN STOCK
Photo Part No Description Price (each) Stock
N90986803 HEXAGON SOCKET HEAD PANEL BOLT 2 X13 $0.99 IN STOCK
Photo Part No Description Price (each) Stock
N10661002 HEX SOCKET OVAL HEAD COLLARED $0.74 IN STOCK
Photo Part No Description Price (each) Stock
N01166623 WASHER $1.21 IN STOCK
Photo Part No Description Price (each) Stock
470853883A SECURING BRACKET $61.55 To Order
470853884A SECURING BRACKET $172.09 To Order
Photo Part No Description Price (each) Stock
470853653D RADIATOR GRILLE $827.54 To Order
470853654D RADIATOR GRILLE $827.54 To Order
Photo Part No Description Price (each) Stock
470853491B SILL TRIM STRIP $454.51 To Order
470853491B SILL TRIM STRIP $454.51 To Order
470853491B001 SILL TRIM STRIP $454.51 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470853655A MOLDING FOR SIDE MEMBER $357.48 IN STOCK
470853655B MOLDING FOR SIDE MEMBER $2,141.08 To Order
470853655B001 MOLDING FOR SIDE MEMBER $2,141.08 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470853383 SEAL FOR SILL PANEL $440.03 To Order
470853384 SEAL FOR SILL PANEL $719.83 To Order
Photo Part No Description Price (each) Stock
470853369 SILL TRIM STRIP $2,889.77 To Order
470853369A SILL TRIM STRIP $3,855.23 To Order
470853369A001 SILL TRIM STRIP $3,855.23 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
470814589 BRACKET $19.98 To Order
470814590 BRACKET $33.70 To Order
Photo Part No Description Price (each) Stock
WHT000778 WASHER $0.62 IN STOCK
Photo Part No Description Price (each) Stock
470825327E AIR GUIDE GRILLE $1,123.07 To Order
470825328E AIR GUIDE GRILLE $1,123.07 To Order
Photo Part No Description Price (each) Stock
N10405702 HEXAGON SOCKET HEAD BOLT $0.90 IN STOCK
Photo Part No Description Price (each) Stock
400845235A DISTANCE PIECE $4.86 To Order
Photo Part No Description Price (each) Stock
N0154487 SPEED NUT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
N91121101 HEXALOBULAR FLANGE SCREW $2.29 IN STOCK
Photo Part No Description Price (each) Stock
WHT007409 SPEED NUT $10.13 To Order
Photo Part No Description Price (each) Stock
6N0867190A CLIP $4.73 To Order
Photo Part No Description Price (each) Stock
N10632202 ROUND HD. SCREW $1.77 IN STOCK
Photo Part No Description Price (each) Stock
N91079602 HEXAGON SOCKET FLAT HEAD BOLT $0.96 To Order
Photo Part No Description Price (each) Stock
470010544 ITALIAN FLAG STICKEER $73.67 To Order
470010545 ITALIAN FLAG STICKER $73.67 To Order
View All

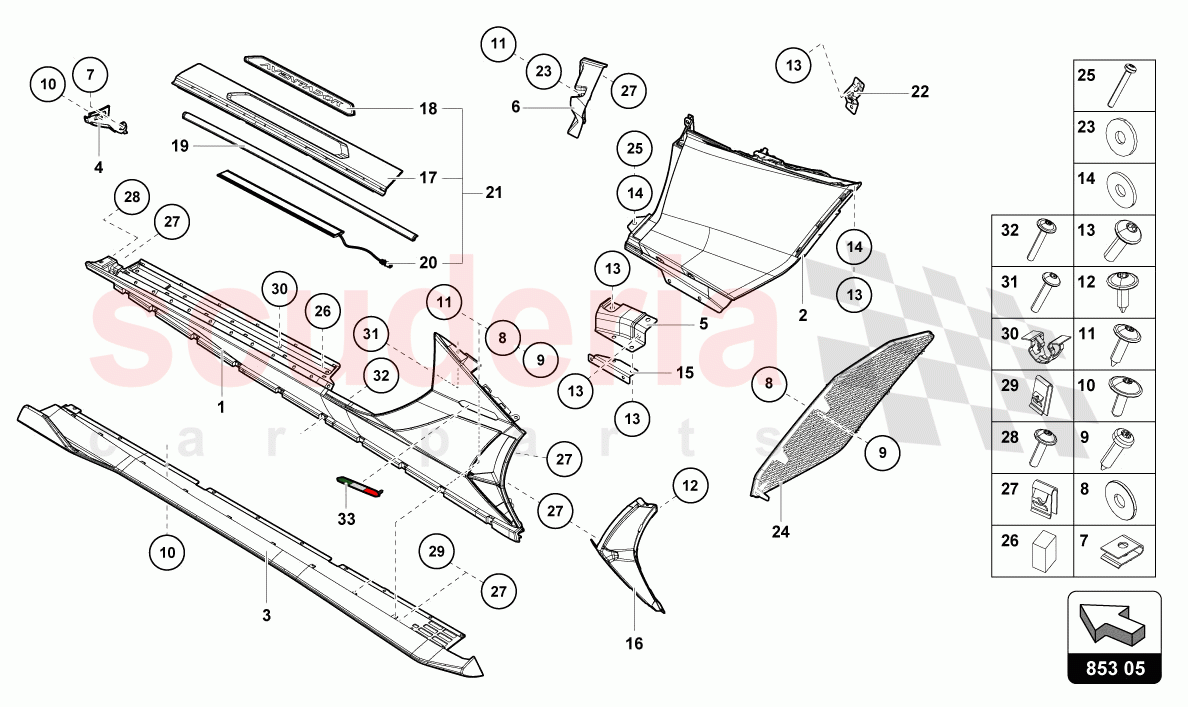

LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING of Lamborghini Lamborghini Aventador LP780 Ultimae Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 470853553K
SIDE MEMBER TRIM
MATT BLACK-LEFT 		$9,168.48 1
1 470853553L
SIDE MEMBER TRIM
SHINY BLACK-LEFT 		$9,168.48 1
1 470853554K
SIDE MEMBER TRIM
MATT BLACK-RIGHT 		$9,168.48 1
1 470853554L
SIDE MEMBER TRIM
SHINY BLACK-RIGHT 		$9,168.48 1
2 470853989D
SIDE MEMBER TRIM
LEFT 		$589.79 1
2 470853990D
SIDE MEMBER TRIM
RIGHT 		$589.79 1
3 470853751B
WIDENED SILL PANELS
MATT BLACK-LEFT 		$2,134.52 1
3 470853751D
WIDENED SILL PANELS
SHINY BLACK-LEFT 		$13,220.73 1
3 470853752B
WIDENED SILL PANELS
MATT BLACK-RIGHT 		$2,134.52 1
3 470853752D
WIDENED SILL PANELS
SHINY BLACK-RIGHT 		$13,220.73 1
3 470853759C
WIDENED SILL PANELS
SHINY CARBON-LEFT 		$8,176.77 1
3 470853759D
WIDENED SILL PANELS
CARBON MATT-LEFT 		$8,176.77 1
3 470853760C
WIDENED SILL PANELS
SHINY CARBON-RIGHT 		$8,176.77 1
3 470853760D
WIDENED SILL PANELS
CARBON MATT-RIGHT 		$8,176.77 1
4 470853293E
COVER
LEFT 		$409.85 1
4 470853294E
COVER
RIGHT 		$409.85 1
5 470814707
ARM
LEFT REAR 		$23.45 1
5 470814708
ARM
RIGHT REAR
IN STOCK 		$23.45 1
6 470809921B
LINING FOR FENDER
LEFT 		$98.01 1
6 470809922B
LINING FOR FENDER
RIGHT 		$97.73 1
7 N90170803
SPEED NUT
STD-4 -2X13X11
IN STOCK 		$0.93 (87.3% off) 12
7 N90526602
SPEED NUT
CFK-M4X13 -6X15
IN STOCK 		$1.13 (84.5% off) 4
8 N01166422
WASHER
IN STOCK 		$0.13 (98.2% off) 2
9 WHT009097
SCREW
IN STOCK 		$2.51 2
10 N91188301
HEXAGON SOCKET HEAD BOLT
M6X20
IN STOCK 		$1.35 (81.3% off) 16
11 N90698606
HEXAGON SOCKET HEAD PANEL BOLT
4 -2X16
IN STOCK 		$1.05 (85.7% off) 2
12 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 2 X13
4 -2X13
IN STOCK 		$0.99 8
13 N10661002
HEX SOCKET OVAL HEAD COLLARED
M6X20
IN STOCK 		$0.74 (89.8% off) 26
14 N01166623
WASHER
6 -4X18X1,6
IN STOCK 		$1.21 16
15 470853883A
SECURING BRACKET
LEFT 		$61.55 1
15 470853884A
SECURING BRACKET
RIGHT 		$172.09 1
16 470853653D
RADIATOR GRILLE
LEFT 		$827.54 1
16 470853654D
RADIATOR GRILLE
RIGHT 		$827.54 1
17 470853491B
SILL TRIM STRIP
LEFT 		$454.51 1
17 470853491B
SILL TRIM STRIP
STD-LEFT 		$454.51 1
17 470853491B001
SILL TRIM STRIP
LEFT AD PERSONAM - WITHOUT ADDITIONAL LIGHTS-OPTION.COLOUR/CUSTOMER CHOICE 		$454.51 1
17 470853492B
SILL TRIM STRIP
RIGHT 		$454.51 1
17 470853492B
SILL TRIM STRIP
STD-RIGHT 		$454.51 1
17 470853492B001
SILL TRIM STRIP
RIGHT AD PERSONAM - WITHOUT ADDITIONAL LIGHTS-OPTION.COLOUR/CUSTOMER CHOICE 		$454.51 1
18 470853655A
MOLDING FOR SIDE MEMBER
IN STOCK 		$357.48 2
18 470853655B
MOLDING FOR SIDE MEMBER
CARBON 		$2,141.08 2
18 470853655B001
MOLDING FOR SIDE MEMBER
AD PERSONAM - NERO ALDEBARAN-OPTION.COLOUR/CUSTOMER CHOICE 		$2,141.08 2
18 470853655BXZ0
MOLDING FOR SIDE MEMBER
AD PERSONAM - MATT CARBON-MOLDING FOR SIDE MEMBER 		$4,538.26 2
18 470853655C
MOLDING FOR SIDE MEMBER
AD PERSONAM - FORGED-CARBON EFFECT 		$3,316.70 2
19 470853383
SEAL FOR SILL PANEL
LEFT 		$440.03 1
19 470853384
SEAL FOR SILL PANEL
RIGHT 		$719.83 1
21 470853369
SILL TRIM STRIP
STD-LEFT 		$2,889.77 1
21 470853369A
SILL TRIM STRIP
CFK-LEFT 		$3,855.23 1
21 470853369A001
SILL TRIM STRIP
AD PERSONAM - FORGED WITH ADDITIONAL LIGHTS - SUPPLY VIN-OPTION.COLOUR/CUSTOMER CHOICE 		$3,855.23 1
21 470853369AXZ0
SILL TRIM STRIP
AD PERSONAM - COLORED WITH ADDITIONAL LIGHTS - SUPPLY VIN-OPTION.COLOUR/CUSTOMER CHOICE 		$5,063.68 1
21 470853370
SILL TRIM STRIP
STD-RIGHT 		$2,889.77 1
21 470853370A
SILL TRIM STRIP
CFK-RIGHT 		$3,855.23 1
21 470853370A001
SILL TRIM STRIP
AD PERSONAM - FORGED WITH ADDITIONAL LIGHTS - SUPPLY VIN-OPTION.COLOUR/CUSTOMER CHOICE 		$3,855.23 1
21 470853370AXZ0
SILL TRIM STRIP
AD PERSONAM - COLORED WITH ADDITIONAL LIGHTS - SUPPLY VIN-OPTION.COLOUR/CUSTOMER CHOICE 		$5,063.68 1
22 470814589
BRACKET
LEFT 		$19.98 1
22 470814590
BRACKET
RIGHT 		$33.70 1
23 WHT000778
WASHER
30X36X1
IN STOCK 		$0.62 2
24 470825327E
AIR GUIDE GRILLE
LEFT 		$1,123.07 1
24 470825328E
AIR GUIDE GRILLE
RIGHT 		$1,123.07 1
25 N10405702
HEXAGON SOCKET HEAD BOLT
M6X45
IN STOCK 		$0.90 4
26 400845235A
DISTANCE PIECE 		$4.86 4
27 N0154487
SPEED NUT
4 -2X16,3X11
IN STOCK 		$0.52 26
28 N91121101
HEXALOBULAR FLANGE SCREW
IN STOCK 		$2.29 2
29 WHT007409
SPEED NUT 		$10.13 2
30 6N0867190A
CLIP 		$4.73 (35% off) 12
31 N10632202
ROUND HD. SCREW
M6X30
IN STOCK 		$1.77 (75.2% off) 4
32 N91079602
HEXAGON SOCKET FLAT HEAD BOLT
M4X25 		$0.96 16
33 470010544
ITALIAN FLAG STICKEER
ITALIAN FLAG-RIGHT 		$73.67 1
33 470010545
ITALIAN FLAG STICKER
ITALIAN FLAG-LEFT 		$73.67 1
