Crankshaft - Connecting Rods And Pistons

Ferrari GTC4Lusso

Find Your Part

Ferrari GTC4Lusso - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
314108 CRANKSHAFT $2,957.79 To Order
Photo Part No Description Price (each) Stock
261720 CONNECTING ROD HALF-BEARING $18.16 To Order
261719 CONNECTING ROD HALF-BEARING $18.16 To Order
261718 CONNECTING ROD HALF-BEARING $18.16 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $31.89 To Order
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.47 To Order
Photo Part No Description Price (each) Stock
271030 UPPER HALF-BEARING $35.04 To Order
271029 UPPER HALF-BEARING $36.35 To Order
271028 UPPER HALF-BEARING $32.45 To Order
Photo Part No Description Price (each) Stock
271025 LOWER HALF-BEARING $35.04 To Order
271024 LOWER HALF-BEARING $36.35 To Order
271023 LOWER HALF-BEARING $32.45 To Order
Photo Part No Description Price (each) Stock
261727 SHIM RING $9.99 To Order
Photo Part No Description Price (each) Stock
281741 ENGINE FLYWHEEL $2,706.36 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $8.14 To Order
Photo Part No Description Price (each) Stock
267273 COMPL. CONNECTING ROD AND CAP $639.06 To Order
Photo Part No Description Price (each) Stock
254806 CONNECTING ROD FASTENER SCREW $29.43 To Order
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.49 To Order
Photo Part No Description Price (each) Stock
234871 BUSHING $18.16 To Order
Photo Part No Description Price (each) Stock
341502 LH CYLINDER BANK PISTON COMPLETE WITH RINGS $532.43 To Order
341501 RH CYLINDER BANK PISTON COMPLETE WITH RINGS $532.43 To Order
Photo Part No Description Price (each) Stock
282966 GASKET $4.07 IN STOCK

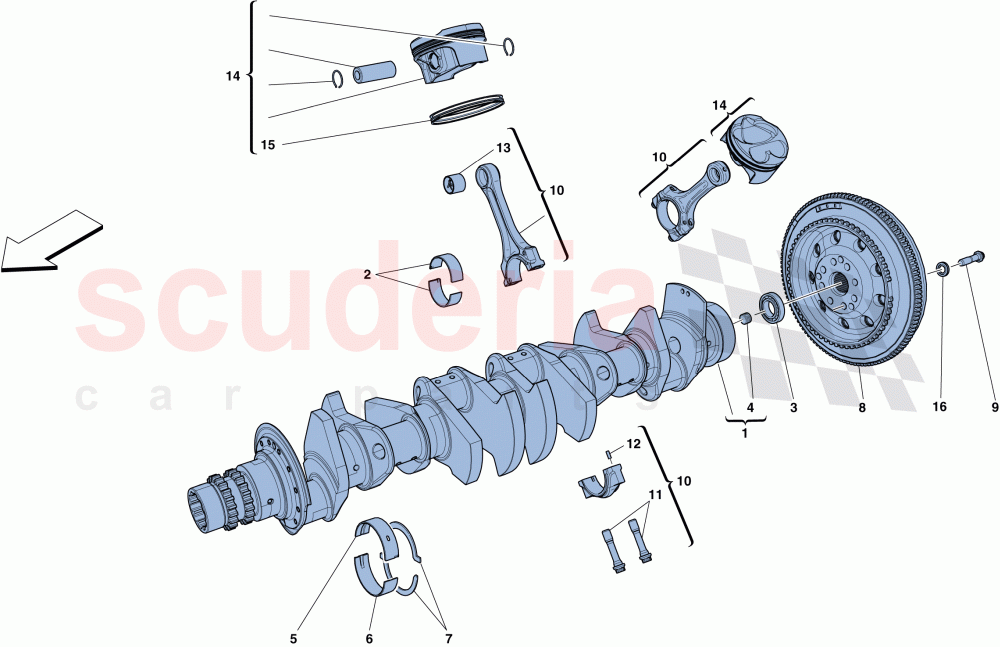

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 314108
CRANKSHAFT 		$2,957.79 1
TO
2 261720
CONNECTING ROD HALF-BEARING
Black; Lead free 		$18.16 24
TO
2 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free 		$18.16 24
TO
2 261718
CONNECTING ROD HALF-BEARING
Red; Lead free 		$18.16 24
TO
3 103877
BEARING 		$31.89 1
TO
4 176396
THREADED PLUG 		$5.47 1
TO
5 271030
UPPER HALF-BEARING
Green; Lead free 		$35.04 7
TO
5 271029
UPPER HALF-BEARING
Yellow; Lead free 		$36.35 7
TO
5 271028
UPPER HALF-BEARING
Blue; Lead free 		$32.45 7
TO
6 271025
LOWER HALF-BEARING
Green; Lead free 		$35.04 7
TO
6 271024
LOWER HALF-BEARING
Yellow; Lead free 		$36.35 7
TO
6 271023
LOWER HALF-BEARING
Blue; Lead free 		$32.45 7
TO
7 261727
SHIM RING
Lead free 		$9.99 4
TO
8 281741
ENGINE FLYWHEEL 		$2,706.36 1
TO
9 229907
SCREW
M10 X 1.25 X 41.5 		$8.14 8
TO
10 267273
COMPL. CONNECTING ROD AND CAP 		$639.06 12
TO
11 254806
CONNECTING ROD FASTENER SCREW 		$29.43 24
TO
12 224608
ALIGNMENT PIN 		$3.49 24
TO
13 234871
BUSHING 		$18.16 12
TO
14 341502
LH CYLINDER BANK PISTON COMPLETE WITH RINGS 		$532.43 6
TO
14 341501
RH CYLINDER BANK PISTON COMPLETE WITH RINGS 		$532.43 6
TO
16 282966
GASKET
IN STOCK 		$4.07 2
IN
