Cooling System of Ferrari Ferrari 348 TB (1993)

Ferrari 348 TB (1993) - Cooling System

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	140626	RADIATORS DELIVERY PIPE	$200.57	To Order

Photo	Part No	Description	Price (each)	Stock
	140627	RADIATORS RETURN PIPE	$256.03	To Order

Photo	Part No	Description	Price (each)	Stock
	106195	BRACKET WITH SHEATH	$52.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	136513	RUBBER HOSE	$22.07	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	$7.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62659600	SLEEVE	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140624	RUBBER HOSE	$74.06	To Order

Photo	Part No	Description	Price (each)	Stock
	140625	RUBBER HOSE	$108.78	To Order

Photo	Part No	Description	Price (each)	Stock

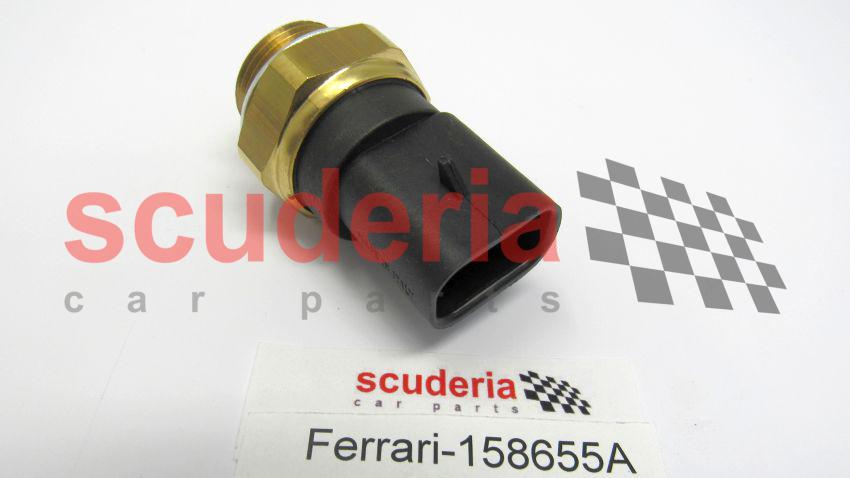

	158655A	Radiator Fan Sensor (MP)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101508	Gasket	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140703	RUBBER HOSE	$8.78	To Order

Photo	Part No	Description	Price (each)	Stock
	12180190	SCREW COLLAR	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	140838	FUEL CANISTER	$1,006.78	To Order

Photo	Part No	Description	Price (each)	Stock
	137644	Plug for tank	$24.65	To Order

Photo	Part No	Description	Price (each)	Stock
	122219	NOURICE ENGINE EXHAUST PIPE	$116.90	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	$1.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$18.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	60758600	NUT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126292	VENT PIPE	$73.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13423379	ELASTIC COLLAR	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127557	Breather union	$0.90	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	140626	RADIATORS DELIVERY PIPE	140626 RADIATORS DELIVERY PIPE	$200.57 MSRP: ~~240.00~~ (16.4% off)	1	TO
	2	140627	RADIATORS RETURN PIPE	140627 RADIATORS RETURN PIPE	$256.03	1	TO
	3	106195	BRACKET WITH SHEATH	106195 BRACKET WITH SHEATH	$52.81	4	TO
	14059290		FLANGED NUT M6	from $1.34
4 FLANGED NUT M6 IN STOCK $1.34 2 IN 20 FLANGED NUT M6 IN STOCK $1.34 2 IN 26 FLANGED NUT M6 IN STOCK $1.34 1 IN 33 FLANGED NUT M6 IN STOCK $1.34 2 IN
	5	136513	RUBBER HOSE	136513 RUBBER HOSE	$22.07 MSRP: ~~52.50~~ (58% off)	4	TO
	6	296781	COLLAR 30-45MM IN STOCK	296781 COLLAR 30-45MM IN STOCK	$7.97	12	IN
	7	62659600	SLEEVE	62659600 SLEEVE	$3.15 MSRP: ~~88.28~~ (96.4% off)	1	TO
	8	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.43	2	IN
	9	140624	RUBBER HOSE	140624 RUBBER HOSE	$74.06 MSRP: ~~181.63~~ (59.2% off)	1	TO
	10	140625	RUBBER HOSE	140625 RUBBER HOSE	$108.78 MSRP: ~~175.10~~ (37.9% off)	1	TO
	11	158655A	Radiator Fan Sensor (MP)	158655A Radiator Fan Sensor (MP)	-	1	PE	Enquire
	12	101508	Gasket IN STOCK	101508 Gasket IN STOCK	$1.24 MSRP: ~~1.84~~ (32.6% off)	1	IN
	13	140703	RUBBER HOSE	140703 RUBBER HOSE	$8.78 MSRP: ~~12.28~~ (28.5% off)	1	TO
	14	12180190	SCREW COLLAR	12180190 SCREW COLLAR	$0.39	2	TO
	15	140838	FUEL CANISTER	140838 FUEL CANISTER	$1,006.78	1	TO
	16	137644	Plug for tank	137644 Plug for tank 0.9 Bar (for 1.1 bar use part number: 137644)	$24.65 MSRP: ~~39.75~~ (38% off)	1	TO
	17	122219	NOURICE ENGINE EXHAUST PIPE	122219 NOURICE ENGINE EXHAUST PIPE	$116.90	1	TO
	18	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	$0.50 MSRP: ~~1.07~~ (53.3% off)	2	IN
	19	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	2	IN
	21	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.55	2	TO
	22	103550	Spacer bush -Only for IN STOCK	103550 Spacer bush -Only for IN STOCK	$1.77 MSRP: ~~3.25~~ (45.5% off)	2	IN
	127494		WASHER	from $0.08 MSRP: ~~0.68~~ (88.2% off)
23 WASHER IN STOCK $0.08 MSRP: ~~0.68~~ (88.2% off) 2 IN 28 WASHER IN STOCK $0.08 MSRP: ~~0.68~~ (88.2% off) 1 IN
	12643724		WASHER	from $0.06 MSRP: ~~0.50~~ (88% off)
24 WASHER IN STOCK $0.06 MSRP: ~~0.50~~ (88% off) 2 IN 29 WASHER IN STOCK $0.06 MSRP: ~~0.50~~ (88% off) 1 IN
	25	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	$18.44 MSRP: ~~19.52~~ (5.5% off)	1	IN
	27	60758600	NUT	60758600 NUT	$0.50 MSRP: ~~1.55~~ (67.7% off)	1	TO
	30	126292	VENT PIPE	126292 VENT PIPE	$73.44	1	TO
	31	13423379	ELASTIC COLLAR	13423379 ELASTIC COLLAR	$0.09	1	TO
	32	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.54 MSRP: ~~1.68~~ (67.9% off)	2	IN
	34	127557	Breather union	127557 Breather union	$0.90 MSRP: ~~2.10~~ (57.1% off)	2	TO
