Name: sub-frame with rubber mounting
Rating: 4.5 (1 reviews)

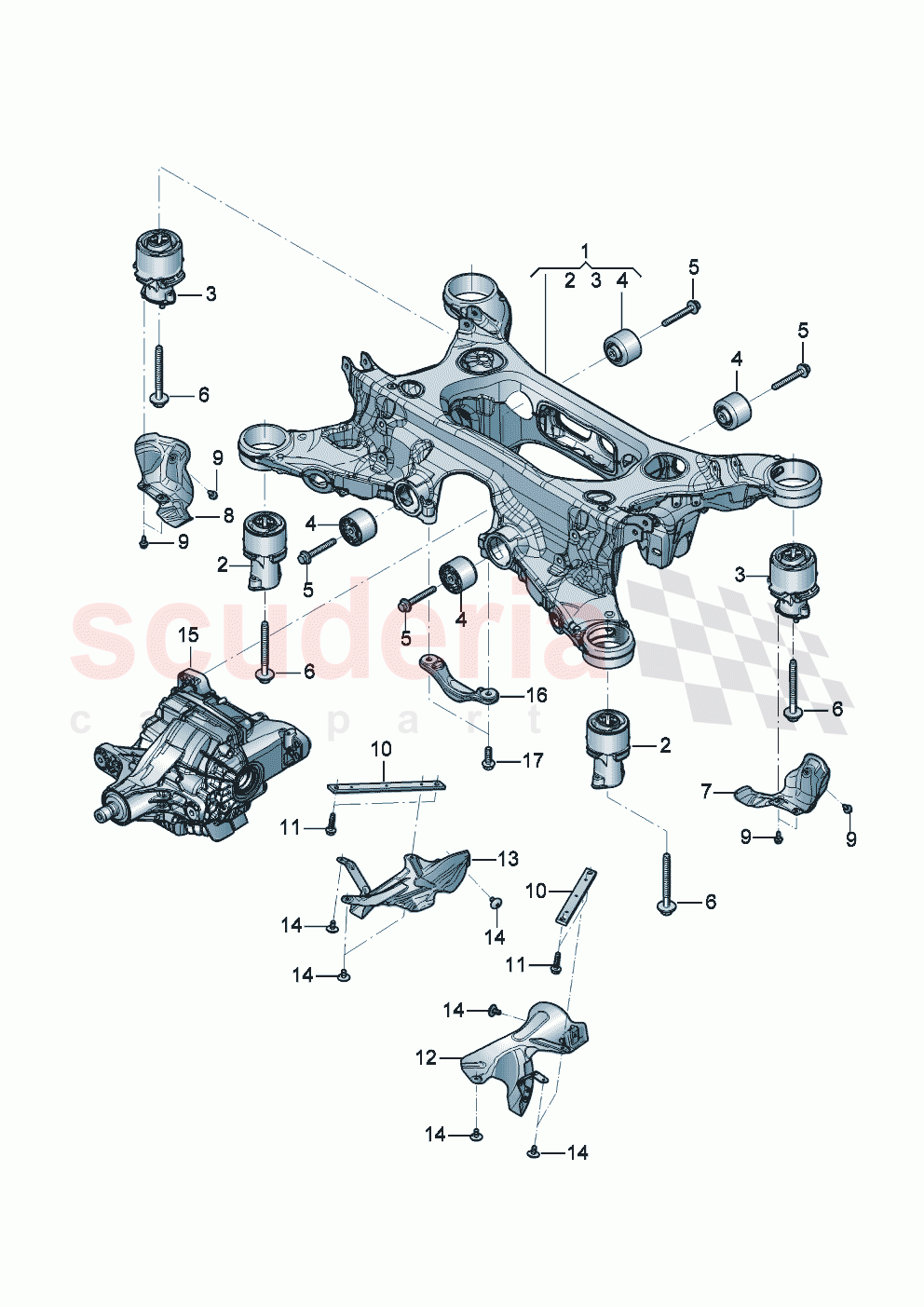

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	976599030G	sub-frame with rubber mounting	$2,827.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N10785402	Hexagon flange screw (combi)	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N 912 280 01	Hexagon flange screw (combi)	$8.55	To Order

Photo	Part No	Description	Price (each)	Stock
	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	$26.49	To Order

Photo	Part No	Description	Price (each)	Stock
	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	$27.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N10338302	set screw, D - 11.12.2006>>	$6.46	To Order

Photo	Part No	Description	Price (each)	Stock
	971505477	Brace	$95.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N10323207	Hex collared bolt	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	971825729D	Heat shield	$51.81	To Order

Photo	Part No	Description	Price (each)	Stock
	971825729E	Heat shield	$53.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096604	Socket head bolt with inner multipoint head	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	971505447	Transverse strut	$73.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N 106 284 01	Hex collared bolt	$4.02	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	976599030G	sub-frame with rubber mounting	976599030G sub-frame with rubber mounting PR:0N5	$2,827.11	1	TO
5	N10785402	Hexagon flange screw (combi)	N10785402 Hexagon flange screw (combi) M12X1,5X95	$4.22	4	TO
6	N 912 280 01	Hexagon flange screw (combi)	N 912 280 01 Hexagon flange screw (combi) M14X1.5X145- S22	$8.55	4	TO
7	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613B Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> left rear	$26.49	1	TO
8	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613C Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> right rear	$27.08	1	TO
9	N10338302	set screw, D - 11.12.2006>>	N10338302 set screw, D - 11.12.2006>> M5 X 12MM	$6.46	6	TO
10	971505477	Brace	971505477 Brace left a. right	$95.79	2	TO
11	N10323207	Hex collared bolt	N10323207 Hex collared bolt M10X40	$3.15	4	TO
12	971825729D	Heat shield	971825729D Heat shield side, left	$51.81	1	TO
13	971825729E	Heat shield	971825729E Heat shield side, right	$53.39	1	TO
14	N91096604	Socket head bolt with inner multipoint head	N91096604 Socket head bolt with inner multipoint head M6X12	$2.92	8	TO
16	971505447	Transverse strut	971505447 Transverse strut PR:0N5	$73.81	1	TO
17	N 106 284 01	Hex collared bolt IN STOCK	N 106 284 01 Hex collared bolt M12X1,5X40 ,PR:0N5 IN STOCK	$4.02	2	IN

Sub-Frame With Rubber Mounting

Bentley New Flying Spur (2025-2026)
