Name: Support frame front axle
Rating: 4.7 (1 reviews)

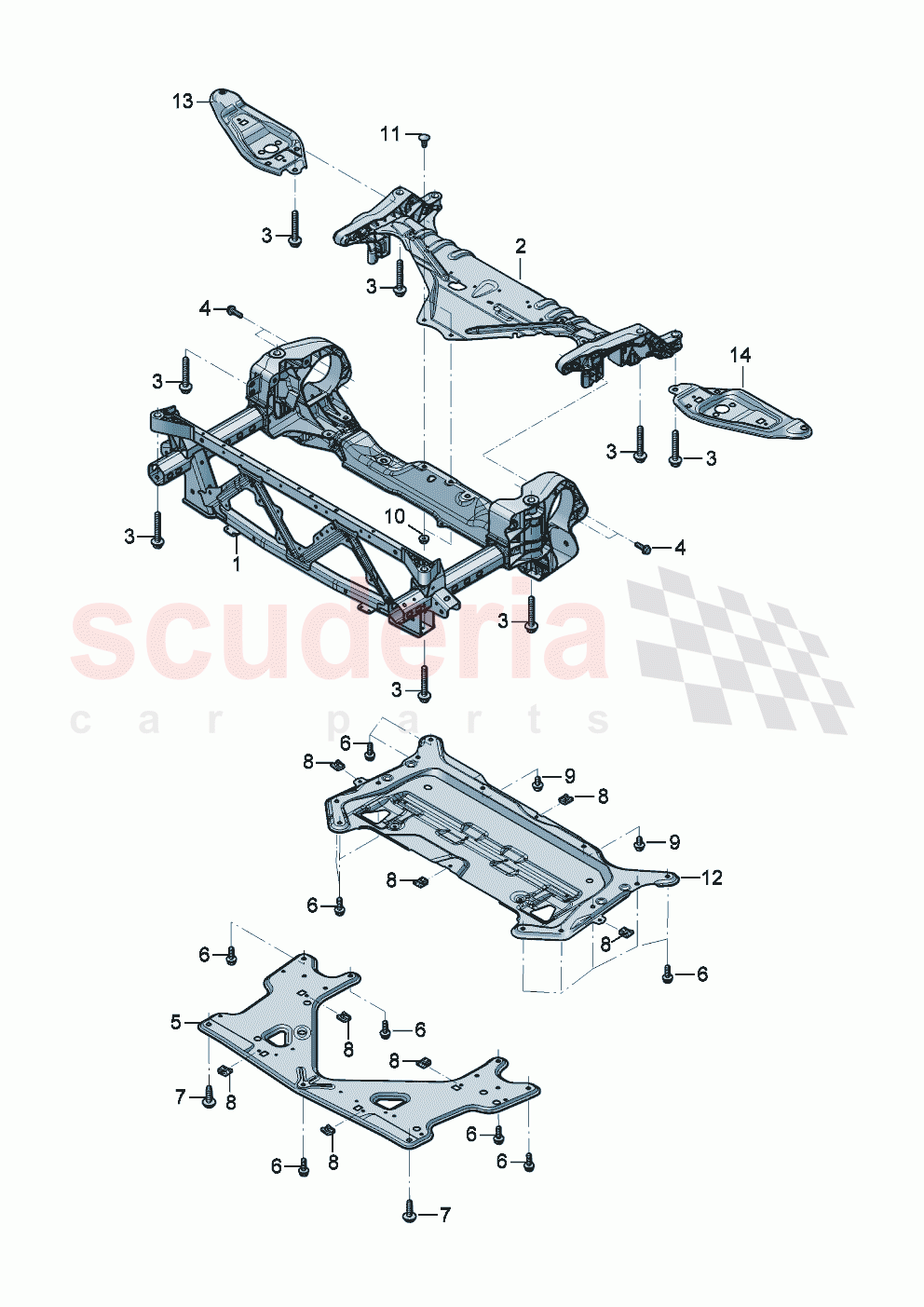

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	976400048F	Support frame also use: D - 10.06.2024>>	$3,204.06	To Order

Photo	Part No	Description	Price (each)	Stock
	976407487A	Reinforcement for cross member	$581.61	To Order

Photo	Part No	Description	Price (each)	Stock
	N91244301	Hexagon collared bolt with hexagon socket head (duo)	$12.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N 106 296 02	Hex collared bolt	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	976407129A	Reinforcement plate Reinforcement	$337.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N91243701	Hexagon collared bolt with hexagon socket head (duo)	$5.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N90958803	hexagon head bolt (combi)	$2.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT007380	clamping nut	$3.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91244201	12-point head bolt	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N10609207	Hexagon collar nut	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	N91259801	flat round head bolt	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	976407129B	Reinforcement plate	$337.66	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	976400048F	Support frame also use: D - 10.06.2024>>	976400048F Support frame also use: D - 10.06.2024>>	$3,204.06	1	TO
2	976407487A	Reinforcement for cross member	976407487A Reinforcement for cross member upper rear	$581.61	1	TO
3	N91244301	Hexagon collared bolt with hexagon socket head (duo)	N91244301 Hexagon collared bolt with hexagon socket head (duo) M12X1.5X90	$12.77	8	TO
4	N 106 296 02	Hex collared bolt	N 106 296 02 Hex collared bolt M10X35	$2.56	4	TO
5	976407129A	Reinforcement plate Reinforcement	976407129A Reinforcement plate Reinforcement lower front	$337.66	1	TO
6	N91243701	Hexagon collared bolt with hexagon socket head (duo)	N91243701 Hexagon collared bolt with hexagon socket head (duo) M8X30	$5.60	15	TO
7	N90958803	hexagon head bolt (combi) IN STOCK	N90958803 hexagon head bolt (combi) M10X40 IN STOCK	$2.65	4	IN
8	WHT007380	clamping nut IN STOCK	WHT007380 clamping nut ST4.8X22X18 IN STOCK	$3.28	8	IN
9	N91244201	12-point head bolt	N91244201 12-point head bolt M8X20	$0.79	2	TO
10	N10609207	Hexagon collar nut	N10609207 Hexagon collar nut M8	$0.48	2	TO
11	N91259801	flat round head bolt	N91259801 flat round head bolt M8X20	$3.04	2	TO
12	976407129B	Reinforcement plate	976407129B Reinforcement plate lower rear	$337.66	1	TO

Support Frame Front Axle

Bentley New Flying Spur (2025-2026)
