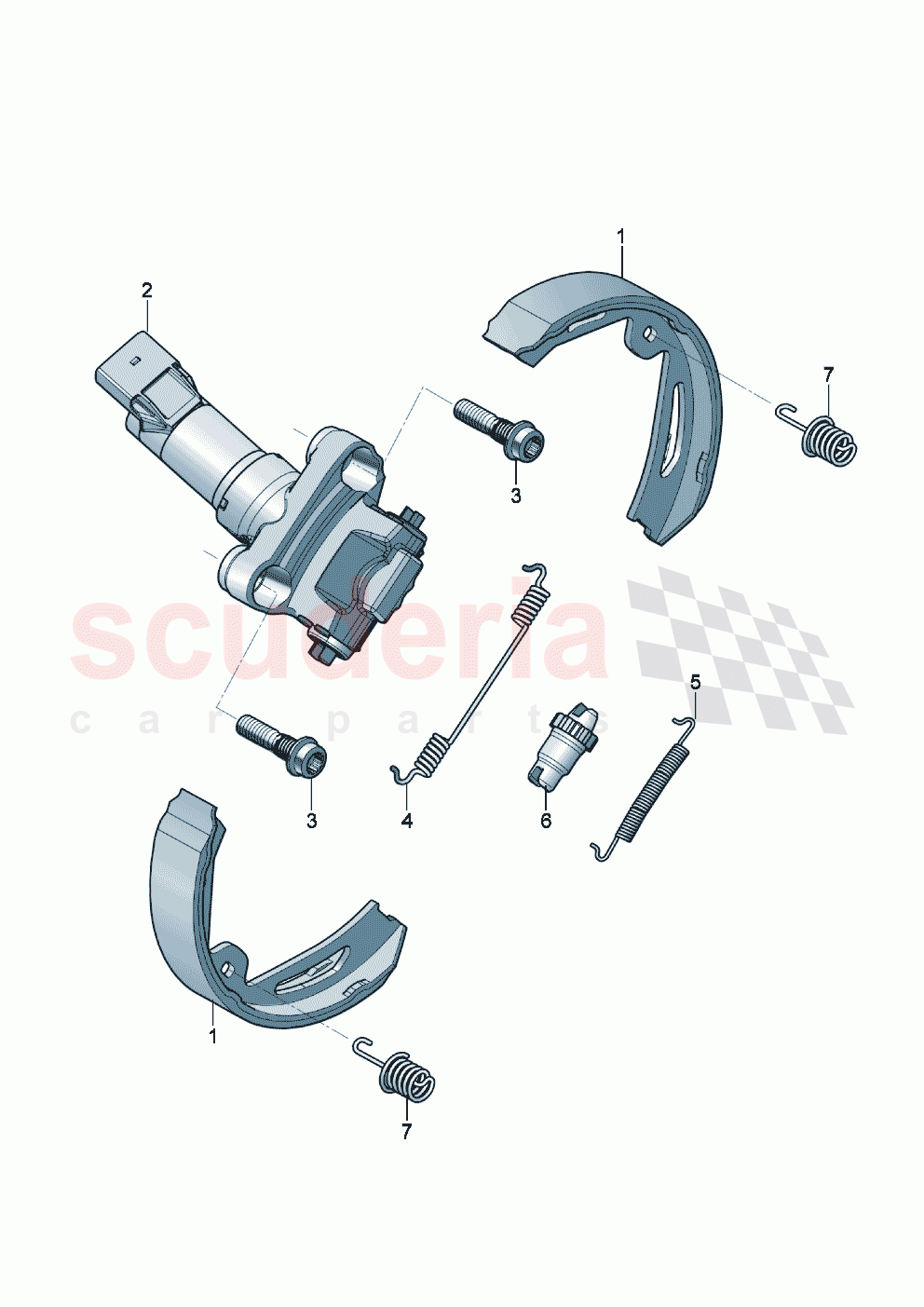

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9Y0698533D	1 set: brake shoes with linings D - 22.05.2023>>	$530.07	To Order

Photo	Part No	Description	Price (each)	Stock
	9Y0907615	Servomotor for parking brake 'EPB'	$388.72	To Order
	9Y0907616	Servomotor for parking brake 'EPB'	$388.72	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005378	Cylinder fitting screw with inner multipoint head	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	971609715	tension spring	$15.84	To Order

Photo	Part No	Description	Price (each)	Stock
	298609717	tension spring	$23.01	To Order

Photo	Part No	Description	Price (each)	Stock
	298609723	adjustment screw	$23.39	To Order

Photo	Part No	Description	Price (each)	Stock
	298609583	Pressure spring	$36.37	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	9Y0698533D	1 set: brake shoes with linings D - 22.05.2023>>	9Y0698533D 1 set: brake shoes with linings D - 22.05.2023>> 4 pcs	$530.07	1
2	9Y0907615	Servomotor for parking brake 'EPB'	9Y0907615 Servomotor for parking brake 'EPB' left	$388.72	1
2	9Y0907616	Servomotor for parking brake 'EPB'	9Y0907616 Servomotor for parking brake 'EPB' right	$388.72	1
3	WHT005378	Cylinder fitting screw with inner multipoint head	WHT005378 Cylinder fitting screw with inner multipoint head M10X1,5X40	$3.34	4
4	971609715	tension spring	971609715 tension spring upper	$15.84	2
5	298609717	tension spring	298609717 tension spring lower	$23.01	2
6	298609723	adjustment screw	298609723 adjustment screw	$23.39	2
7	298609583	Pressure spring	298609583 Pressure spring	$36.37	4
