Name: Bonnet
Rating: 4.8 (1 reviews)

Diagram
INFO

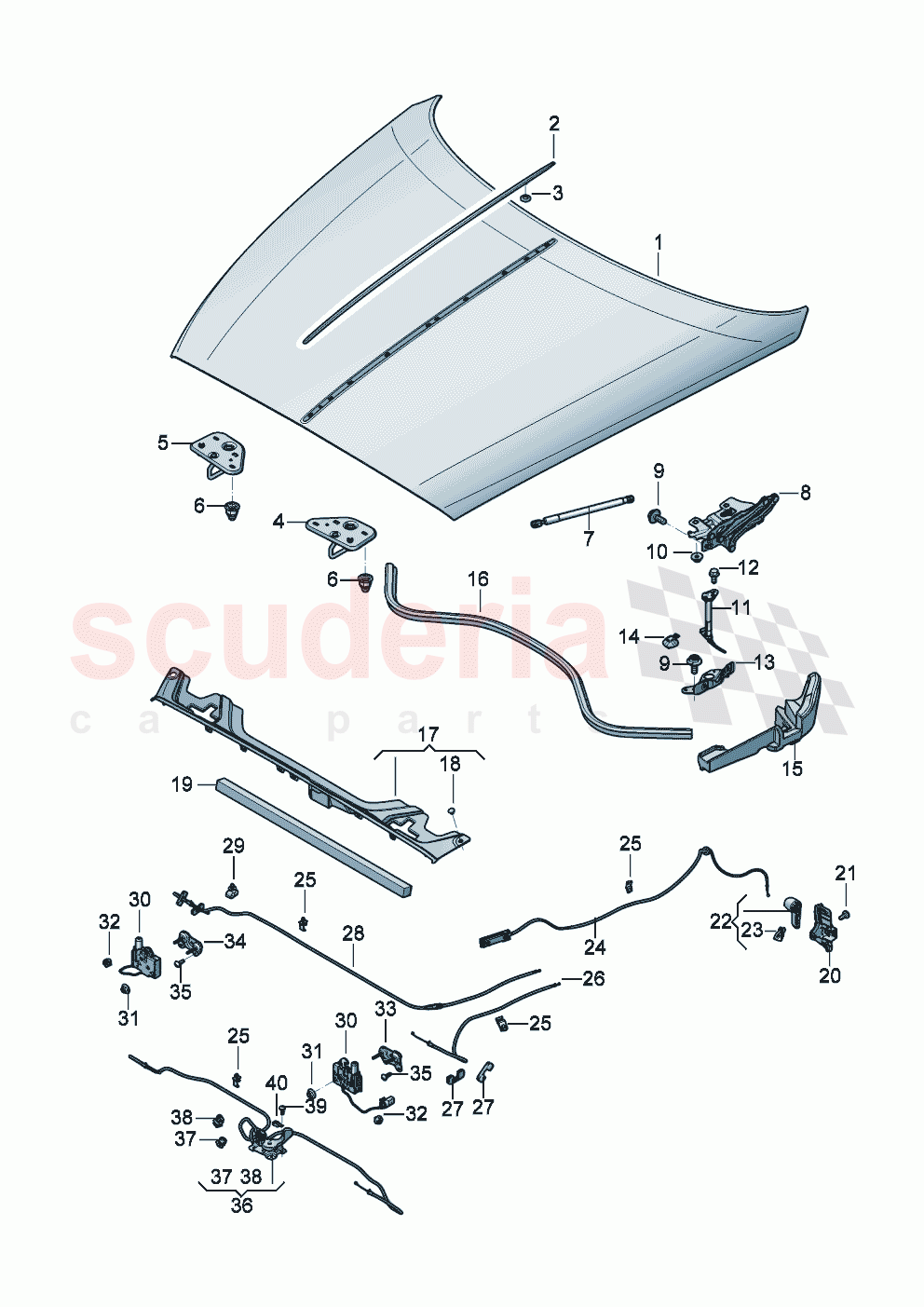

Bonnet of Bentley Bentley New Flying Spur (2025-2026)

Bentley New Flying Spur (2025-2026) - Bonnet

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SE823031D	Bonnet	$10,712.13	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE853194D	Decorative trim additionally to be used items:	$300.36	To Order
	3SE853194E	Decorative trim additionally to be used items:	$275.34	To Order
	3SE853194F	Decorative trim additionally to be used items:	$379.64	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT009962	Clamping washer	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823259A	striker plate for lid	$44.16	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823260A	striker plate for lid	$44.16	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001308	cap nut, self-locking	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823359	Gas strut	$75.37	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823295A	Bonnet hinge	$971.81	To Order
	3SE823296A	Bonnet hinge	$971.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N91205602	Hexagon collared bolt with multi-point socket head (duo) D - 01.08.2024>>	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	N 907 611 03	Hexagon collar nut self-locking	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA823823A	Actuator D - 19.12.2022>>	$185.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	971823611	hinge bracket	$32.96	To Order
	971823612	hinge bracket	$32.96	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971830F	bracket for connector housing flat connector housing For hole/material thickness:	$11.92	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE821169A	Hinge cover	$54.17	To Order
	3SE821170A	Hinge cover	$54.17	To Order

Photo	Part No	Description	Price (each)	Stock
	971823737	seal for water box	$66.24	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE807397D	cover for bonnet lock	$251.28	To Order

Photo	Part No	Description	Price (each)	Stock
	N91150301	Bungs	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971823633	Bracket	$37.53	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	Oval hexagon socket head bolt	$0.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971 823 533 B	release lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3SD823543B	Bowden cable	$41.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N90681301	bracket for corrugated pipe	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823531	Bowden cable	$38.30	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0955125	Clip	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823532	Bowden cable	$38.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7L6 971 880	Cable holder	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA823509	latch	$109.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N90887704	hex. nut	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	Cable ties	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE823529A	Release element	$125.13	To Order

Photo	Part No	Description	Price (each)	Stock
	3C8 971 850	Cable ties toothed quadrant	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	5M0 971 838 A	cable tie with terminal socket	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N91074201	Hexagon socket head bolt	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N90937702	Cable ties toothed quadrant for starter	$1.18	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	3SE823031D	Bonnet	3SE823031D Bonnet	$10,712.13	1	TO
2	3SE853194D	Decorative trim additionally to be used items:	3SE853194D Decorative trim additionally to be used items: Chrome 3 ,PR:4B1,4B6	$300.36	1	TO
2	3SE853194E	Decorative trim additionally to be used items:	3SE853194E Decorative trim additionally to be used items: black 3 ,PR:4B3,4B5	$275.34	1	TO
2	3SE853194F	Decorative trim additionally to be used items:	3SE853194F Decorative trim additionally to be used items: Granite 3 ,PR:VQ0	$379.64	1	TO
3	WHT009962	Clamping washer	WHT009962 Clamping washer B3.5X9.7	$0.92	1	TO
4	3SE823259A	striker plate for lid	3SE823259A striker plate for lid left	$44.16	1	TO
5	3SE823260A	striker plate for lid	3SE823260A striker plate for lid right	$44.16	1	TO
6	WHT001308	cap nut, self-locking	WHT001308 cap nut, self-locking M6	$4.13	4	TO
7	3SE823359	Gas strut	3SE823359 Gas strut left a. right	$75.37	2	TO
8	3SE823295A	Bonnet hinge	3SE823295A Bonnet hinge left	$971.81	1	TO
8	3SE823296A	Bonnet hinge	3SE823296A Bonnet hinge right	$971.81	1	TO
9	N91205602	Hexagon collared bolt with multi-point socket head (duo) D - 01.08.2024>>	N91205602 Hexagon collared bolt with multi-point socket head (duo) D - 01.08.2024>>	$1.97	8	TO
10	N 907 611 03	Hexagon collar nut self-locking	N 907 611 03 Hexagon collar nut self-locking M8	$1.57	4	TO
11	3SA823823A	Actuator D - 19.12.2022>> IN STOCK	3SA823823A Actuator D - 19.12.2022>> left a. right ,PR:VL2 IN STOCK	$185.55	2	IN
12	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16	$0.98	2	TO
13	971823611	hinge bracket	971823611 hinge bracket left	$32.96	1	TO
13	971823612	hinge bracket	971823612 hinge bracket right	$32.96	1	TO
14	3D0971830F	bracket for connector housing flat connector housing For hole/material thickness:	3D0971830F bracket for connector housing flat connector housing For hole/material thickness: PR:VL2	$11.92	2	TO
15	3SE821169A	Hinge cover	3SE821169A Hinge cover left	$54.17	1	TO
15	3SE821170A	Hinge cover	3SE821170A Hinge cover right	$54.17	1	TO
16	971823737	seal for water box	971823737 seal for water box	$66.24	1	TO
17	3SE807397D	cover for bonnet lock	3SE807397D cover for bonnet lock	$251.28	1	TO
18	N91150301	Bungs IN STOCK	N91150301 Bungs IN STOCK	$0.57	2	IN
20	971823633	Bracket	971823633 Bracket	$37.53	1	TO
21	N91096701	Oval hexagon socket head bolt IN STOCK	N91096701 Oval hexagon socket head bolt M6X16 IN STOCK	$0.98	2	IN
22	971 823 533 B	release lever	971 823 533 B release lever	-	1	PE	Enquire
24	3SD823543B	Bowden cable	3SD823543B Bowden cable	$41.60	1	TO
25	N90681301	bracket for corrugated pipe	N90681301 bracket for corrugated pipe	$1.04	12	TO
26	3SE823531	Bowden cable	3SE823531 Bowden cable left	$38.30	1	TO
27	3W0955125	Clip	3W0955125 Clip	$2.69	4	TO
28	3SE823532	Bowden cable	3SE823532 Bowden cable right	$38.30	1	TO
29	7L6 971 880	Cable holder	7L6 971 880 Cable holder	$1.16	1	TO
30	3SA823509	latch	3SA823509 latch left a. right	$109.92	2	TO
31	N90887704	hex. nut	N90887704 hex. nut M6	$1.39	4	TO
32	3W0971838	Cable ties	3W0971838 Cable ties	$0.79	2	TO
36	3SE823529A	Release element	3SE823529A Release element	$125.13	1	TO
37	3C8 971 850	Cable ties toothed quadrant	3C8 971 850 Cable ties toothed quadrant 4,6X156MM outer	$0.59	2	TO
38	5M0 971 838 A	cable tie with terminal socket	5M0 971 838 A cable tie with terminal socket	$1.77	1	TO
39	N91074201	Hexagon socket head bolt	N91074201 Hexagon socket head bolt M5X16	$0.88	3	TO
40	N90937702	Cable ties toothed quadrant for starter	N90937702 Cable ties toothed quadrant for starter 4,6X193 outer	$1.18	1	TO
