Name: Air supply unit Pressure accumulator Air line connecting parts for self- levelling
Rating: 5.0 (1 reviews)

Diagram
INFO

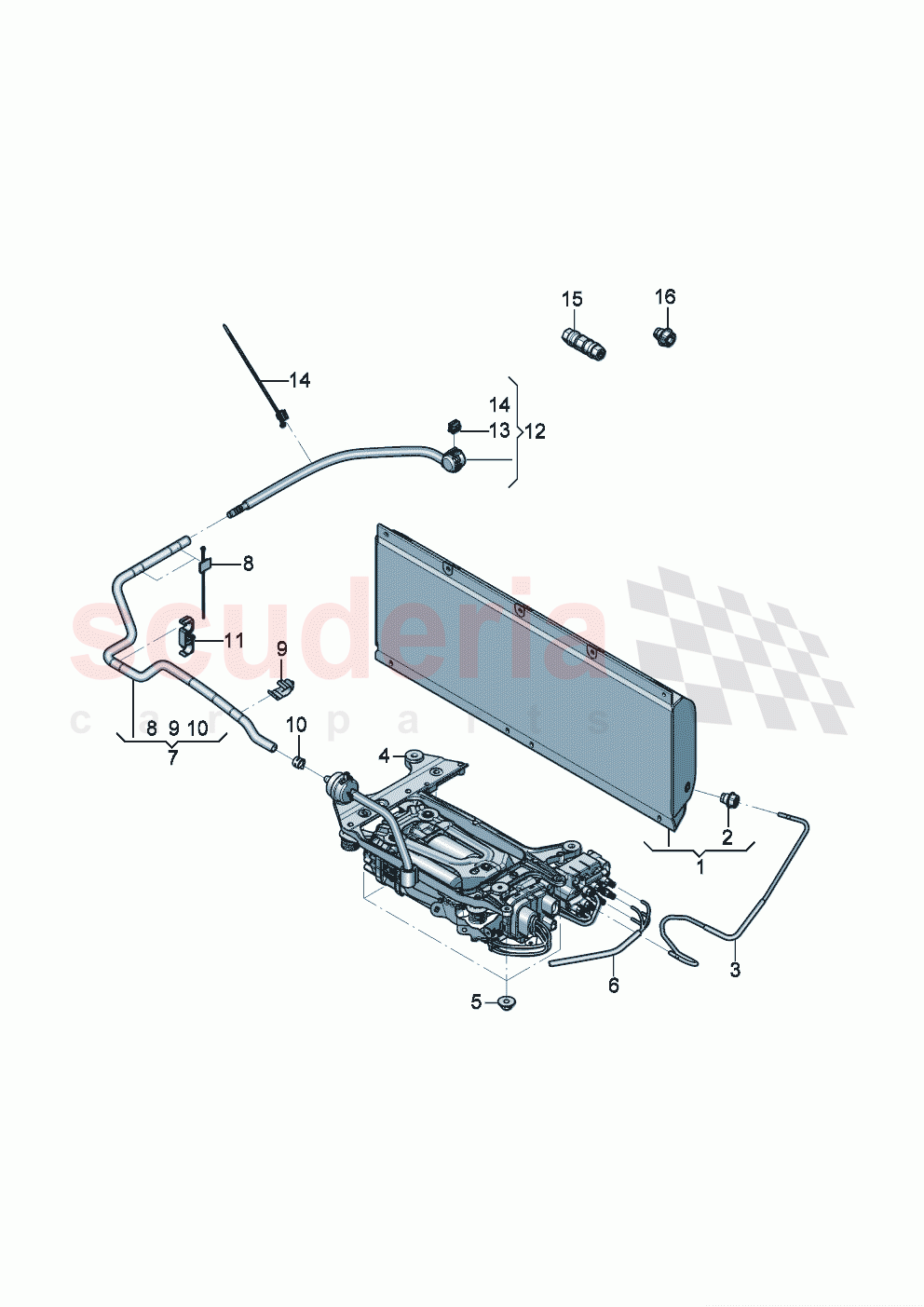

Air supply unit Pressure accumulator Air line connecting parts for self- levelling of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - Air supply unit Pressure accumulator Air line connecting parts for self- levelling

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971616202	Pressure accumulator	$618.41	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0 616 758	Connection piece	$40.81	To Order
	7L0616757	push-on connector	$31.56	To Order

Photo	Part No	Description	Price (each)	Stock
	971616711B	Air line	$63.88	To Order
	N10158605	bolt,hex.hd.with shoul.(combi)	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	$3,268.85	To Order
	971616006H	Compressor single parts see: D - 04.10.2023>>	$3,268.85	To Order
	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	$3,268.85	To Order

Photo	Part No	Description	Price (each)	Stock
	N90887703	Hexagon flange nut, self-locking	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE616675A	Air line	$200.23	To Order
	3SE616715A	Air pipe	$198.76	To Order
	3SE616647A	Air line	$103.44	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971616795C	Hose	$56.32	To Order
	N 907 579 01	Hexagon collar nut	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	000971010	retaining plate for cable binder (self-adhesive)	$3.81	To Order
	N10772901	toothed lock washer	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	N90681601	Corrugated tube clip	$1.98	To Order
	971616711	Air line	$56.12	To Order

Photo	Part No	Description	Price (each)	Stock
	99951265109	Hose clamp	$3.63	To Order
	3SE616675	Air line	$200.23	To Order
	3SE616715	Air pipe	$231.90	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4F0 616 241	Connection piece	$40.81	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE 616 795	Intake hose	Enquire	To Order
	4B0 616 751	Connection piece	$40.81	To Order
	7L0 616 758	Connection piece	$40.81	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0854551	Edge protection	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0 971 838 M	cable tie with terminal socket	$1.97	IN STOCK
	3SA616795	Intake hose	$40.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0 616 241	Connection piece	$40.81	To Order
	3D0971838L	cable tie with terminal socket	$2.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4B0 616 751	Connection piece	$40.81	To Order
	5M0 971 838 A	cable tie with terminal socket	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	99951265109	Hose clamp	$3.63	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	971616202	Pressure accumulator	971616202 Pressure accumulator	$618.41	1	TO
	7L0 616 758		CONNECTION PIECE	from $40.81
2 Connection piece $40.81 1 TO 12 Connection piece $40.81 - TO
	2	7L0616757	push-on connector	7L0616757 push-on connector M10X1	$31.56	1	TO
	3	971616711B	Air line	971616711B Air line	$63.88	1	TO
	3	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16	$0.98	3	TO
	971616006G		COMPRESSOR SINGLE PARTS SEE: D - 01.09.2020>> - 03.10.2023	from $3,268.85
4 Compressor single parts see: D - 01.09.2020>> - 03.10.2023 $3,268.85 1 TO 4 Compressor single parts see: D - 01.09.2020>> - 03.10.2023 $3,268.85 1 TO
	4	971616006H	Compressor single parts see: D - 04.10.2023>>	971616006H Compressor single parts see: D - 04.10.2023>> 616-020	$3,268.85	1	TO
	5	N90887703	Hexagon flange nut, self-locking IN STOCK	N90887703 Hexagon flange nut, self-locking IN STOCK	$1.47	4	IN
	6	3SE616675A	Air line	3SE616675A Air line left front red 7585MM	$200.23	1	TO
	6	3SE616715A	Air pipe	3SE616715A Air pipe right front green 9100MM	$198.76	1	TO
	6	3SE616647A	Air line	3SE616647A Air line left rear black 1300MM	$103.44	1	TO
	6	3SE616649A	Air line	3SE616649A Air line right rear blue 1950MM	$115.12	1	TO
	6	3SA616141A	Retainer for air filter	3SA616141A Retainer for air filter	$17.06	1	TO
	7	971616795C	Hose	971616795C Hose	$56.32	1	TO
	7	N 907 579 01	Hexagon collar nut	N 907 579 01 Hexagon collar nut M6X20	$1.18	1	TO
	8	000971010	retaining plate for cable binder (self-adhesive)	000971010 retaining plate for cable binder (self-adhesive)	$3.81	2	TO
	8	N10772901	toothed lock washer	N10772901 toothed lock washer 15X25X30	$2.16	1	TO
	9	N90681601	Corrugated tube clip	N90681601 Corrugated tube clip 13	$1.98	1	TO
	9	971616711	Air line	971616711 Air line 6MM	$56.12	1	TO
	99951265109		HOSE CLAMP	from $3.63
10 Hose clamp $3.63 1 TO 17 Hose clamp $3.63 1 TO
	10	3SE616675	Air line	3SE616675 Air line left front red 7645MM	$200.23	1	TO
	10	3SE616715	Air pipe	3SE616715 Air pipe right front green 9135MM	$231.90	1	TO
	10	3SE616647	Air line	3SE616647 Air line left rear black 1224MM	$103.44	1	TO
	10	3SE616649	Air line	3SE616649 Air line right rear blue 1842MM	$115.12	1	TO
	4F0 616 241		CONNECTION PIECE	from $40.81
11 Connection piece $40.81 - TO 15 Connection piece $40.81 - TO
	12	3SE 616 795	Intake hose	3SE 616 795 Intake hose	-	1	PE	Enquire
	4B0 616 751		CONNECTION PIECE	from $40.81
12 Connection piece $40.81 - TO 16 Connection piece $40.81 - TO
	13	3W0854551	Edge protection	3W0854551 Edge protection	$7.50	1	TO
	14	3D0 971 838 M	cable tie with terminal socket IN STOCK	3D0 971 838 M cable tie with terminal socket 4,6X200 IN STOCK	$1.97	1	IN
	14	3SA616795	Intake hose	3SA616795 Intake hose	$40.48	1	TO
	15	3D0971838L	cable tie with terminal socket IN STOCK	3D0971838L cable tie with terminal socket 4,6X200 IN STOCK	$2.25	1	IN
	16	5M0 971 838 A	cable tie with terminal socket	5M0 971 838 A cable tie with terminal socket 1-3MM vertical outer	$1.77	1	TO
