Name: Seat frame (electrically adjustable)
Rating: 5.0 (1 reviews)

Diagram
INFO

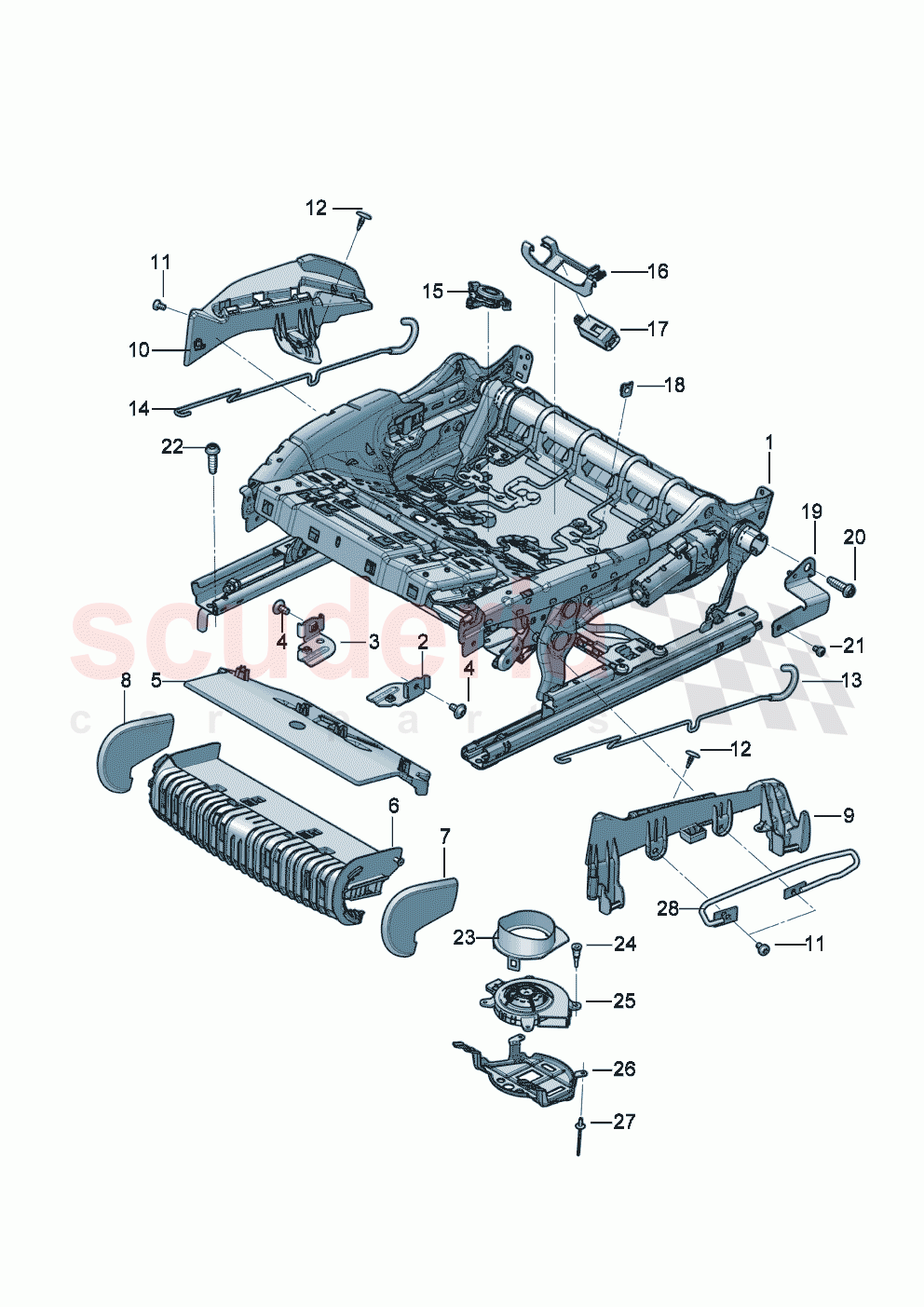

Seat frame (electrically adjustable) of Bentley Bentley New Continental Convertible (2019-2024)

Bentley New Continental Convertible (2019-2024) - Seat frame (electrically adjustable)

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	$2,473.71	To Order
	3SD881105A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	$2,473.71	To Order
	3SD881106A	seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>>	$2,267.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4H0 881 297	Retaining bracket	$24.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0 881 286	Retaining bracket	$24.33	To Order

Photo	Part No	Description	Price (each)	Stock
	N 907 371 07	Oval hexagon socket head bolt	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0 881 152	Cover for seat adjustment	$18.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 881 959	Carrier for seat adjustment	$33.11	To Order

Photo	Part No	Description	Price (each)	Stock
	36A 881 791	trim for seat cushion depth extension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36A 881 792	trim for seat cushion depth extension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3SD882349B	Seat side support adjustment for seat:	$96.77	To Order
	4M0 881 617	Seat side support adjustment for seat:	$128.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 881 618	Seat side support adjustment for seat:	$128.48	To Order
	3SD882350B	Seat side support adjustment for seat:	$96.77	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 320 01	Hexagon socket flat head bolt	$13.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0881635	Clip Retainer for trim	$1.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0881481A	upholstery wire	$17.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0881482A	upholstery wire	$17.58	To Order

Photo	Part No	Description	Price (each)	Stock
	8S0 963 553 D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	$76.55	To Order
	8S0 963 553 D	Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>>	$76.55	To Order
	4N0963553	Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512	$76.94	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0 881 547	Holder for light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N 900 880 03	Speed nut	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	3SD881125	bracket for seat mounting	$35.47	To Order
	3SD881126	bracket for seat mounting	$35.47	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 101 703 03	round hd. screw	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 912 052 01	Socket head bolt with inner multipoint head (Kombi)	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	36A 885 521	Air guide	$35.91	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	$5.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0963575A	ventliation motor D - 01.04.2019>>	$98.63	To Order
	4N0963575A	ventliation motor D - 01.04.2019>>	$98.63	To Order

Photo	Part No	Description	Price (each)	Stock
	8W0 881 367	Protective cap	$36.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N 909 311 01	Pop rivet	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	3SD885147	Tension wire D >> - 18.10.2023	$68.45	To Order
	3SD885147A	Tension wire D - 19.10.2023>>	$68.45	To Order
	3SD885148	Tension wire D >> - 18.10.2023	$67.57	To Order

...and 1 more part variants. See table on right for more details.

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	3SD881105A		SEAT FRAME WITH HEIGHT, TILT AND EXTENDABLE SEAT CUSHION ADJUSTMENT D - 27.05.2019>>	from $2,473.71
1 seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> $2,473.71 1 TO 1 seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> $2,473.71 1 TO
	3SD881106A		SEAT FRAME WITH HEIGHT, TILT AND EXTENDABLE SEAT CUSHION ADJUSTMENT D - 27.05.2019>>	from $2,267.57
1 seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> $2,267.57 1 TO 1 seat frame with height, tilt and extendable seat cushion adjustment D - 27.05.2019>> $2,267.57 1 TO
	2	4H0 881 297	Retaining bracket	4H0 881 297 Retaining bracket left	$24.33	1	TO
	3	4H0 881 286	Retaining bracket	4H0 881 286 Retaining bracket right	$24.33	1	TO
	4	N 907 371 07	Oval hexagon socket head bolt IN STOCK	N 907 371 07 Oval hexagon socket head bolt M6X12 IN STOCK	$0.80	2	IN
	5	4M0 881 152	Cover for seat adjustment	4M0 881 152 Cover for seat adjustment	$18.52	1	TO
	6	4M0 881 959	Carrier for seat adjustment	4M0 881 959 Carrier for seat adjustment	$33.11	1	TO
	7	36A 881 791	trim for seat cushion depth extension	36A 881 791 trim for seat cushion depth extension left	-	1	PE	Enquire
	8	36A 881 792	trim for seat cushion depth extension	36A 881 792 trim for seat cushion depth extension right	-	1	PE	Enquire
	9	3SD882349B	Seat side support adjustment for seat:	3SD882349B Seat side support adjustment for seat: left outer left	$96.77	1	TO
	9	4M0 881 617	Seat side support adjustment for seat:	4M0 881 617 Seat side support adjustment for seat: left inner right	$128.48	1	TO
	10	4M0 881 618	Seat side support adjustment for seat:	4M0 881 618 Seat side support adjustment for seat: right inner left	$128.48	1	TO
	10	3SD882350B	Seat side support adjustment for seat:	3SD882350B Seat side support adjustment for seat: right outer right	$96.77	1	TO
	11	N 107 320 01	Hexagon socket flat head bolt IN STOCK	N 107 320 01 Hexagon socket flat head bolt M6X14 IN STOCK	$13.16	4	IN
	12	3W0881635	Clip Retainer for trim IN STOCK	3W0881635 Clip Retainer for trim IN STOCK	$1.86	2	IN
	13	4M0881481A	upholstery wire	4M0881481A upholstery wire left	$17.58	1	TO
	14	4M0881482A	upholstery wire	4M0881482A upholstery wire right	$17.58	1	TO
	8S0 963 553 D		PRESSURE SENSOR F 3S-L-080 513>> F ZG-L-080 513>>	from $76.55
15 Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>> $76.55 1 TO 15 Pressure sensor F 3S-L-080 513>> F ZG-L-080 513>> $76.55 1 TO
	4N0963553		PRESSURE SENSOR F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512	from $76.94
15 Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512 $76.94 1 TO 15 Pressure sensor F 3S-K-078 496>> 3S-L-080 512 F ZG-K-078 496>> ZG-L-080 512 $76.94 1 TO
	16	4M0 881 547	Holder for light	4M0 881 547 Holder for light left a. right	-	1	PE	Enquire
	18	N 900 880 03	Speed nut	N 900 880 03 Speed nut M6X17X14	$0.88	4	TO
	19	3SD881125	bracket for seat mounting	3SD881125 bracket for seat mounting left	$35.47	1	TO
	19	3SD881126	bracket for seat mounting	3SD881126 bracket for seat mounting right	$35.47	1	TO
	20	WHT002796B	Socket head bolt with multi- point inner drive, self-lock. IN STOCK	WHT002796B Socket head bolt with multi- point inner drive, self-lock. M10X16 IN STOCK	$2.16	4	IN
	21	N 101 703 03	round hd. screw IN STOCK	N 101 703 03 round hd. screw IN STOCK	$1.18	1	IN
	22	N 912 052 01	Socket head bolt with inner multipoint head (Kombi)	N 912 052 01 Socket head bolt with inner multipoint head (Kombi) M10X35	$2.84	4	TO
	23	36A 885 521	Air guide	36A 885 521 Air guide left a. right	$35.91	1	TO
	24	4H0941117	Securing element	4H0941117 Securing element	$5.95	4	TO
	4N0963575A		VENTLIATION MOTOR D - 01.04.2019>>	from $98.63
25 ventliation motor D - 01.04.2019>> $98.63 1 TO 25 ventliation motor D - 01.04.2019>> $98.63 1 TO
	26	8W0 881 367	Protective cap	8W0 881 367 Protective cap left a. right	$36.03	1	TO
	27	N 909 311 01	Pop rivet	N 909 311 01 Pop rivet	$1.63	2	TO
	28	3SD885147	Tension wire D >> - 18.10.2023	3SD885147 Tension wire D >> - 18.10.2023 left	$68.45	1	TO
	28	3SD885147A	Tension wire D - 19.10.2023>>	3SD885147A Tension wire D - 19.10.2023>> left	$68.45	1	TO
	28	3SD885148	Tension wire D >> - 18.10.2023	3SD885148 Tension wire D >> - 18.10.2023 right	$67.57	1	TO
	28	3SD885148A	Tension wire D - 19.10.2023>>	3SD885148A Tension wire D - 19.10.2023>> right	$67.57	1	TO

Seat Frame (Electrically Adjustable)

Bentley New Continental Convertible (2019-2024)

Bentley New Continental Convertible (2019-2024) - Seat frame (electrically adjustable)
