Find Your Part

Photo Part No Description Price (each) Stock
3SA919597D Display unit and control panel with touchscreen D - 08.07.2019>> - 14.03.2021 $3,832.30 To Order
3SA919597D Display unit and control panel with touchscreen D - 08.07.2019>> - 14.03.2021 $3,832.30 To Order
3SA919597E Display unit and control panel with touchscreen Observe the technical product information – available via technical support D - 15.03.2021>> $3,832.30 To Order
Photo Part No Description Price (each) Stock
N10684701 Oval hexagon socket head bolt $0.98 IN STOCK
Photo Part No Description Price (each) Stock
3SA857147F Display bracket Observe the technical product information – available via technical support D - 17.06.2019>> - 26.03.2023 $5,748.48 To Order
3SA857147F Display bracket Observe the technical product information – available via technical support D - 17.06.2019>> - 26.03.2023 $5,748.48 To Order
3SA857147F Display bracket Observe the technical product information – available via technical support D - 17.06.2019>> - 26.03.2023 $5,748.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3SA907442 Control unit for display unit $507.98 To Order
Photo Part No Description Price (each) Stock
N10415903 Oval hexagon socket head bolt $0.48 To Order
Photo Part No Description Price (each) Stock
3SA863256B Display bracket D - 19.11.2018>> - 09.10.2022 $108.95 To Order
3SA863256C Display bracket D - 10.10.2022>> $108.95 To Order
Photo Part No Description Price (each) Stock
4M0 035 724 A Connection for external audio sources $294.47 To Order
Photo Part No Description Price (each) Stock
3SA035897A Central computer D - 03.06.2019>> - 05.07.2021 $8,110.29 To Order
3SA035897A Central computer D - 03.06.2019>> - 05.07.2021 $8,110.29 To Order
3SA035897B Central computer D - 05.07.2021>> $8,110.29 To Order
Photo Part No Description Price (each) Stock
8V0919129F TV tuner D >> - 03.06.2019 $2,670.04 To Order
8V0919129G TV tuner D - 03.06.2019>> - 03.10.2021 $2,921.34 To Order
8V0919129H TV tuner D - 04.10.2021>> $2,921.34 To Order
Photo Part No Description Price (each) Stock
3SD035480A bracket for tv receiver (tuner) $65.52 To Order
Photo Part No Description Price (each) Stock
N10338903 Hex collared bolt $0.79 To Order
Photo Part No Description Price (each) Stock
N91018901 Hexagon plastic collar nut $1.18 To Order

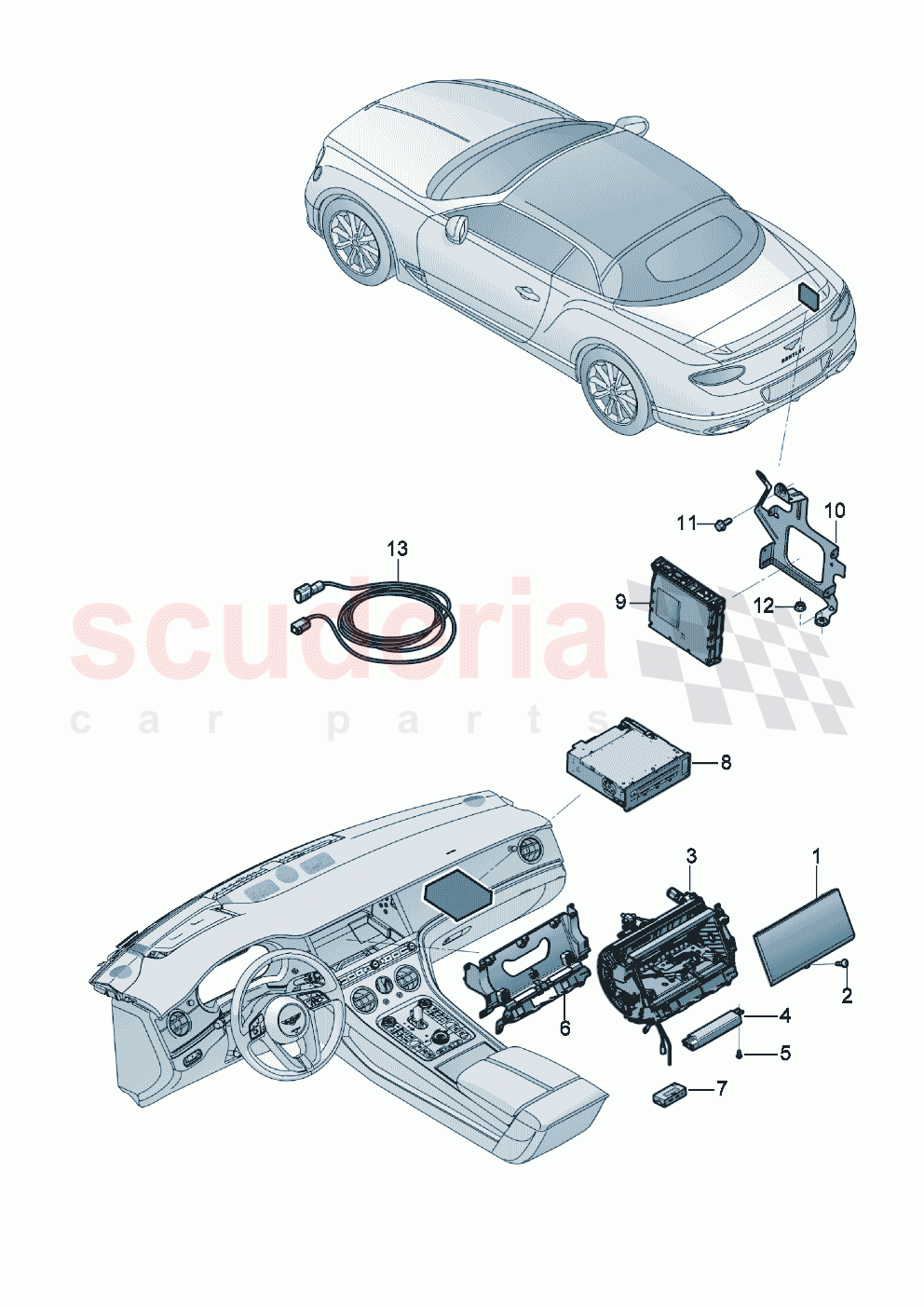

# Part Details Price
(each)
Qty on
Diagram
Add to
Cart

3SA919597D

DISPLAY UNIT AND CONTROL PANEL WITH TOUCHSCREEN D - 08.07.2019>> - 14.03.2021

from $3,832.30

1 3SA919597E
Display unit and control panel with touchscreen Observe the technical product information – available via technical support D - 15.03.2021>>
$3,832.30 1
TO
2 N10684701
Oval hexagon socket head bolt
M5X20
IN STOCK
$0.98 1
IN

3SA857147F

DISPLAY BRACKET OBSERVE THE TECHNICAL PRODUCT INFORMATION – AVAILABLE VIA TECHNICAL SUPPORT D - 17.06.2019>> - 26.03.2023

from $5,748.48

3 3SA857147G
Display bracket Observe the technical product information – available via technical support D - 27.03.2023>>
Turning mech. ,PR:QW6
$5,748.48 1
TO
4 3SA907442
Control unit for display unit
PR:QW6
$507.98 1
TO
5 N10415903
Oval hexagon socket head bolt
$0.48 1
TO
6 3SA863256B
Display bracket D - 19.11.2018>> - 09.10.2022
PR:QW5
$108.95 1
TO
6 3SA863256C
Display bracket D - 10.10.2022>>
PR:QW5
$108.95 1
TO
7 4M0 035 724 A
Connection for external audio sources
$294.47 1
TO

3SA035897A

CENTRAL COMPUTER D - 03.06.2019>> - 05.07.2021

from $8,110.29

8 3SA035897B
Central computer D - 05.07.2021>>
$8,110.29 1
TO
9 8V0919129F
TV tuner D >> - 03.06.2019
PR:ER5+QV1
$2,670.04 1
TO
9 8V0919129G
TV tuner D - 03.06.2019>> - 03.10.2021
PR:ER5+QV1
$2,921.34 1
TO
9 8V0919129H
TV tuner D - 04.10.2021>>
PR:ER5+QV1
$2,921.34 1
TO
10 3SD035480A
bracket for tv receiver (tuner)
PR:QV1
$65.52 1
TO
11 N10338903
Hex collared bolt
$0.79 2
TO
12 N91018901
Hexagon plastic collar nut
$1.18 1
TO
