Name: air conditioner compressor
Rating: 4.5 (1 reviews)

Diagram
INFO

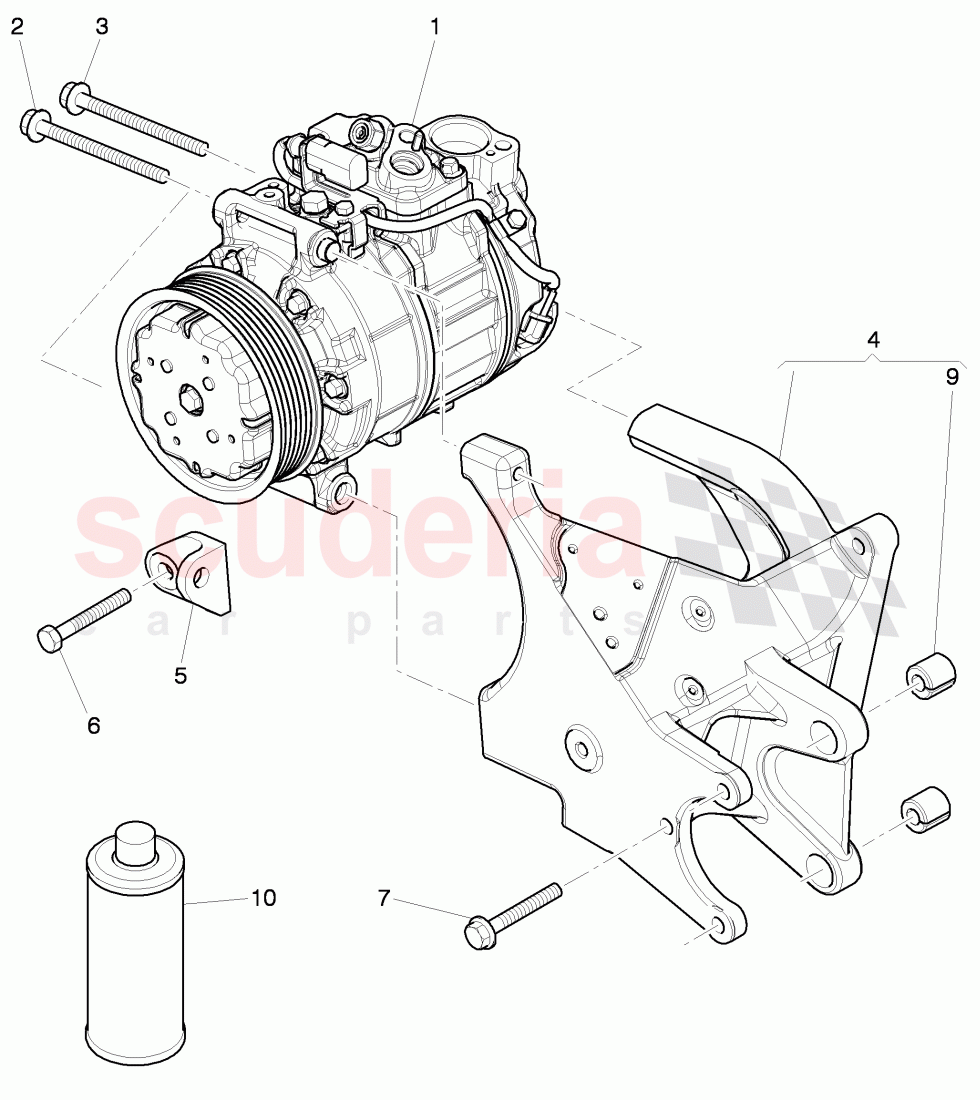

air conditioner compressor of Bentley Bentley Mulsanne (2010+)

Bentley Mulsanne (2010+) - air conditioner compressor

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0820803A	air conditioner compressor, for refrigerant:, D >> - MJ 2016	$3,740.02	To Order
	3Y0 816 803	air conditioner compressor, for refrigerant:, D - MJ 2017>>	$3,533.88	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002778	bolt, F >> 3Y-C-016 328, F >> ZH-C-016 328	$45.34	To Order
	N10692601	Hexagon head bolt, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002778	bolt, F >> 3Y-C-016 328, F >> ZH-C-016 328	$45.34	To Order
	N10692601	Hexagon head bolt, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	07V260881B	bracket, air conditioner compressor, D - 05.09.2011>>	$573.26	To Order

Photo	Part No	Description	Price (each)	Stock
	07V903145A	bracket for compressor	$82.45	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002858	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	$53.58	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002766	bolt, also use:	$9.52	To Order

Photo	Part No	Description	Price (each)	Stock
	068903147H	bushing	$7.84	To Order

Photo	Part No	Description	Price (each)	Stock
	G052300A2	oil for refrigerant compressor, for refrigerant:, D >> - MJ 2016	$153.91	To Order
	G 055 535 M2	oil for refrigerant compressor, for refrigerant:, D - MJ 2017>>	$258.64	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	3Y0820803A	air conditioner compressor, for refrigerant:, D >> - MJ 2016	3Y0820803A air conditioner compressor, for refrigerant:, D >> - MJ 2016 R134A,	$3,740.02	1	TO
	1	3Y0 816 803	air conditioner compressor, for refrigerant:, D - MJ 2017>>	3Y0 816 803 air conditioner compressor, for refrigerant:, D - MJ 2017>> R1234YF,	$3,533.88	1	TO
	WHT002778		BOLT, F >> 3Y-C-016 328, F >> ZH-C-016 328	from $45.34
2 bolt, F >> 3Y-C-016 328, F >> ZH-C-016 328 $45.34 2 TO 3 bolt, F >> 3Y-C-016 328, F >> ZH-C-016 328 $45.34 1 TO
	N10692601		HEXAGON HEAD BOLT, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	from $6.08
2 Hexagon head bolt, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $6.08 2 TO 3 Hexagon head bolt, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> $6.08 1 TO
	4	07V260881B	bracket, air conditioner compressor, D - 05.09.2011>>	07V260881B bracket, air conditioner compressor, D - 05.09.2011>>	$573.26	1	TO
	5	07V903145A	bracket for compressor	07V903145A bracket for compressor	$82.45	1	TO
	6	WHT002858	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002858 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 5/16UNFX1.750",	$53.58	1	TO
	7	WHT002766	bolt, also use:	WHT002766 bolt, also use: M8X45,	$9.52	3	TO
	9	068903147H	bushing	068903147H bushing	$7.84	2	TO
	10	G052300A2	oil for refrigerant compressor, for refrigerant:, D >> - MJ 2016	G052300A2 oil for refrigerant compressor, for refrigerant:, D >> - MJ 2016 250ml, R134A,	$153.91	-	TO
	10	G 055 535 M2	oil for refrigerant compressor, for refrigerant:, D - MJ 2017>>	G 055 535 M2 oil for refrigerant compressor, for refrigerant:, D - MJ 2017>> 250ml, R1234YF,	$258.64	-	TO
