Name: crankcase
Rating: 4.1 (1 reviews)

Find Your Part

Diagram
INFO

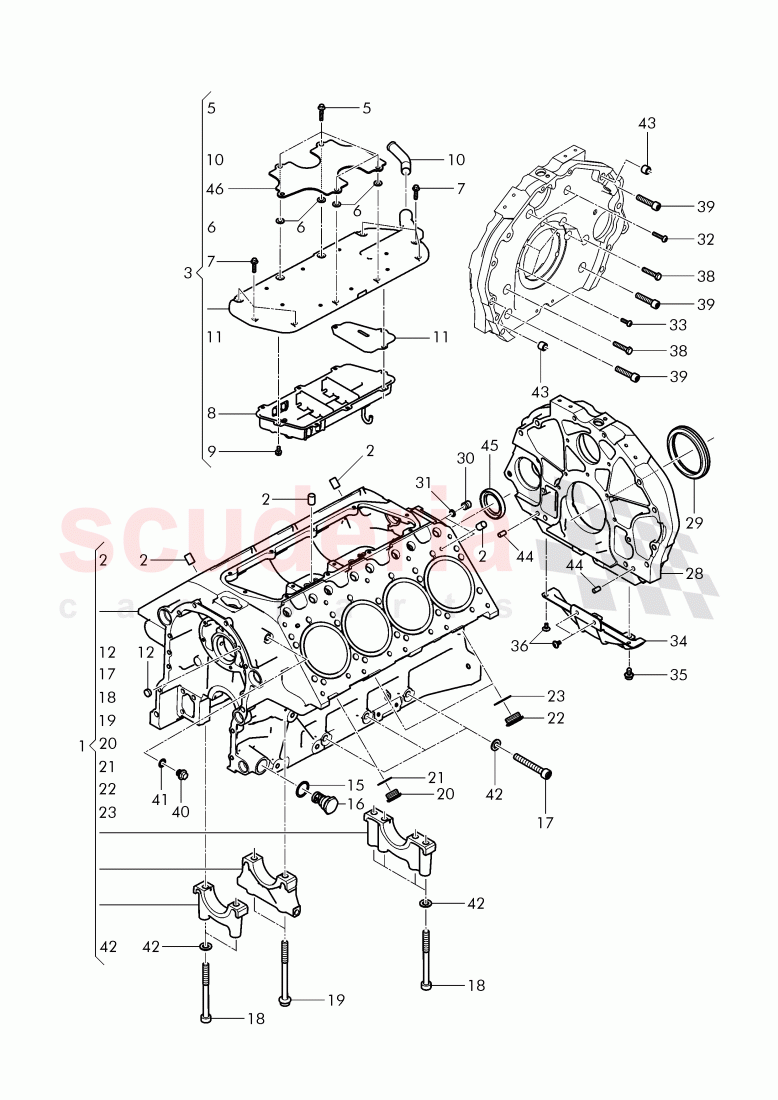

crankcase of Bentley Bentley Mulsanne (2010+)

Bentley Mulsanne (2010+) - crankcase

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	07V 103 011 F	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977	$17,227.77	To Order
	07V 103 011 G	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	$17,227.77	To Order
	07V 103 011 H	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>	$27,829.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WHT002876	dowel pin	$80.09	To Order

Photo	Part No	Description	Price (each)	Stock
	07V 103 461 G	cover plate, Tappet Block, also use:, D - 07.11.2016>>	$1,115.13	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002802	bolt	$5.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT004040	washer	$7.40	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002754	bolt	$11.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V 103 623 C	baffle plate, cover, D - 07.11.2016>>	$170.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10005306	hexagon head bolt (combi) D - MJ 2007>>	$1.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V103189	connecting pipe, breather assy.	$24.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V103729A	separator plate	$25.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002884	threaded plug	$20.59	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002910	sealing washer	$8.50	To Order

Photo	Part No	Description	Price (each)	Stock
	07V103136	retaining pin, also use:	$113.06	To Order

Photo	Part No	Description	Price (each)	Stock
	N90917401	socket head bolt with inner multipoint head	$7.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90917501	socket head bolt with inner multipoint head	$7.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock

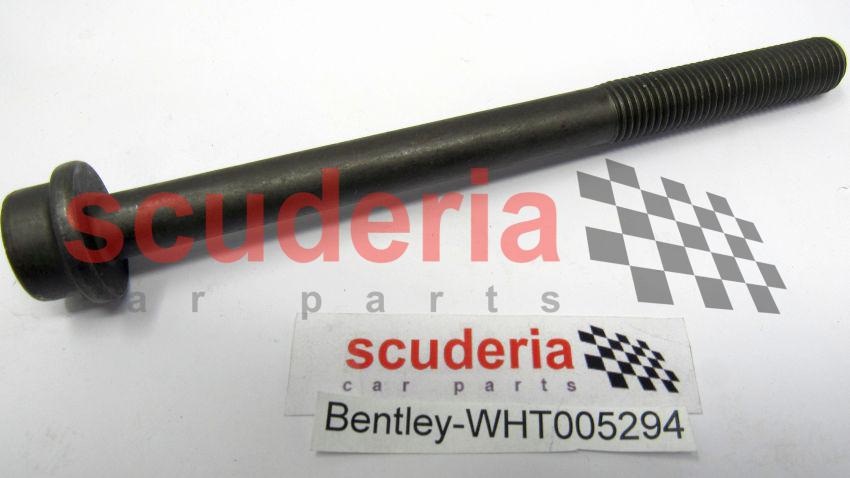

	WHT005294	multi-point socket head bolt with collar	$13.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002853	threaded plug	$37.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	$3.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V103498	threaded plug	$60.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	07V103546A	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977	$1,727.67	To Order
	07V 103 546 B	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>>	$2,261.69	To Order

Photo	Part No	Description	Price (each)	Stock

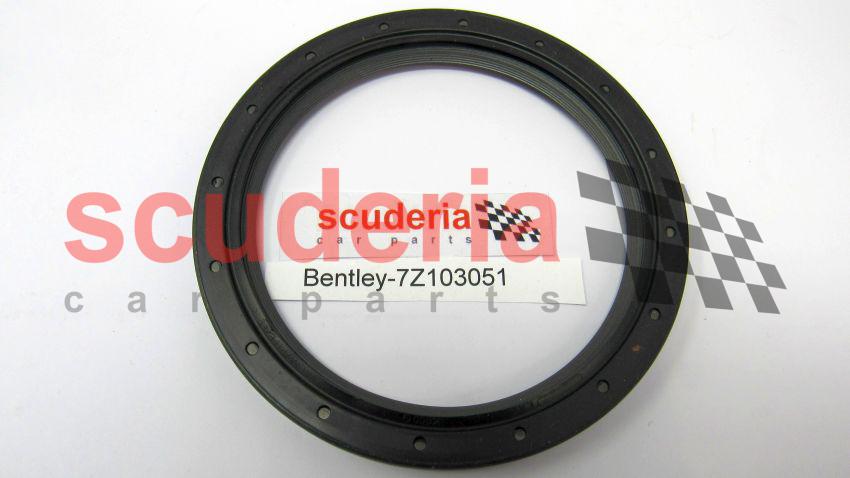

	07Z103051	shaft oil seal	$53.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V109420	threaded plug	$24.04	To Order

Photo	Part No	Description	Price (each)	Stock
	07V103677	o-ring	$14.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097001	Hexagon socket flat head bolt	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0301257A	closing plate	$32.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N10668402	screw, hex. hd.	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002857	Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	$18.83	To Order
	N 104 154 02	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N90941703	socket head bolt with inner multipoint head D - 11.12.2006>>	$2.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002868	oil drain plug	$89.51	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002906	washer	$8.11	To Order

Photo	Part No	Description	Price (each)	Stock
	N01153119	washer	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002885	dowel pin	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	07V109293	shaft oil seal	$131.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07V103954	insulation plate (self-adhesive)	$171.05	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	07V103204	threaded insert	07V103204 threaded insert 0.25",	$17.02	-	TO
-	07V103204A	threaded insert	07V103204A threaded insert 0.3125",	$14.28	-	TO
-	N0222262	threaded insert	N0222262 threaded insert M8 X 20MM,	$13.18	-	TO
-	02Q301561A	threaded insert	02Q301561A threaded insert M10 X 25MM,	$4.69	-	TO
-	N10673801	threaded insert	N10673801 threaded insert M12X1.5X30,	$4.46	-	TO
-	N 022 215 4	Thread inserts	N 022 215 4 Thread inserts M8X1,25X16,	$8.09	-	TO
-	07V103204B	threaded insert	07V103204B threaded insert 0.375",	$3.01	-	TO
-	N0222021	threaded insert	N0222021 threaded insert M10X20,	$3.51	-	TO
1	07V 103 011 F	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977	07V 103 011 F crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 106 738 01, 103-020, 103-020, CKBB	$17,227.77	1	TO
1	07V 103 011 G	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	07V 103 011 G crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 106 738 01, 103-020, 103-020, CKBB	$17,227.77	1	TO
1	07V 103 011 H	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>	07V 103 011 H crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000> 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 022 215 4, N 106 738 01, 103-020, 103-020, CKBB	$27,829.49	1	TO
1	07V 103 011 K	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - MJ 2016>>	07V 103 011 K crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - MJ 2016>> 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 022 215 4, N 106 738 01, 103-020, 103-020, CZMA,CZMB	$17,227.77	1	TO
2	WHT002876	dowel pin	WHT002876 dowel pin 0.2495"X0.375",	$80.09	16	TO
3	07V 103 461 G	cover plate, Tappet Block, also use:, D - 07.11.2016>>	07V 103 461 G cover plate, Tappet Block, also use:, D - 07.11.2016>> LOCTITE 5970,	$1,115.13	1	TO
5	WHT002802	bolt IN STOCK	WHT002802 bolt M6X30, IN STOCK	$5.34	4	IN
6	WHT004040	washer	WHT004040 washer 7X16,	$7.40	4	TO
7	WHT002754	bolt IN STOCK	WHT002754 bolt M6X25, IN STOCK	$11.16	6	IN
8	07V 103 623 C	baffle plate, cover, D - 07.11.2016>> IN STOCK	07V 103 623 C baffle plate, cover, D - 07.11.2016>> IN STOCK	$170.38	1	IN
9	N10005306	hexagon head bolt (combi) D - MJ 2007>> IN STOCK	N10005306 hexagon head bolt (combi) D - MJ 2007>> M6X12, IN STOCK	$1.27	8	IN
10	07V103189	connecting pipe, breather assy. IN STOCK	07V103189 connecting pipe, breather assy. IN STOCK	$24.13	1	IN
11	07V103729A	separator plate	07V103729A separator plate	$25.31	1	TO
12	WHT002884	threaded plug	WHT002884 threaded plug	$20.59	1	TO
15	WHT002910	sealing washer	WHT002910 sealing washer	$8.50	1	TO
16	07V103136	retaining pin, also use:	07V103136 retaining pin, also use: LOCTITE 572,	$113.06	1	TO
17	N90917401	socket head bolt with inner multipoint head IN STOCK	N90917401 socket head bolt with inner multipoint head IN STOCK	$7.37	6	IN
18	N90917501	socket head bolt with inner multipoint head IN STOCK	N90917501 socket head bolt with inner multipoint head M12X130, IN STOCK	$7.17	6	IN
19	WHT005294	multi-point socket head bolt with collar IN STOCK	WHT005294 multi-point socket head bolt with collar M12X143, IN STOCK	$13.18	6	IN
20	WHT002853	threaded plug	WHT002853 threaded plug	$37.77	2	TO
21	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069 IN STOCK	WHT002909 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069 IN STOCK	$3.30	2	IN
22	07V103498	threaded plug IN STOCK	07V103498 threaded plug IN STOCK	$60.06	4	IN
23	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	WHT002911 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	$2.72	4	TO
28	07V103546A	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977	07V103546A intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977 07V 103 204 B, N 022 202 1,	$1,727.67	1	TO
28	07V 103 546 B	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>>	07V 103 546 B intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>> 07V 103 204 B, N 022 202 1,	$2,261.69	1	TO
29	07Z103051	shaft oil seal IN STOCK	07Z103051 shaft oil seal IN STOCK	$53.58	1	IN
30	07V109420	threaded plug	07V109420 threaded plug	$24.04	2	TO
31	07V103677	o-ring	07V103677 o-ring 15X8X3,5,	$14.92	2	TO
32	N91097001	Hexagon socket flat head bolt IN STOCK	N91097001 Hexagon socket flat head bolt M6X30, IN STOCK	$0.59	2	IN
33	N10124306	Hexagon socket flat head bolt IN STOCK	N10124306 Hexagon socket flat head bolt IN STOCK	$1.18	5	IN
34	3Y0301257A	closing plate	3Y0301257A closing plate	$32.96	1	TO
35	N10668402	screw, hex. hd.	N10668402 screw, hex. hd. M8X16,	$2.22	2	TO
36	N90737105	Hexagon socket oval head bolt, self-locking IN STOCK	N90737105 Hexagon socket oval head bolt, self-locking M6X12, IN STOCK	$1.18	4	IN
38	WHT002857	Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002857 Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 0.3125"X1.500",	$18.83	2	TO
38	N 104 154 02	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N 104 154 02 bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X40,	$3.54	2	TO
39	N90941703	socket head bolt with inner multipoint head D - 11.12.2006>> IN STOCK	N90941703 socket head bolt with inner multipoint head D - 11.12.2006>> M10X45, IN STOCK	$2.84	2	IN
40	WHT002868	oil drain plug	WHT002868 oil drain plug 0.500",	$89.51	1	TO
41	WHT002906	washer	WHT002906 washer 0.500",	$8.11	1	TO
42	N01153119	washer	N01153119 washer M12,	$0.48	12	TO
44	WHT002885	dowel pin	WHT002885 dowel pin	$7.13	2	TO
45	07V109293	shaft oil seal IN STOCK	07V109293 shaft oil seal rear, IN STOCK	$131.03	1	IN
46	07V103954	insulation plate (self-adhesive)	07V103954 insulation plate (self-adhesive)	$171.05	1	TO
