Central Display, Navigation And Tv

Bentley Continental Supersports (2017+)

Find Your Part

Bentley Continental Supersports (2017+) - Central Display, Navigation and TV

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
N90698601 Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508 $0.48 IN STOCK
Photo Part No Description Price (each) Stock
3W0919129E v receiver (tuner), D - 13.05.2013>> $2,583.66 To Order
3W0919129C v receiver (tuner) $3,533.88 To Order
3W0919129G v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450 $3,533.88 To Order
Photo Part No Description Price (each) Stock
3W0035547 Bracket for multimedia, interface box 'MDI' $9.24 To Order
3W0035547A Bracket for multimedia, interface box 'MDI' $9.24 To Order
Photo Part No Description Price (each) Stock
CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 Enquire To Order
CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 Enquire To Order
CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 Enquire To Order
Photo Part No Description Price (each) Stock
N10684701 Oval hexagon socket head bolt $0.98 IN STOCK
Photo Part No Description Price (each) Stock
3W0035755 bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 $50.24 To Order
Photo Part No Description Price (each) Stock
3D0035769F Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 $816.70 To Order
Photo Part No Description Price (each) Stock
CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 Enquire To Order
Photo Part No Description Price (each) Stock
5N0035309A retaining frame $188.46 To Order
Photo Part No Description Price (each) Stock
5N0035342G Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>> $565.41 To Order
Photo Part No Description Price (each) Stock
5N0035554J Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012 $110.11 To Order
5N0035554K Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>> $109.92 To Order
Photo Part No Description Price (each) Stock
3W0919859CR dvd-rom for navigation, system, D - 05.09.2016>> $1,099.42 To Order
3W0919859DB dvd-rom for navigation, system, D - 30.01.2017>> $832.41 To Order
3W0919859CG dvd-rom for navigation, system, D - 08.11.2015>> $801.00 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4W0868547 plastic foam bloc, D - 07.12.2015>> $54.17 To Order
Photo Part No Description Price (each) Stock
3W0998656 harness fortv, receiver (tuner) $206.13 To Order
Photo Part No Description Price (each) Stock
N90729003 fillister head bolt (combi.) $0.59 IN STOCK
Photo Part No Description Price (each) Stock
N10415903 Oval hexagon socket head bolt $0.48 To Order
View All

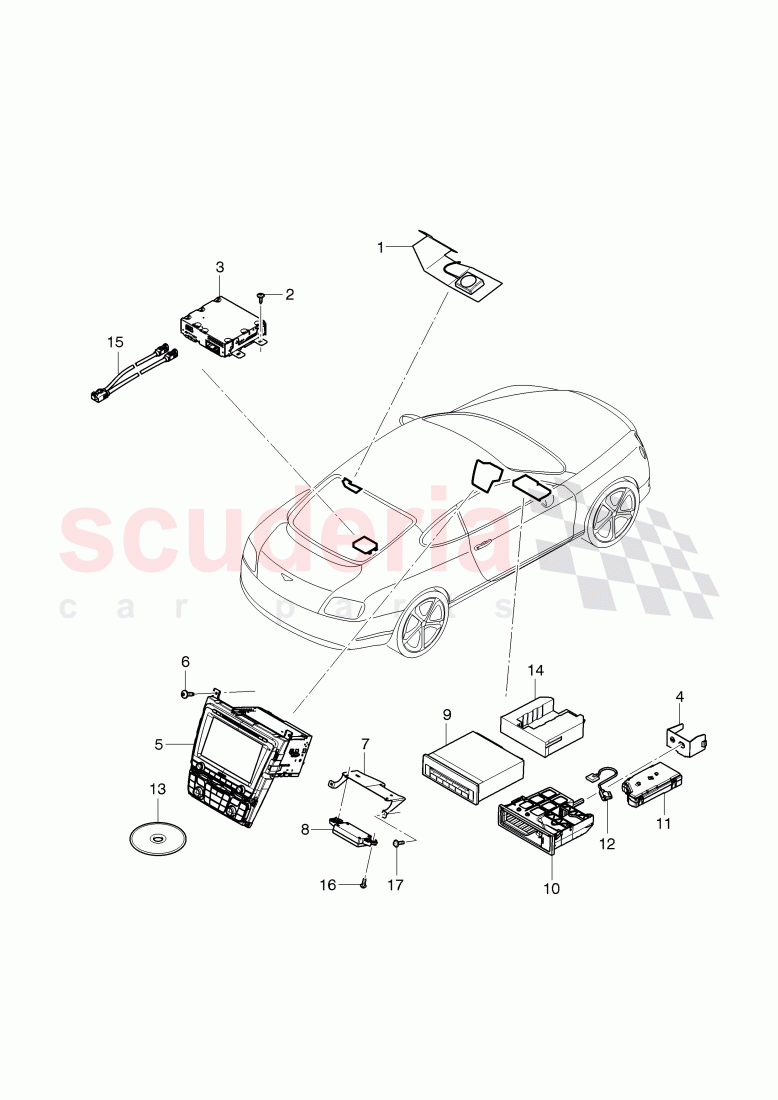

Central Display, Navigation and TV of Bentley Bentley Continental Supersports (2017+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 N90698601
Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508
4,2X16,
IN STOCK 		$0.48 3
3 3W0919129E
v receiver (tuner), D - 13.05.2013>>
all countries,, except:, China, PR-QV1 		$2,583.66 1
3 3W0919129C
v receiver (tuner)
China, PR-QU3 		$3,533.88 1
3 3W0919129G
v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450
digital, PR-QU7 		$3,533.88 1
4 3W0035547
Bracket for multimedia, interface box 'MDI'
lhd, PR-L0L+UF1 		$9.24 1
4 3W0035547A
Bracket for multimedia, interface box 'MDI'
rhd, PR-L0R+UF1 		$9.24 1
5 CCC
Mechatronic with software, D - MJ 2009>> - MJ 2009
all countries,, except:, north american, area, China, PR-7Q1,7Q9 		- 1 Enquire
5 CCC
Mechatronic with software, D - MJ 2009>> - MJ 2009
north american, area, PR-7Q2 		- 1 Enquire
5 CCC
Mechatronic with software, D - MJ 2009>> - MJ 2009
China, PR-7T4 		- 1 Enquire
6 N10684701
Oval hexagon socket head bolt
M5X20,
IN STOCK 		$0.98 6
7 3W0035755
bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015
PR-QF5+8YG,, 8YY 		$50.24 1
8 3D0035769F
Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015
PR-QF5+8YG,, 8YY 		$816.70 1
9 CCC
Mechatronic with software, D - MJ 2009>> - MJ 2009
6 point, PR-7A2,NZ0 		- 1 Enquire
10 5N0035309A
retaining frame 		$188.46 1
11 5N0035342G
Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>> 		$565.41 1
12 5N0035554J
Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012
north american, area, iPod Nano, iPod Touch, iPhone 1-4S, PR-UF1+7Q2 		$110.11 1
12 5N0035554K
Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>>
all countries,, except:, north american, area, iPod Nano, iPod Touch, PR-UF1+7Q1,, 7Q6,7Q9,7T4 		$109.92 1
13 3W0919859CR
dvd-rom for navigation, system, D - 05.09.2016>>
north american, area, PR-7RS 		$1,099.42 1
13 3W0919859DB
dvd-rom for navigation, system, D - 30.01.2017>>
western europe, PR-7RT 		$832.41 1
13 3W0919859CG
dvd-rom for navigation, system, D - 08.11.2015>>
Eastern Europe, PR-7RK 		$801.00 1
13 3W0919859CH
dvd-rom for navigation, system, D - 08.11.2015>>
AGCC states, PR-7RH 		$1,766.94 1
13 3W0919859CP
dvd-rom for navigation, system, D - 09.05.2016>>
Malaysia, Singapore, PR-7RY 		$1,570.60 1
13 3W0919859CJ
dvd-rom for navigation, system, D - 08.11.2015>>
australia, New Zealand, PR-7RJ,7RL 		$1,240.77 1
13 3W0919859CQ
dvd-rom for navigation, system, D - 09.05.2016>>
South Africa, PR-7RX 		$1,339.92 1
13 3W0919859CM
dvd-rom for navigation, system
South America, PR-7RW 		$1,825.83 1
13 3W0919859CN
dvd-rom for navigation, system
Chile, PR-77K 		$1,825.83 1
14 4W0868547
plastic foam bloc, D - 07.12.2015>>
PR-7A0 		$54.17 1
15 3W0998656
harness fortv, receiver (tuner)
COAX, 2.7M, 		$206.13 1
16 N90729003
fillister head bolt (combi.)
M5X16,
IN STOCK 		$0.59 2
17 N10415903
Oval hexagon socket head bolt
TP4X12, 		$0.48 2
