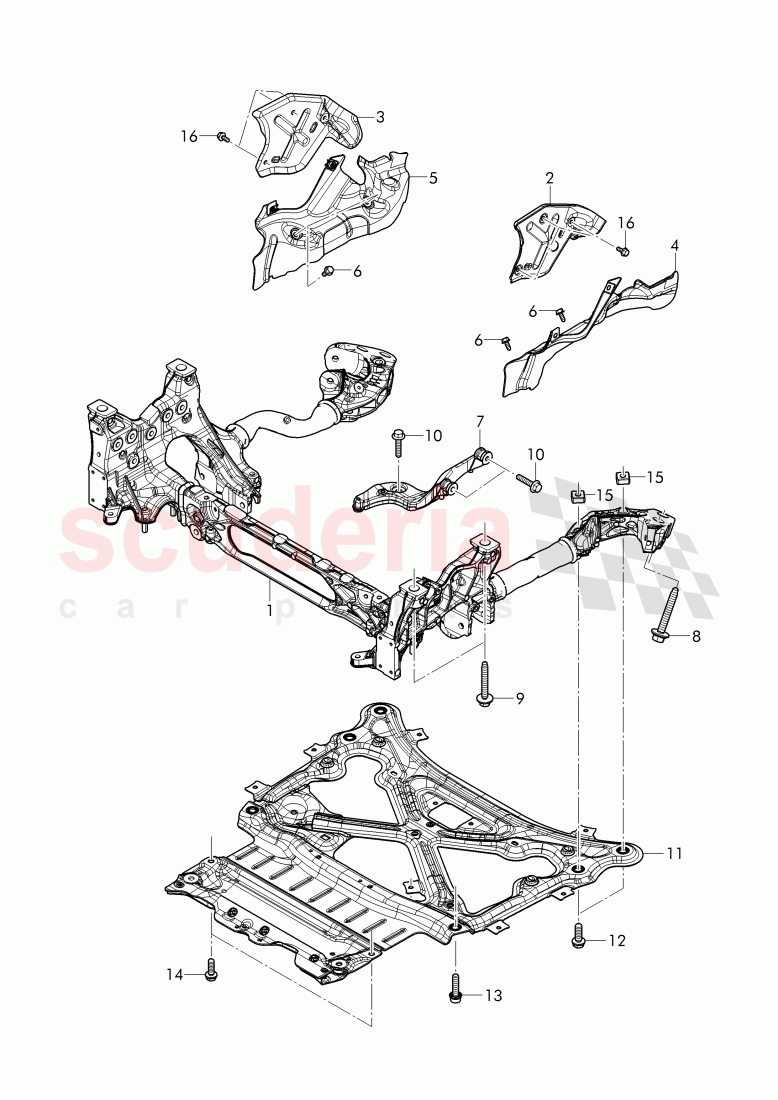

sub frame of Bentley Bentley Bentayga (2015-2020)

Bentley Bentayga (2015-2020) - sub frame

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0399315AA	sub frame	$2,080.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0 399 299 D	shield	$16.94	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 399 300 D	shield	$16.94	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 399 299 C	shield	$19.92	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 399 300 C	shield	$19.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0 399 377 D	retaining plate	$216.93	To Order
	4M0 399 378 D	retaining plate	$216.93	To Order

Photo	Part No	Description	Price (each)	Stock
	N 912 379 01	bolt, hex. hd. (combi.)	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 843 01	bolt, hex. hd. (combi.)	$6.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 285 02	Hex collared bolt alternatively, you can use:	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399345L	Strut brace for, assembly carrier	$617.43	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 511 01	hexagon head bolt (combi)	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 005 372	bolt, with polygon socket hd.	$4.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 106 730 01	Socket head bolt with inner multipoint head (Kombi)	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 002 305	nut, square	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 511 01	Oval hexagon socket head bolt	$0.98	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
-	N 107 591 01	Hex collared bolt	N 107 591 01 Hex collared bolt M6X12,	$1.18	6	TO
1	4M0399315AA	sub frame IN STOCK	4M0399315AA sub frame IN STOCK	$2,080.17	1	IN
2	4M0 399 299 D	shield	4M0 399 299 D shield left,	$16.94	1	TO
3	4M0 399 300 D	shield	4M0 399 300 D shield right,	$16.94	1	TO
4	4M0 399 299 C	shield	4M0 399 299 C shield left,	$19.92	1	TO
5	4M0 399 300 C	shield	4M0 399 300 C shield right,	$19.92	1	TO
6	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	$0.98	4	TO
7	4M0 399 377 D	retaining plate	4M0 399 377 D retaining plate left,	$216.93	1	TO
7	4M0 399 378 D	retaining plate	4M0 399 378 D retaining plate right,	$216.93	1	TO
8	N 912 379 01	bolt, hex. hd. (combi.)	N 912 379 01 bolt, hex. hd. (combi.) M14X1,5X100-, S22,	$5.79	4	TO
9	N 911 843 01	bolt, hex. hd. (combi.)	N 911 843 01 bolt, hex. hd. (combi.) M12X1,5X90,	$6.47	4	TO
10	N 107 285 02	Hex collared bolt alternatively, you can use:	N 107 285 02 Hex collared bolt alternatively, you can use: M10X42,	$3.24	6	TO
11	4M0399345L	Strut brace for, assembly carrier	4M0399345L Strut brace for, assembly carrier	$617.43	1	TO
12	N 911 511 01	hexagon head bolt (combi)	N 911 511 01 hexagon head bolt (combi) M12X1,5X42,	$3.93	4	TO
13	WHT 005 372	bolt, with polygon socket hd. IN STOCK	WHT 005 372 bolt, with polygon socket hd. M12X1,50X51, IN STOCK	$4.42	2	IN
14	N 106 730 01	Socket head bolt with inner multipoint head (Kombi)	N 106 730 01 Socket head bolt with inner multipoint head (Kombi) M8X40,	$2.06	2	TO
15	WHT 002 305	nut, square	WHT 002 305 nut, square M12X1,5,	$2.16	4	TO
16	N 107 511 01	Oval hexagon socket head bolt	N 107 511 01 Oval hexagon socket head bolt M6X20, N 107 591 01,	$0.98	6	TO
