1 Set Of Fuel Lines, Fuel Supply Line

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - 1 set of fuel lines, Fuel supply line

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0201544AE 1 set of fuel lines, for vehicles with, coolant auxiliary heater, F >> 4V-J-017 571, F >> ZV-J-017 571 $559.02 To Order
4M0201544CD 1 set of fuel lines, for vehicles with, coolant auxiliary heater, F 4V-J-017 572>>, F ZV-J-017 572>> $542.34 To Order
4M0201544AD 1 set of fuel lines, F >> 4V-J-017 571, F >> ZV-J-017 571 $542.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4D0201449D clamp $2.78 To Order
Photo Part No Description Price (each) Stock
4D0201245G protective cover $9.71 To Order
Photo Part No Description Price (each) Stock
4M0201190C securing clip $2.28 To Order
Photo Part No Description Price (each) Stock
4M0201196F seal strip $5.16 To Order
Photo Part No Description Price (each) Stock
4D0201834C cap, F >> 4V-J-020 299, F >> ZV-J-020 299 $1.65 To Order
WHT008695 shouldered bolt, as required use:, F 4V-J-020 300>>, F ZV-J-020 300>> $1.47 To Order
Photo Part No Description Price (each) Stock
4M0201192R cover $31.86 To Order
4M0201192K cover, F 4V-J-017 572>>, F ZV-J-017 572>> $31.86 To Order
Photo Part No Description Price (each) Stock
N10737001 hexagon nut, self-locking $1.47 To Order
Photo Part No Description Price (each) Stock
36A201359A 1 set fuel hoses $225.26 To Order
Photo Part No Description Price (each) Stock
7L6422379 Spring band clamp $3.12 To Order
Photo Part No Description Price (each) Stock
N90926401 Spring band clamp $2.92 IN STOCK
Photo Part No Description Price (each) Stock
36A201196 protective tube $28.55 To Order
View All

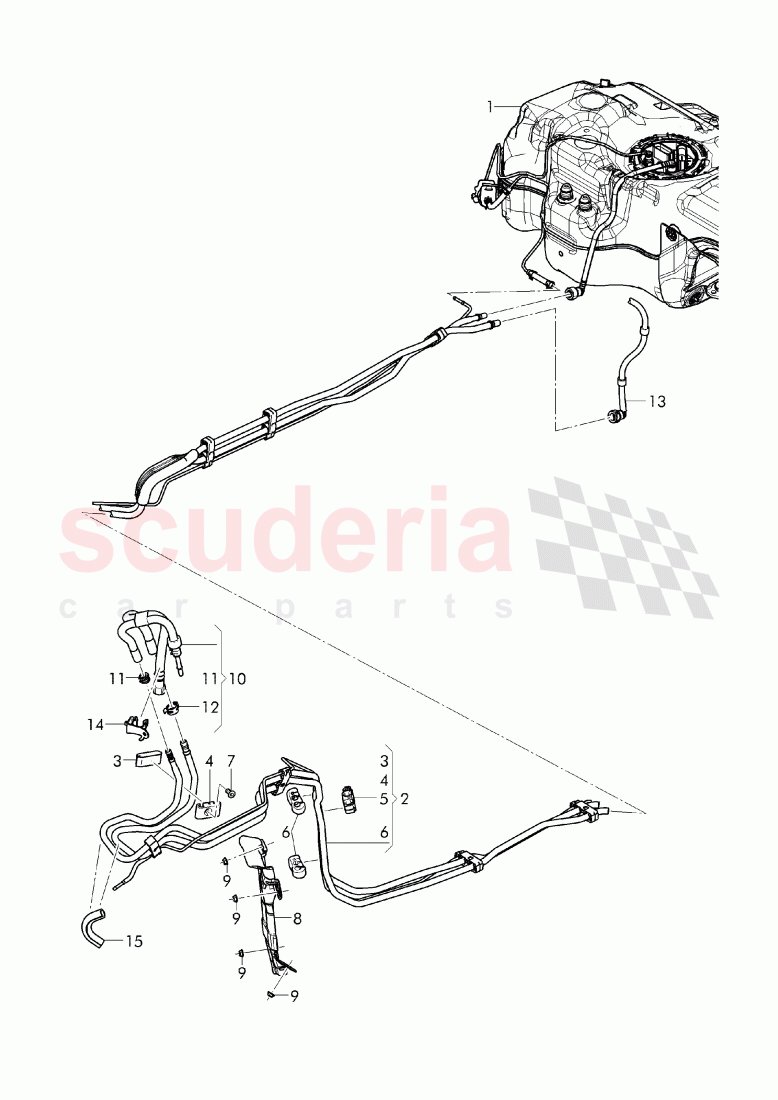

1 set of fuel lines, Fuel supply line of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- WHT005625
rivetted cap nut, F 4V-J-020 300>>, F ZV-J-020 300>>
M6X15, 		$3.04 1
2 4M0201544AE
1 set of fuel lines, for vehicles with, coolant auxiliary heater, F >> 4V-J-017 571, F >> ZV-J-017 571
PR-9M9 		$559.02 1
2 4M0201544CD
1 set of fuel lines, for vehicles with, coolant auxiliary heater, F 4V-J-017 572>>, F ZV-J-017 572>>
PR-9M9 		$542.34 1
2 4M0201544AD
1 set of fuel lines, F >> 4V-J-017 571, F >> ZV-J-017 571
PR-9M0 		$542.34 1
2 4M0201544CC
1 set of fuel lines, F 4V-J-017 572>>, F ZV-J-017 572>>
PR-9M0 		$542.34 1
3 4D0201449D
clamp 		$2.78 1
4 4D0201245G
protective cover
3 grooves, 		$9.71 1
5 4M0201190C
securing clip
3 holes, 		$2.28 8
6 4M0201196F
seal strip
3 grooves, 		$5.16 2
7 4D0201834C
cap, F >> 4V-J-020 299, F >> ZV-J-020 299 		$1.65 1
7 WHT008695
shouldered bolt, as required use:, F 4V-J-020 300>>, F ZV-J-020 300>>
M6X12,5, WHT 005 625, 		$1.47 1
8 4M0201192R
cover 		$31.86 1
8 4M0201192K
cover, F 4V-J-017 572>>, F ZV-J-017 572>> 		$31.86 1
9 N10737001
hexagon nut, self-locking
M6, 		$1.47 4
10 36A201359A
1 set fuel hoses 		$225.26 1
11 7L6422379
Spring band clamp
16X12, 		$3.12 1
12 N90926401
Spring band clamp
19X12,
IN STOCK 		$2.92 1
15 36A201196
protective tube 		$28.55 2
