Exhaust Manifolds, Heatshields and Electronic Engine Control of Aston Martin Aston Martin Virage

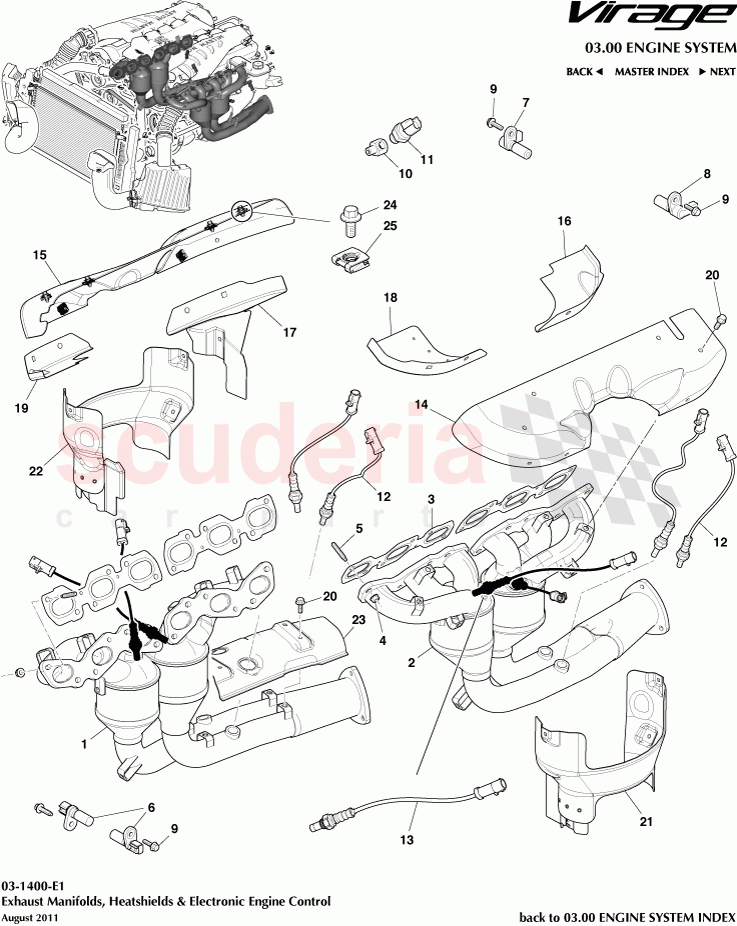

Aston Martin Virage - Exhaust Manifolds, Heatshields and Electronic Engine Control

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G43-5G236-BB	MANIFOLD EXHAUST RH	$5,075.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8G43-5G232-BB	Manifold Exhaust LH	$5,075.30	To Order
	699736	Clip, Exhaust Heatshields	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-35-10003	Gasket Exhaust Manifold	$60.58	To Order

Photo	Part No	Description	Price (each)	Stock
	697775-PK	Nut M8 Hex Flange Head (Pack of 10)	$40.05	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	$10.27	To Order

Photo	Part No	Description	Price (each)	Stock
	39-85756	SENSOR-CRANK TIMING	$19.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07-85755	Sensor, Crankshaft Timing	$268.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-39-10014	Sensor, Crankshaft, Rear	$660.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ED23-06-10174	ADAPTOR-O/PRESS SWTC	$130.20	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-39-10532	Switch, Oil Pressure	$8.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12-39-10175	Sensor HEGO RH Rear Post Catalytic Converter	$260.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12-07-10720	SENSOR RING-IGNITION	$47.90	To Order
	1R12-39-10174	Heated Exhaust Gas Oxygen Sensor Rear	$263.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-9A462-AC	Heat Shield, Exhaust Manifold, LH	$124.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-9A462-BC	Heat Shield, Exhaust Manifold, RH	$124.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-9A462-CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$108.70	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43-9A462-AD	Heat Shield, Exhaust Manifold, RH Rear	$124.21	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-9A462-BB	Heat Shield, Exhaust Manifold, LH Front	$108.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-9A462-CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$108.70	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG439N454AA	HeatShield, Exhaust Manifold RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454BA	HeatShield, Exhaust Manifold LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-C5K286-AA	SHIELD - EXHAUST PIPE HEAT RH	$130.44	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	8G43-5G236-BB	MANIFOLD EXHAUST RH IN STOCK	8G43-5G236-BB MANIFOLD EXHAUST RH IN STOCK	$5,075.30	1	IN
	2	8G43-5G232-BB	Manifold Exhaust LH	8G43-5G232-BB Manifold Exhaust LH	$5,075.30	1	TO
	2	699736	Clip, Exhaust Heatshields IN STOCK	699736 Clip, Exhaust Heatshields IN STOCK	$2.89	4	IN
	3	4G43-35-10003	Gasket Exhaust Manifold	4G43-35-10003 Gasket Exhaust Manifold	$60.58	4	TO
	4	697775-PK	Nut M8 Hex Flange Head (Pack of 10)	697775-PK Nut M8 Hex Flange Head (Pack of 10)	$40.05	24	TO
	5	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	$10.27	24	TO
	6	39-85756	SENSOR-CRANK TIMING IN STOCK	39-85756 SENSOR-CRANK TIMING IN STOCK	$19.67	1	IN
	7	07-85755	Sensor, Crankshaft Timing IN STOCK	07-85755 Sensor, Crankshaft Timing IN STOCK	$268.09	1	IN
	8	4G43-39-10014	Sensor, Crankshaft, Rear IN STOCK	4G43-39-10014 Sensor, Crankshaft, Rear IN STOCK	$660.63	1	IN
	9	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	$1.27	4	IN
	10	ED23-06-10174	ADAPTOR-O/PRESS SWTC	ED23-06-10174 ADAPTOR-O/PRESS SWTC	$130.20	1	TO
	11	1R12-39-10532	Switch, Oil Pressure IN STOCK	1R12-39-10532 Switch, Oil Pressure IN STOCK	$8.48	1	IN
	12	1R12-39-10175	Sensor HEGO RH Rear Post Catalytic Converter IN STOCK	1R12-39-10175 Sensor HEGO RH Rear Post Catalytic Converter IN STOCK	$260.49	4	IN
	13	1R12-07-10720	SENSOR RING-IGNITION	1R12-07-10720 SENSOR RING-IGNITION	$47.90	1	TO
	13	1R12-39-10174	Heated Exhaust Gas Oxygen Sensor Rear IN STOCK	1R12-39-10174 Heated Exhaust Gas Oxygen Sensor Rear IN STOCK	$263.68	4	IN
	14	4G43-9A462-AC	Heat Shield, Exhaust Manifold, LH	4G43-9A462-AC Heat Shield, Exhaust Manifold, LH	$124.21	1	TO
	15	4G43-9A462-BC	Heat Shield, Exhaust Manifold, RH	4G43-9A462-BC Heat Shield, Exhaust Manifold, RH	$124.21	1	TO
	4G43-9A462-CC		EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	from $108.70
16 EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR $108.70 1 TO 19 EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR $108.70 1 TO
	17	8G43-9A462-AD	Heat Shield, Exhaust Manifold, RH Rear	8G43-9A462-AD Heat Shield, Exhaust Manifold, RH Rear	$124.21	1	TO
	18	8D33-9A462-BB	Heat Shield, Exhaust Manifold, LH Front	8D33-9A462-BB Heat Shield, Exhaust Manifold, LH Front	$108.70	1	TO
	20	HY53-E804349-AA	M6 X 14 SCREW HEX HD IN STOCK	HY53-E804349-AA M6 X 14 SCREW HEX HD IN STOCK	$0.71	20	IN
	21	BG439N454AA	HeatShield, Exhaust Manifold RH	BG439N454AA HeatShield, Exhaust Manifold RH	-	1	PE	Enquire
	22	BG439N454BA	HeatShield, Exhaust Manifold LH	BG439N454BA HeatShield, Exhaust Manifold LH	-	1	PE	Enquire
	23	AD23-C5K286-AA	SHIELD - EXHAUST PIPE HEAT RH	AD23-C5K286-AA SHIELD - EXHAUST PIPE HEAT RH	$130.44	1	TO
