Name: Transaxle Cooling Pipes (Auto)
Rating: 5.0 (1 reviews)

Diagram
INFO

Transaxle Cooling Pipes (Auto) of Aston Martin Aston Martin Virage

Aston Martin Virage - Transaxle Cooling Pipes (Auto)

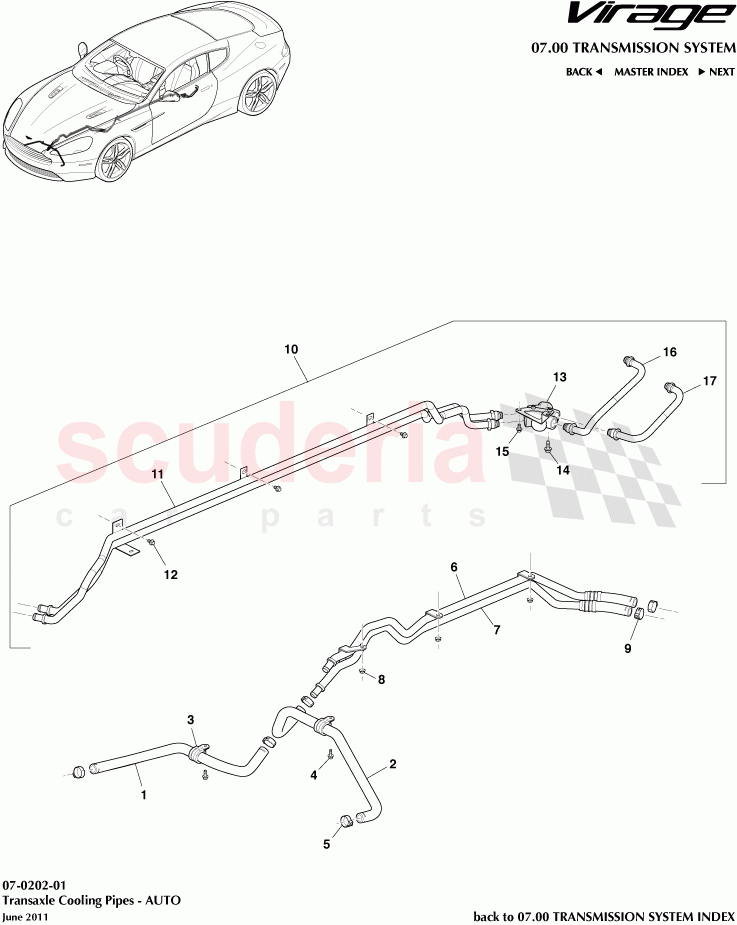

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D33-7F120-BB	Hose, Transmission Oil Cooler Inlet	$235.20	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33-7F120-AB	Hose, Transmission Oil Cooler Outlet	$291.00	To Order

Photo	Part No	Description	Price (each)	Stock
	020-002-0135-PK	Screw, M6 x 16, Flange Hex Head	$291.20	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43-8777-CA	CLAMP HOSE OETIKER 025.5-1008R	$6.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G43-7W093-AA	PIPE ASSEMBLY ENGINE BAY INLET	$146.94	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43-7W093-BA	PIPE ASSEMBLY ENGINE BAY OUTLET	$220.90	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G43-8777-CA	CLAMP HOSE OETIKER 025.5-1008R	$6.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G43-321363-AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	$952.29	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437D353AA	Tube & Bracket Assembly, Transmission Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-6L635-AA	Thermostat, Transmission Oil Control	$1,072.25	To Order

Photo	Part No	Description	Price (each)	Stock
	702298	BOLT M8x16 HEX FLG	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4335568BA	Pipe, Transmission Oil Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4335568AA	Pipe, Transmission Oil Outlet	Enquire	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	9D33-7F120-BB	Hose, Transmission Oil Cooler Inlet	9D33-7F120-BB Hose, Transmission Oil Cooler Inlet incl. P clips	$235.20	1	TO
	2	9D33-7F120-AB	Hose, Transmission Oil Cooler Outlet	9D33-7F120-AB Hose, Transmission Oil Cooler Outlet incl. P clips	$291.00	1	TO
	4	020-002-0135-PK	Screw, M6 x 16, Flange Hex Head	020-002-0135-PK Screw, M6 x 16, Flange Hex Head	$291.20	2	TO
	9G43-8777-CA		CLAMP HOSE OETIKER 025.5-1008R	from $6.48
5 CLAMP HOSE OETIKER 025.5-1008R IN STOCK $6.48 4 IN 9 CLAMP HOSE OETIKER 025.5-1008R IN STOCK $6.48 2 IN
	6	9G43-7W093-AA	PIPE ASSEMBLY ENGINE BAY INLET	9G43-7W093-AA PIPE ASSEMBLY ENGINE BAY INLET	$146.94	1	TO
	7	9G43-7W093-BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G43-7W093-BA PIPE ASSEMBLY ENGINE BAY OUTLET	$220.90	1	TO
	8	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	$1.00	3	IN
	10	9G43-321363-AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43-321363-AA OIL PIPE ASSEMBLY REAR TRANSMISSION	$952.29	1	TO
	11	9G437D353AA	Tube & Bracket Assembly, Transmission Oil	9G437D353AA Tube & Bracket Assembly, Transmission Oil	-	1	PE	Enquire
	700606		SCREW, M6 X 12, HEX FLANGE HEAD	from $0.20
12 Screw, M6 x 12, Hex Flange Head IN STOCK $0.20 3 IN 15 Screw, M6 x 12, Hex Flange Head IN STOCK $0.20 1 IN
	13	4G43-6L635-AA	Thermostat, Transmission Oil Control	4G43-6L635-AA Thermostat, Transmission Oil Control	$1,072.25	1	TO
	14	702298	BOLT M8x16 HEX FLG	702298 BOLT M8x16 HEX FLG	$0.17	1	TO
	16	4G4335568BA	Pipe, Transmission Oil Inlet	4G4335568BA Pipe, Transmission Oil Inlet	-	1	PE	Enquire
	17	4G4335568AA	Pipe, Transmission Oil Outlet	4G4335568AA Pipe, Transmission Oil Outlet	-	1	PE	Enquire
