Manual Transaxle

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Manual Transaxle

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91774 MAN TRANSMISSION ASY $14,639.80 To Order
6G33-7N372-AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT $10,779.41 To Order
6G33-7002-AL MAN TRANSMISSION ASY $35,251.66 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G33-7A245-AA PIPE ASSY- TRANS BREATHER $65.12 To Order
4G43-27-10488 Adaptor, Breather $93.85 To Order
Photo Part No Description Price (each) Stock
702284 Clip, Edge, Trans Breather Pipe $1.98 To Order
Photo Part No Description Price (each) Stock
4G43-19G506-BA Grease, Input Shaft Spline $26.59 To Order
6G337H436AA Pinion and bevel gear set $9,583.10 To Order
6G33-75106-AA/S OIL-MAN TRANS 1 ltr Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G33-7F113-AB TRANSMISSION COOLER PIPE - TRANS INLET $42.44 To Order
6G33-7F113-CA TRANSMISSION COOLER PIPE - TRANS INLET $195.22 To Order
Photo Part No Description Price (each) Stock
6G33-7F112-CA Pipe, Transmission Oil Cooler, Outlet $213.00 To Order
6G33-7F112-CA Pipe, Transmission Oil Cooler, Outlet $213.00 To Order
700607 Screw Hex Flange Head M6 x 16mm $0.20 To Order
Photo Part No Description Price (each) Stock
4G43-27-10491-PK O RING 2.62 x 20.63 (PACK OF 10) $41.89 To Order
4G43-27-10482 O Ring, 2.62 x 75.87 $12.07 IN STOCK
4G43-27-10244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) $51.29 To Order
...and 16 more part variants. See table on right for more details.

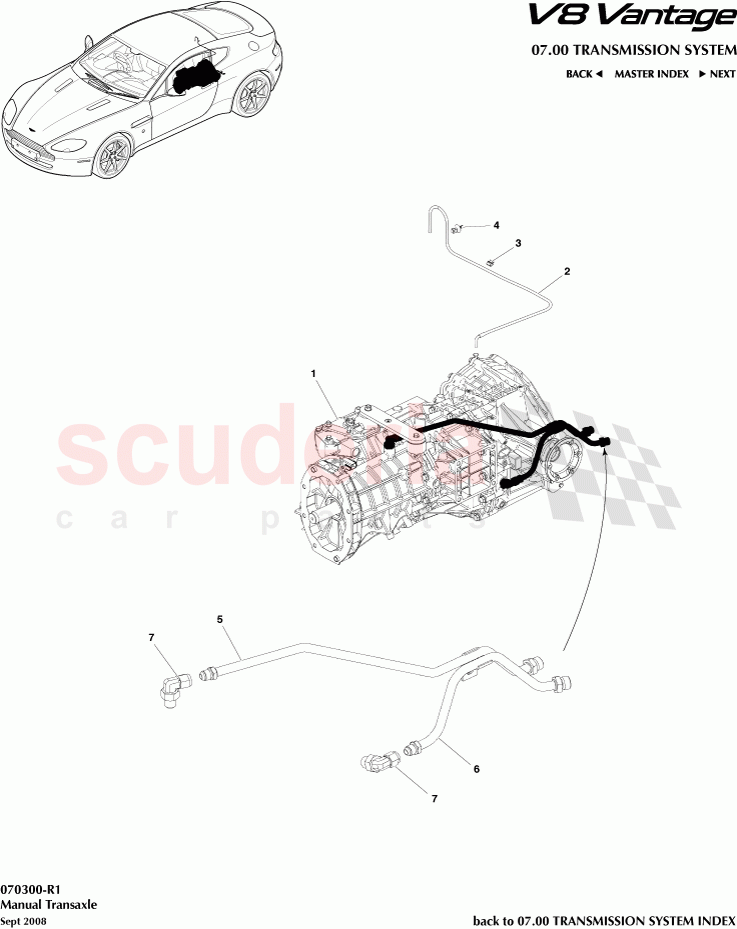

Manual Transaxle of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91774
MAN TRANSMISSION ASY 		$14,639.80 1
TO
1 6G33-7N372-AB
BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT 		$10,779.41 1
TO
1 6G33-7002-AL
MAN TRANSMISSION ASY 		$35,251.66 1
TO
1 6G33XSC2159AA
Bolt, flg, M6 x 50 bell crank attach 		- 3
PE
 Enquire
1 6G33106205AA
Bolt, flg, M6 x 30 bell crank attach 		- 3
PE
 Enquire
2 6G33-7A245-AA
PIPE ASSY- TRANS BREATHER 		$65.12 1
TO
2 4G43-27-10488
Adaptor, Breather 		$93.85 1
TO
3 702284
Clip, Edge, Trans Breather Pipe 		$1.98 1
TO
4 4G43-19G506-BA
Grease, Input Shaft Spline 		$26.59 1
TO
4 6G337H436AA
Pinion and bevel gear set 		$9,583.10 1
TO
4 6G33-75106-AA/S
OIL-MAN TRANS 1 ltr 		- 1
PE
 Enquire
4 701575
Clip, Trans Breather Pipe 		$0.71 1
TO
5 6G33-7F113-AB
TRANSMISSION COOLER PIPE - TRANS INLET
Pre 07MY up to(V)C03882 		$42.44 1
TO
5 6G33-7F113-CA
TRANSMISSION COOLER PIPE - TRANS INLET
07MY from(V) C03883 		$195.22 1
TO

6G33-7F112-CA

PIPE, TRANSMISSION OIL COOLER, OUTLET

from $213.00

6 700607
Screw Hex Flange Head M6 x 16mm 		$0.20 2
TO
7 4G43-27-10491-PK
O RING 2.62 x 20.63 (PACK OF 10) 		$41.89 1
TO
7 4G43-27-10482
O Ring, 2.62 x 75.87
IN STOCK 		$12.07 1
IN
7 4G43-27-10244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) 		$51.29 1
TO
7 4G43-27-10601
OUTPUT SHAFT - RIGHT SIDE DIF 		$872.64 1
TO
7 4G43-27-10600
OUTPUT SHAFT - LEFT SIDE DIF 		$1,195.06 1
TO
7 4G43-27-10490
Filter, Oil 		$200.24 1
TO
7 4G43-27-10604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$73.76 1
IN
7 4G43-27-10483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$74.51 1
IN
7 4G43-27-10493
PLUG - OIL LEVEL M22 		$14.00 1
TO
7 6G33-8F875-AA
REVERSE SWITCH AND WASHER KIT 		$263.53 1
TO
7 4G43-27-10500
O Ring, 3.53 x 228.19 		$81.46 1
TO
7 6G33-7C081-AA
INPUT SHAFT SEAL 		$43.12 1
TO
7 4G437J175BB
Reverse switch 		- 1
PE
 Enquire
7 702815
BOLT M8 x 30 		$5.07 12
TO
7 4G43-27-10492
Screw, M5 x 12 		$3.11 2
TO
7 6G33-7E319-AA
OIL COOLER PIPE ADAPTOR 		$1,679.49 2
TO
7 4G43-27-10245-PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10) 		$41.16 2
TO
7 6G33-36298-AA
RING DOWEL 		$9.02 2
TO
7 6G33-E606403-AA
FLANGE BOLT - M6X16 		$0.89 4
TO
