Name: Rear Bumper
Rating: 4.9 (1 reviews)

Diagram
INFO

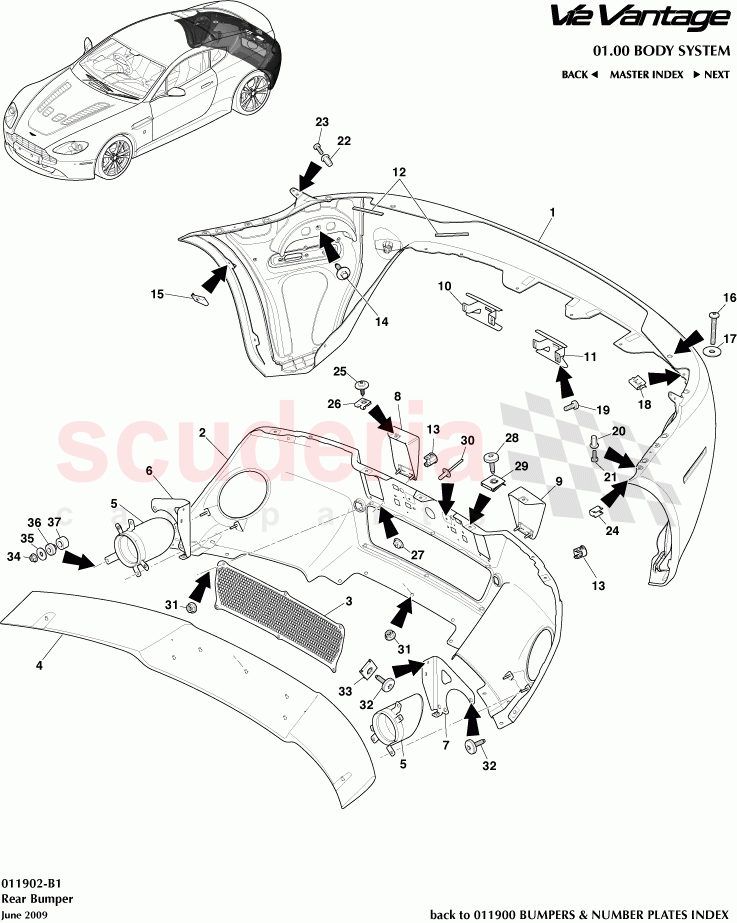

Rear Bumper of Aston Martin Aston Martin V12 Vantage (upto 2016)

Aston Martin V12 Vantage (upto 2016) - Rear Bumper

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD23-17K835-AC	CVR ASY RR BUMP ROW	$2,191.58	To Order

Photo	Part No	Description	Price (each)	Stock
	DD23-17E955-BA	DIFFUSER REAR ROW	$6,504.90	To Order
	DD23-17E955-AA	DIFFUSER REAR GCC	$7,577.42	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-501T0-AA	REAR MESH LOWER	$253.67	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-33612-AD	DIFFUSER REAR BLADE	$729.23	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-5K238-BC	TAIL PIPE RH	$436.44	To Order
	AD23-5K239-BC	TAIL PIPE LH	$436.44	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-5N201-KD	Bracket, Exhaust Trim Mounting, RH	$99.00	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-5N202-KD	Bracket, Exhaust Trim Mounting, LH	$99.00	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-17C772-AB	MLDG RR BMPR RH	$229.80	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23-17C773-AB	MLDG RR BMPR LH	$229.80	To Order

Photo	Part No	Description	Price (each)	Stock
	FG33-17B681-AA	RR BMPR BRKT CTR	$379.89	To Order

Photo	Part No	Description	Price (each)	Stock
	FG33-17B681-AA	RR BMPR BRKT CTR	$379.89	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-17B685-AA	BMPR SUPT PLT SD OTR	$21.66	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-83000-BB	Nut - Speed M5	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$9.74	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	AD23-17K835-AC	CVR ASY RR BUMP ROW	AD23-17K835-AC CVR ASY RR BUMP ROW	$2,191.58	1	TO
	2	DD23-17E955-BA	DIFFUSER REAR ROW	DD23-17E955-BA DIFFUSER REAR ROW	$6,504.90	1	TO
	2	DD23-17E955-AA	DIFFUSER REAR GCC	DD23-17E955-AA DIFFUSER REAR GCC	$7,577.42	1	TO
	3	AD23-501T0-AA	REAR MESH LOWER	AD23-501T0-AA REAR MESH LOWER	$253.67	1	TO
	4	AD23-33612-AD	DIFFUSER REAR BLADE	AD23-33612-AD DIFFUSER REAR BLADE	$729.23	1	TO
	5	AD23-5K238-BC	TAIL PIPE RH	AD23-5K238-BC TAIL PIPE RH	$436.44	2	TO
	5	AD23-5K239-BC	TAIL PIPE LH	AD23-5K239-BC TAIL PIPE LH	$436.44	2	TO
	6	6G33-5N201-KD	Bracket, Exhaust Trim Mounting, RH	6G33-5N201-KD Bracket, Exhaust Trim Mounting, RH	$99.00	1	TO
	7	6G33-5N202-KD	Bracket, Exhaust Trim Mounting, LH	6G33-5N202-KD Bracket, Exhaust Trim Mounting, LH	$99.00	1	TO
	8	AD23-17C772-AB	MLDG RR BMPR RH	AD23-17C772-AB MLDG RR BMPR RH	$229.80	1	TO
	9	AD23-17C773-AB	MLDG RR BMPR LH	AD23-17C773-AB MLDG RR BMPR LH	$229.80	1	TO
	FG33-17B681-AA		RR BMPR BRKT CTR	from $379.89
10 RR BMPR BRKT CTR $379.89 1 TO 11 RR BMPR BRKT CTR $379.89 1 TO
	12	6G33-17B685-AA	BMPR SUPT PLT SD OTR	6G33-17B685-AA BMPR SUPT PLT SD OTR	$21.66	2	TO
	26	701448	Spring Nut, U Type, 4.2 x 2.1 IN STOCK	701448 Spring Nut, U Type, 4.2 x 2.1 per cover, rear over IN STOCK	$1.18	2	IN
	27	4G43-83000-BB	Nut - Speed M5	4G43-83000-BB Nut - Speed M5	$0.44	4	TO
	28	6G33-FA0115-AB-PK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33-FA0115-AB-PK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$20.53	5	TO
	29	7G43-10609E-AA-PK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G43-10609E-AA-PK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	$9.74	5	IN
