Driveshaft Assembly

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Driveshaft Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD23-4500-AC Torque Tube & Propshaft Assy $6,579.53 To Order
Photo Part No Description Price (each) Stock
AD23-4602-AB Propeller shaft, Manual $7,082.15 To Order
Photo Part No Description Price (each) Stock
703191 BOLT-M10x1.5x65 FLG CHROME FREE $0.95 IN STOCK
Photo Part No Description Price (each) Stock
703195 SCREW M8x40 FLG 8 CHROME FREE $0.57 IN STOCK
Photo Part No Description Price (each) Stock
703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE $0.84 IN STOCK
Photo Part No Description Price (each) Stock
704572 CIRCLIP 4G43-4500-AA_PIA3 $4.05 To Order
Photo Part No Description Price (each) Stock
HY53-8527-BA O-RING (PROP RR INR) $8.17 To Order
Photo Part No Description Price (each) Stock
HY53-8527-AA O-RING (PROP FR) $7.97 To Order

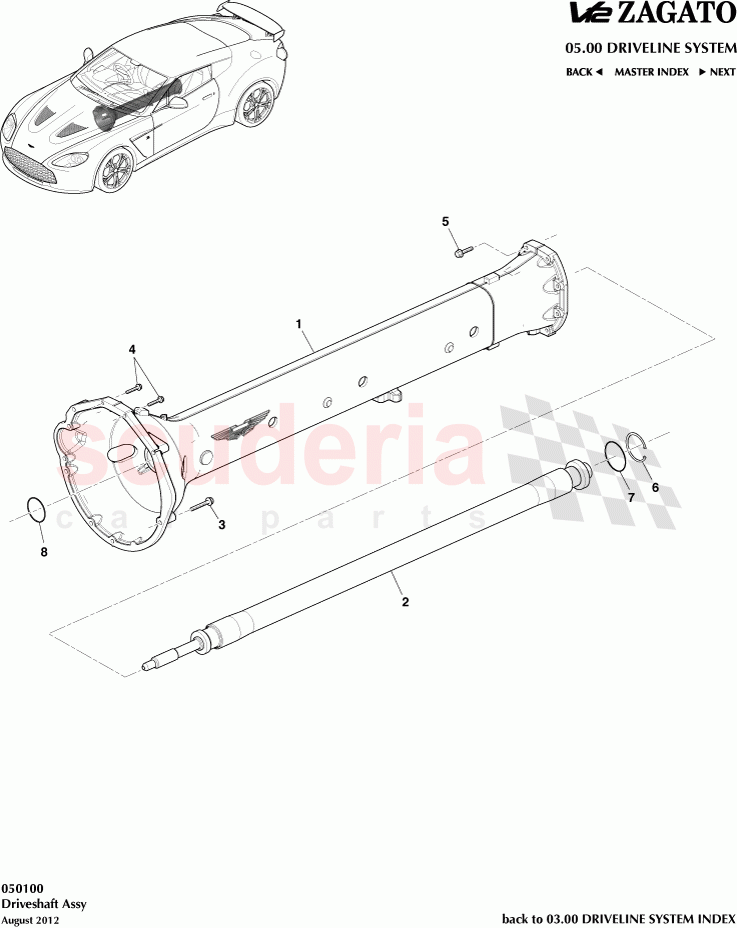

Driveshaft Assembly of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD23-4500-AC
Torque Tube & Propshaft Assy
Includes Items 2, 6, 7 and 8 		$6,579.53 1
TO
2 AD23-4602-AB
Propeller shaft, Manual 		$7,082.15 1
TO
3 703191
BOLT-M10x1.5x65 FLG CHROME FREE
IN STOCK 		$0.95 7
IN
4 703195
SCREW M8x40 FLG 8 CHROME FREE
IN STOCK 		$0.57 2
IN
5 703192
SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE
IN STOCK 		$0.84 8
IN
6 704572
CIRCLIP 4G43-4500-AA_PIA3 		$4.05 1
TO
7 HY53-8527-BA
O-RING (PROP RR INR) 		$8.17 1
TO
8 HY53-8527-AA
O-RING (PROP FR) 		$7.97 1
TO
