Body Rear Environment Trim Assembly

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Body Rear Environment Trim Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G33-674A09-ABW Finisher, Cabin Rear Upper Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G43-MXC1800-AA-PK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) $8.41 IN STOCK
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 $1.18 IN STOCK
Photo Part No Description Price (each) Stock
CY83-60028-AAW Trim Panel Assy, Bulkhead Centre Rear, Plain $5,935.16 To Order
Photo Part No Description Price (each) Stock
CY83-31470-AAW Retention Strap Assy, Bulkhead Rear Enquire To Order
Photo Part No Description Price (each) Stock
CY83-431C34-AA Buckle Badge $470.52 To Order
Photo Part No Description Price (each) Stock
702522 M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT $0.59 To Order
Photo Part No Description Price (each) Stock
AD23-11587-AAW Door Assy, Stowage Compartment $1,101.56 To Order
Photo Part No Description Price (each) Stock
6G33-674A08-AB Finisher, Rear Cabin $115.09 To Order
Photo Part No Description Price (each) Stock
701157-PK Screw & Washer 4.2 x 16 (Pack of 10) $2.65 IN STOCK
Photo Part No Description Price (each) Stock
6G33-314A96-AC BRACKET ASSY QTR REAR PANEL $36.79 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.00 IN STOCK
Photo Part No Description Price (each) Stock
AD23-674A06-AAW Panel Assy, Rear Heel Board, RH Enquire To Order
Photo Part No Description Price (each) Stock
AD23-275A08-BAW Cover Assy, Rear Floor Panel, LH $200.00 To Order
Photo Part No Description Price (each) Stock
4G43-46660-AA Foam Block, Parcel Shelf $21.93 To Order

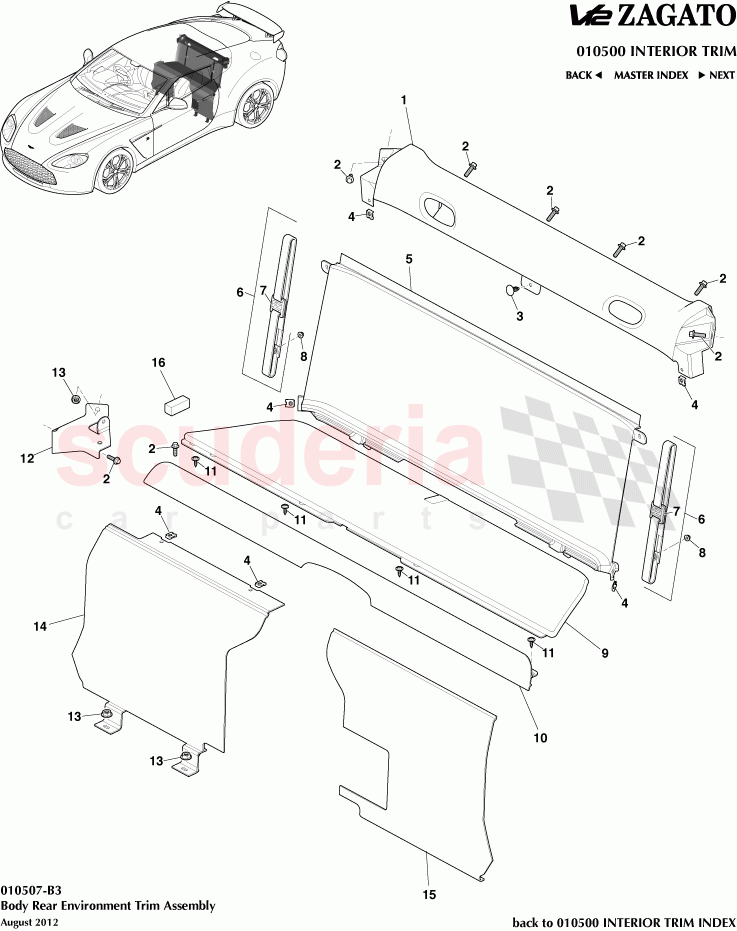

Body Rear Environment Trim Assembly of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CY83-60028-BAW
Trim Panel Assy, Bulkhead Centre Rear, Quilted
Includes Items 4,6 and 8 		- 1
PE
 Enquire
- 6G33-11587-BDW
DR ASSY STWG CMPT
Heavyweight Carpet 		$620.46 1
TO
- 6G33-674A06-BCW
PNL ASY RR HL BD RH
Heavyweight Carpet, Includes Item 4 		$491.98 1
TO
- 6G33-275A08-BBW
CUR ASSY RR FCR TR
Heavyweight Carpet 		$219.37 1
TO
1 8G33-674A09-ABW
Finisher, Cabin Rear Upper
Includes item 4 		- 1
PE
 Enquire
2 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.20 10
IN
3 4G43-MXC1800-AA-PK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
Pack of 20
IN STOCK 		$8.41 1
IN
4 701448
Spring Nut, U Type, 4.2 x 2.1
IN STOCK 		$1.18 6
IN
5 CY83-60028-AAW
Trim Panel Assy, Bulkhead Centre Rear, Plain
Includes Items 4,6 and 8 		$5,935.16 1
TO
6 CY83-31470-AAW
Retention Strap Assy, Bulkhead Rear 		- 2
PE
 Enquire
7 CY83-431C34-AA
Buckle Badge 		$470.52 2
TO
8 702522
M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT 		$0.59 2
TO
9 AD23-11587-AAW
Door Assy, Stowage Compartment
Lightweight Carpet 		$1,101.56 1
TO
10 6G33-674A08-AB
Finisher, Rear Cabin 		$115.09 1
TO
11 701157-PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10
IN STOCK 		$2.65 4
IN
12 6G33-314A96-AC
BRACKET ASSY QTR REAR PANEL 		$36.79 1
TO
13 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$1.00 3
IN
14 AD23-674A06-AAW
Panel Assy, Rear Heel Board, RH
Lightweight Carpet, Includes Item 4 		- 1
PE
 Enquire
15 AD23-275A08-BAW
Cover Assy, Rear Floor Panel, LH
Lightweight Carpet 		$200.00 1
TO
16 4G43-46660-AA
Foam Block, Parcel Shelf 		$21.93 1
TO
