Aston Martin Rapide - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43-3K186-AC KNL ASY-FRT WHL RH $2,492.23 To Order

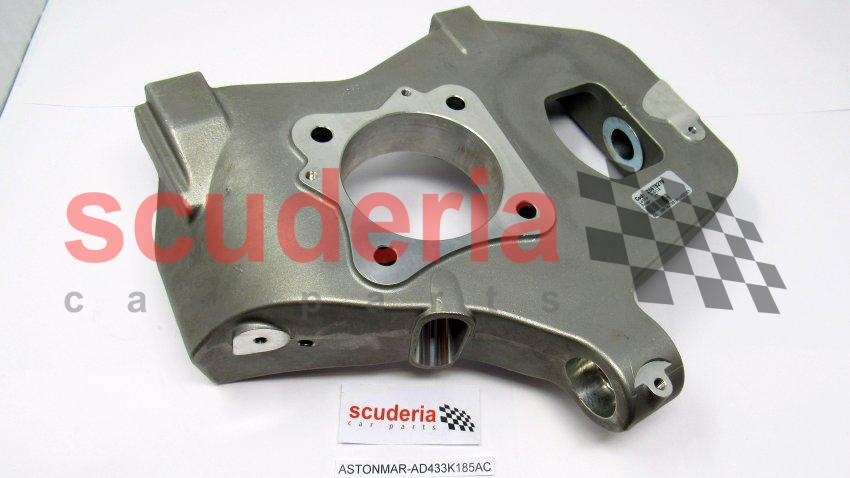

AD43-3K185-AC KNL ASY-FRT WHL LH $2,492.23 To Order
Photo Part No Description Price (each) Stock
AD43-2B663-AA Suspension Hub and Bearing $865.43 To Order
Photo Part No Description Price (each) Stock
AG430783AAPK Screw with washer Enquire To Order
Photo Part No Description Price (each) Stock
AD43-3091-AA FRONT SUSPENSION LH UPPER ARM AND BUSH $668.92 IN STOCK
AD43-3084-AA FRONT SUSPENSION RH UPPER ARM AND BUSH $668.92 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.20 IN STOCK
Photo Part No Description Price (each) Stock
CG43-08024-AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.33 IN STOCK
Photo Part No Description Price (each) Stock
AD43-3A052-AA Arm & Bush, Front Suspension Lower, RH $1,365.43 To Order
AD43-3A053-AA Arm & Bush Front Suspension Lower LH $1,365.43 To Order
Photo Part No Description Price (each) Stock
4G43-3B236-BB Bolt M12 Eccentric Front $65.98 To Order
Photo Part No Description Price (each) Stock
4G43-3B237-BB Washer, M12, Eccentric $11.31 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B236-CB Bolt, M14, eccentric $27.69 To Order
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.32 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3B237-CA Washer, M14 eccentric $10.32 IN STOCK
Photo Part No Description Price (each) Stock
AD43-0907-AA NUT AND WASHER M14 HEX FL PT PLAS 10 $35.10 To Order
Front Suspension Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43-3K186-AC
KNL ASY-FRT WHL RH 		$2,492.23 1
TO
1 AD43-3K185-AC
KNL ASY-FRT WHL LH 		$2,492.23 1
TO
2 AD43-2B663-AA
Suspension Hub and Bearing 		$865.43 2
TO
3 AG430783AAPK
Screw with washer
Bearing to Knuckle 		- 8
PE
 Enquire
4 AD43-3091-AA
FRONT SUSPENSION LH UPPER ARM AND BUSH
IN STOCK 		$668.92 1
IN
4 AD43-3084-AA
FRONT SUSPENSION RH UPPER ARM AND BUSH
IN STOCK 		$668.92 1
IN
5 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.20 8
IN
6 CG43-08024-AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$6.33 4
IN
7 AD43-3A052-AA
Arm & Bush, Front Suspension Lower, RH 		$1,365.43 1
TO
7 AD43-3A053-AA
Arm & Bush Front Suspension Lower LH 		$1,365.43 1
TO
8 4G43-3B236-BB
Bolt M12 Eccentric Front 		$65.98 2
TO
9 4G43-3B237-BB
Washer, M12, Eccentric
IN STOCK 		$11.31 2
IN
10 4G43-3B236-CB
Bolt, M14, eccentric 		$27.69 2
TO
11 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.32 2
IN
12 4G43-3B237-CA
Washer, M14 eccentric
IN STOCK 		$10.32 2
IN
13 AD43-0907-AA
NUT AND WASHER M14 HEX FL PT PLAS 10 		$35.10 2
TO
