Name: Substraight, Instrument Panel
Rating: 5.0 (1 reviews)

View All

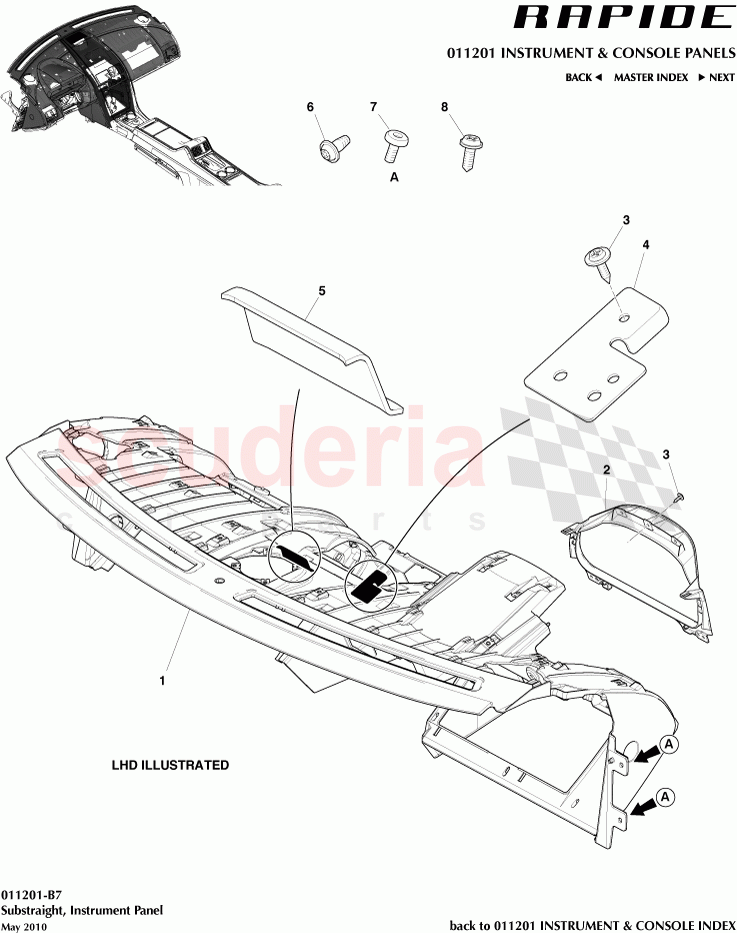

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4304305CAW	PANEL INSTRUMENT CENTRE LEATHER LH INNER EMBOSSED	$1,461.12	To Order
	AD4304304CAW	Substrate Assy, Instrument Panel- RHD	$1,824.13	To Order
	AD4304305BAW	Substrate Assy, Instrument Panel- LHD	$999.33	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43C04606AD	Bezel, Cluster Opening, Instrument Panel	$189.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	$2.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3319A392BB	Bracket, Phone Inline	$11.89	To Order

Photo	Part No	Description	Price (each)	Stock
	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	$31.59	To Order

Photo	Part No	Description	Price (each)	Stock
	703170	SCREW 4x8 PAN T/H CHROME FREE	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	$0.95	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AD4304305CAW	PANEL INSTRUMENT CENTRE LEATHER LH INNER EMBOSSED	AD4304305CAW PANEL INSTRUMENT CENTRE LEATHER LH INNER EMBOSSED -Embossed leather	$1,461.12	1
1	AD4304304CAW	Substrate Assy, Instrument Panel- RHD	AD4304304CAW Substrate Assy, Instrument Panel- RHD -Embossed leather	$1,824.13	1
1	AD4304305BAW	Substrate Assy, Instrument Panel- LHD	AD4304305BAW Substrate Assy, Instrument Panel- LHD -Semi analine	$999.33	1
1	AD4304304BAW	Substrate Assy, Instrument Panel- RHD	AD4304304BAW Substrate Assy, Instrument Panel- RHD -Semi analine	$999.33	1
2	4G43C04606AD	Bezel, Cluster Opening, Instrument Panel IN STOCK	4G43C04606AD Bezel, Cluster Opening, Instrument Panel IN STOCK	$189.26	1
3	701157PK	Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	701157PK Screw & Washer 4.2 x 16 (Pack of 10) IN STOCK	$2.65	35
4	6G3319A392BB	Bracket, Phone Inline	6G3319A392BB Bracket, Phone Inline	$11.89	1
5	7784981PK	Tape, Anti Rattle Rear Quarter Wheel	7784981PK Tape, Anti Rattle Rear Quarter Wheel	$31.59	1
6	703170	SCREW 4x8 PAN T/H CHROME FREE IN STOCK	703170 SCREW 4x8 PAN T/H CHROME FREE IN STOCK	$2.16	2
7	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL	$1.84	11
8	707613	SCREW M4.2 X 13 FLANGE BLACK IN STOCK	707613 SCREW M4.2 X 13 FLANGE BLACK IN STOCK	$0.95	7
