Aston Martin Rapide - Transaxle Cooling Pipes (Auto)

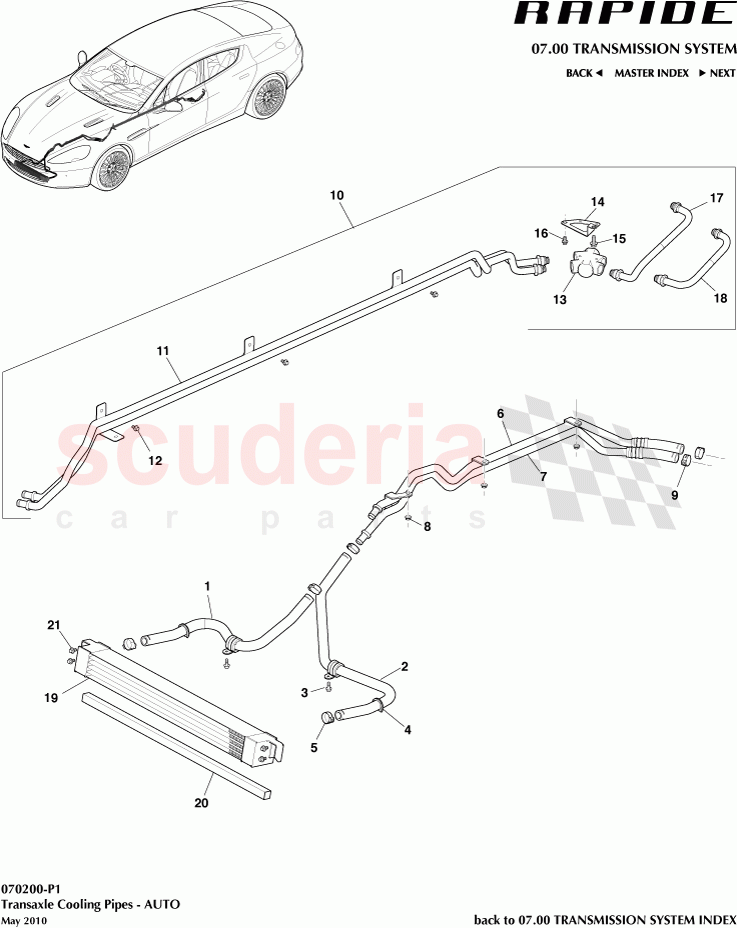

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G43-7F120-AA HOSE - AIR/OIL ASSY COOLER OUTLET $146.09 To Order
Photo Part No Description Price (each) Stock
9G43-7F120-BA HOSE - AIR/OIL ASSY COOLER INLET $206.10 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Photo Part No Description Price (each) Stock
9G43-7R041-AA SEAL HOSE TRANS OIL COOLER $19.15 To Order
Photo Part No Description Price (each) Stock
9G43-8777-CA CLAMP HOSE OETIKER 025.5-1008R $6.48 IN STOCK
Photo Part No Description Price (each) Stock
9G43-7W093-AA PIPE ASSEMBLY ENGINE BAY INLET $146.94 To Order
Photo Part No Description Price (each) Stock
9G43-7W093-BA PIPE ASSEMBLY ENGINE BAY OUTLET $220.90 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.00 IN STOCK
Photo Part No Description Price (each) Stock
9G43-8777-CA CLAMP HOSE OETIKER 025.5-1008R $6.48 IN STOCK
Photo Part No Description Price (each) Stock
AD23321363AA Oil Pipe Assy Enquire To Order
Photo Part No Description Price (each) Stock
9G437D353AA Tube & Bracket Assembly, Transmission Oil Enquire To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G43-6L635-AA Thermostat, Transmission Oil Control $1,072.25 To Order
Photo Part No Description Price (each) Stock
4G436A626AA Bracket, Oil pipe $108.24 To Order
Photo Part No Description Price (each) Stock
703189 BOLT M8x16 HEX FLG CHROME FREE $0.35 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G4335568BA Pipe, Transmission Oil Inlet Enquire To Order
Photo Part No Description Price (each) Stock
4G4335568AA Pipe, Transmission Oil Outlet Enquire To Order
Photo Part No Description Price (each) Stock
9G43-445396-CA MATRIX OIL COOLER $1,204.44 To Order
Photo Part No Description Price (each) Stock
32-85306 Seal, Radiator Upper $16.75 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Transaxle Cooling Pipes (Auto) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G43-7F120-AA
HOSE - AIR/OIL ASSY COOLER OUTLET
incl. P clips 		$146.09 1
TO
2 9G43-7F120-BA
HOSE - AIR/OIL ASSY COOLER INLET
incl. P clips 		$206.10 1
TO

703265

SCREW, M6 X 16, HEX FLANGE HEAD

from $0.34

4 9G43-7R041-AA
SEAL HOSE TRANS OIL COOLER 		$19.15 2
TO

9G43-8777-CA

CLAMP HOSE OETIKER 025.5-1008R

from $6.48

6 9G43-7W093-AA
PIPE ASSEMBLY ENGINE BAY INLET 		$146.94 1
TO
7 9G43-7W093-BA
PIPE ASSEMBLY ENGINE BAY OUTLET 		$220.90 1
TO
8 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$1.00 3
IN
10 AD23321363AA
Oil Pipe Assy 		- 1
PE
 Enquire
11 9G437D353AA
Tube & Bracket Assembly, Transmission Oil 		- 1
PE
 Enquire

700606

SCREW, M6 X 12, HEX FLANGE HEAD

from $0.20

13 4G43-6L635-AA
Thermostat, Transmission Oil Control 		$1,072.25 1
TO
14 4G436A626AA
Bracket, Oil pipe 		$108.24 1
TO
15 703189
BOLT M8x16 HEX FLG CHROME FREE 		$0.35 1
TO
17 4G4335568BA
Pipe, Transmission Oil Inlet 		- 1
PE
 Enquire
18 4G4335568AA
Pipe, Transmission Oil Outlet 		- 1
PE
 Enquire
19 9G43-445396-CA
MATRIX OIL COOLER 		$1,204.44 1
TO
20 32-85306
Seal, Radiator Upper 		$16.75 1
TO
