Aston Martin Rapide - Rear Brake Sub System

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43-2C026-AC BRAKE DISC REAR $742.04 To Order
AD43-2C026-AC BRAKE DISC REAR $742.04 To Order
Photo Part No Description Price (each) Stock
4G43-2N389-AA Screw, M8 x 14, Flat Head Countersunk $0.27 IN STOCK
Photo Part No Description Price (each) Stock
AD43-2C465-EA RR LH SILVER CALIPER ASSY W/OUT PADS $605.61 To Order
AD43-2C464-EA RR RH SILVER CALIPER ASSY W/OUT PADS $605.61 To Order
AD43-2C465-CA RR LH BLK CALIPER ASSY W/OUT PADS $566.91 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D33-2C564-AA Brake Bolt, M12 x 95, Caliper to Knuckle $10.52 To Order
Photo Part No Description Price (each) Stock
AD43-2C562-AB BRAKE PAD KIT REAR $743.60 To Order
Photo Part No Description Price (each) Stock
AD43-2C588-BA REAR SPRING AND PIN PAD KIT $61.54 IN STOCK
Photo Part No Description Price (each) Stock
AD4332610AA Kit, dust boot, rear caliper $87.62 To Order
Photo Part No Description Price (each) Stock
4G43-33693-AA Cap, Bleed Screw $27.67 IN STOCK
4G43-2C563-AA Kit, Bleed Screw $16.83 IN STOCK
Photo Part No Description Price (each) Stock
AD43-2282-AB HOSE ASSY RR WHL BRK $77.70 To Order
AD43-2282-BB HOSE ASSY RR WHL BRK $93.15 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Photo Part No Description Price (each) Stock
6G33-2D009-AB Pad Wear Lead, Rear $59.45 IN STOCK
Photo Part No Description Price (each) Stock
8D33-2C029-AA SHIELD - REAR BRAKE DISC LH $58.79 To Order
8D33-2C028-AA SHIELD - REAR BRAKE DISC RH $58.79 IN STOCK
4G43-13D026-AA Screw, retaining disc shield $0.62 IN STOCK

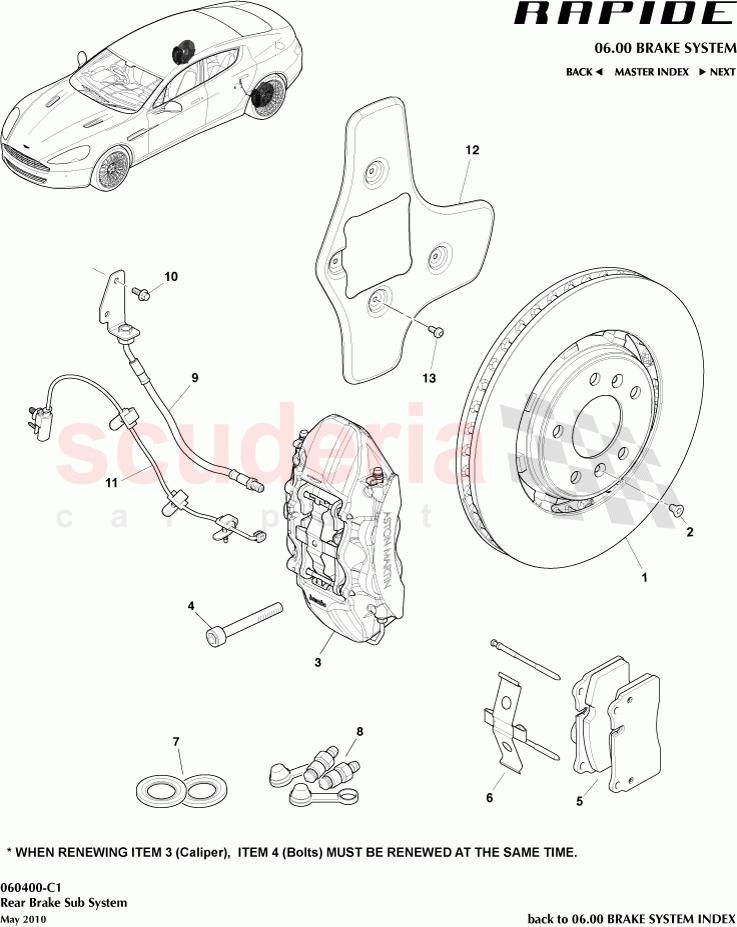

Rear Brake Sub System of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

AD43-2C026-AC

BRAKE DISC REAR

from $742.04

2 4G43-2N389-AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.27 4
IN
3 AD43-2C465-EA
RR LH SILVER CALIPER ASSY W/OUT PADS
Silver 		$605.61 1
TO
3 AD43-2C464-EA
RR RH SILVER CALIPER ASSY W/OUT PADS
Silver 		$605.61 1
TO
3 AD43-2C465-CA
RR LH BLK CALIPER ASSY W/OUT PADS
Black 		$566.91 1
TO
3 AD43-2C464-CA
RR RH BLK CALIPER ASSY W/OUT PADS
Black 		$566.91 1
TO
3 AD43-2C465-AA
RR LH GREY CALIPER ASSY W/OUT PADS
Grey 		$605.61 1
TO
3 AD43-2C464-AA
RR RH GREY CALIPER ASSY W/OUT PADS
Grey 		$605.61 1
TO
3 AD43-2C465-DA
RR LH RED CALIPER ASSY W/OUT PADS
Red 		$605.61 1
TO
3 AD43-2C464-DA
RR RH RED CALIPER ASSY W/OUT PADS
Red 		$605.61 1
TO
4 8D33-2C564-AA
Brake Bolt, M12 x 95, Caliper to Knuckle 		$10.52 4
TO
5 AD43-2C562-AB
BRAKE PAD KIT REAR
per Axle Set 		$743.60 1
TO
6 AD43-2C588-BA
REAR SPRING AND PIN PAD KIT
Per Caliper
IN STOCK 		$61.54 1
IN
7 AD4332610AA
Kit, dust boot, rear caliper
Per Caliper 		$87.62 2
TO
8 4G43-33693-AA
Cap, Bleed Screw
Per Caliper
IN STOCK 		$27.67 1
IN
8 4G43-2C563-AA
Kit, Bleed Screw
Per Caliper
IN STOCK 		$16.83 2
IN
9 AD43-2282-AB
HOSE ASSY RR WHL BRK 		$77.70 2
TO
9 AD43-2282-BB
HOSE ASSY RR WHL BRK 		$93.15 2
TO
10 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.34 2
IN
11 6G33-2D009-AB
Pad Wear Lead, Rear
IN STOCK 		$59.45 2
IN
12 8D33-2C029-AA
SHIELD - REAR BRAKE DISC LH 		$58.79 1
TO
12 8D33-2C028-AA
SHIELD - REAR BRAKE DISC RH
IN STOCK 		$58.79 1
IN
12 4G43-13D026-AA
Screw, retaining disc shield
IN STOCK 		$0.62 8
IN
