Steering Column Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Steering Column Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-14-6850-AA Shroud Assy, steering column upper, RHD Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6852-AA Shroud Assy, steering column lower, RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33-3E721-AB Plate, steering column, load spread $10.03 To Order
Photo Part No Description Price (each) Stock
4G43-3L508-AA Insulation, fill plate $323.45 To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head $0.12 To Order
Photo Part No Description Price (each) Stock
702289 SCREW M4x16 THREAD FORMING $0.44 IN STOCK
Photo Part No Description Price (each) Stock
701440 Screw Self Tapping Washer Head 4.2 x 9.5 $0.12 IN STOCK
Photo Part No Description Price (each) Stock
AD43-3C529-AB Column Assy, Electric with Isolator $1,538.62 To Order
Photo Part No Description Price (each) Stock
701353 Screw, M8 x 30 Pan Head, Torx Drive $1.23 To Order
Photo Part No Description Price (each) Stock
4G43-3F818-AB SNS ASY - STNG ROT $352.61 To Order
Photo Part No Description Price (each) Stock
4G43-ALR3219-BA Bracket, Steering Angle Sensor Mounting $4.12 To Order
Photo Part No Description Price (each) Stock
707158 Screw & Washer, M3.5 x 13, Flange Pan Head $1.16 IN STOCK
Photo Part No Description Price (each) Stock
4G43-3D677-BA Gaiter, Steering Column, RHD $55.36 To Order
Photo Part No Description Price (each) Stock
91963 STEERING COLUMN ASSY $4,680.92 To Order
Photo Part No Description Price (each) Stock
4G43-3C684-AB Bolt, M8 x 30, Hex Head Flange, Patch $3.01 IN STOCK
Photo Part No Description Price (each) Stock
703138-PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10 $6.57 To Order
Photo Part No Description Price (each) Stock
4G43-3N997-BA Coupling, steering column shaft Enquire To Order
Photo Part No Description Price (each) Stock
701355 Screw, M10 x 21.8, Pan Head, Pilot $1.20 To Order

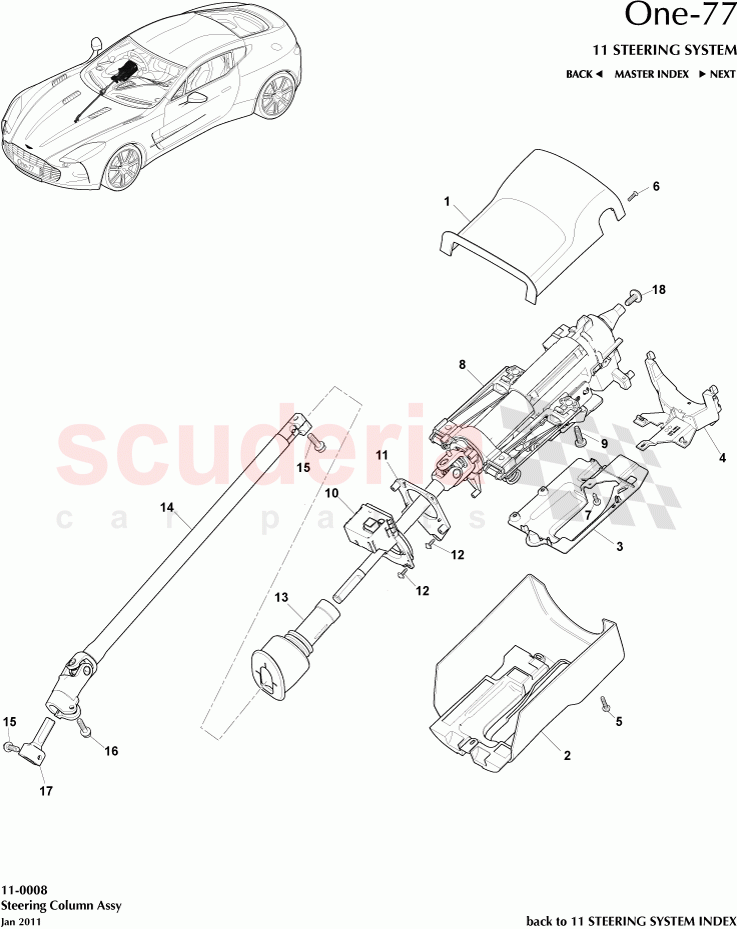

Steering Column Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43-3D677-AA
Gaiter, Steering Column, LHD 		$56.51 1
TO
- 12023-11-1058-AB
Shaft Assy, steering column lower, LHD 		$466.27 1
TO
1 12023-14-6850-AA
Shroud Assy, steering column upper, RHD 		- 1
PE
 Enquire
2 12023-14-6852-AA
Shroud Assy, steering column lower, RHD 		- 1
PE
 Enquire
3 8D33-3E721-AB
Plate, steering column, load spread 		$10.03 1
TO
4 4G43-3L508-AA
Insulation, fill plate
Non Auto 		$323.45 1
TO
5 703736
Screw Self Tapping, 4.2 x 19, Washer Head 		$0.12 3
TO
6 702289
SCREW M4x16 THREAD FORMING
IN STOCK 		$0.44 4
IN
7 701440
Screw Self Tapping Washer Head 4.2 x 9.5
IN STOCK 		$0.12 1
IN
8 AD43-3C529-AB
Column Assy, Electric with Isolator 		$1,538.62 1
TO
9 701353
Screw, M8 x 30 Pan Head, Torx Drive 		$1.23 4
TO
10 4G43-3F818-AB
SNS ASY - STNG ROT 		$352.61 1
TO
11 4G43-ALR3219-BA
Bracket, Steering Angle Sensor Mounting 		$4.12 1
TO
12 707158
Screw & Washer, M3.5 x 13, Flange Pan Head
IN STOCK 		$1.16 1
IN
13 4G43-3D677-BA
Gaiter, Steering Column, RHD 		$55.36 1
TO
14 91963
STEERING COLUMN ASSY 		$4,680.92 1
TO
15 4G43-3C684-AB
Bolt, M8 x 30, Hex Head Flange, Patch
IN STOCK 		$3.01 2
IN
16 703138-PK
BOLT-M8x25 PATCH CHROME FREE PACK OF 10 		$6.57 1
TO
17 4G43-3N997-BA
Coupling, steering column shaft 		- 1
PE
 Enquire
18 701355
Screw, M10 x 21.8, Pan Head, Pilot 		$1.20 1
TO
